7. MAINTENANCE HI ROLLER - BELT CONVEYORS
7.2. BELT TRACKING GUIDE HI ROLLER, MINI ROLLER, LO ROLLER & HI LIFE
88 P115506 R3

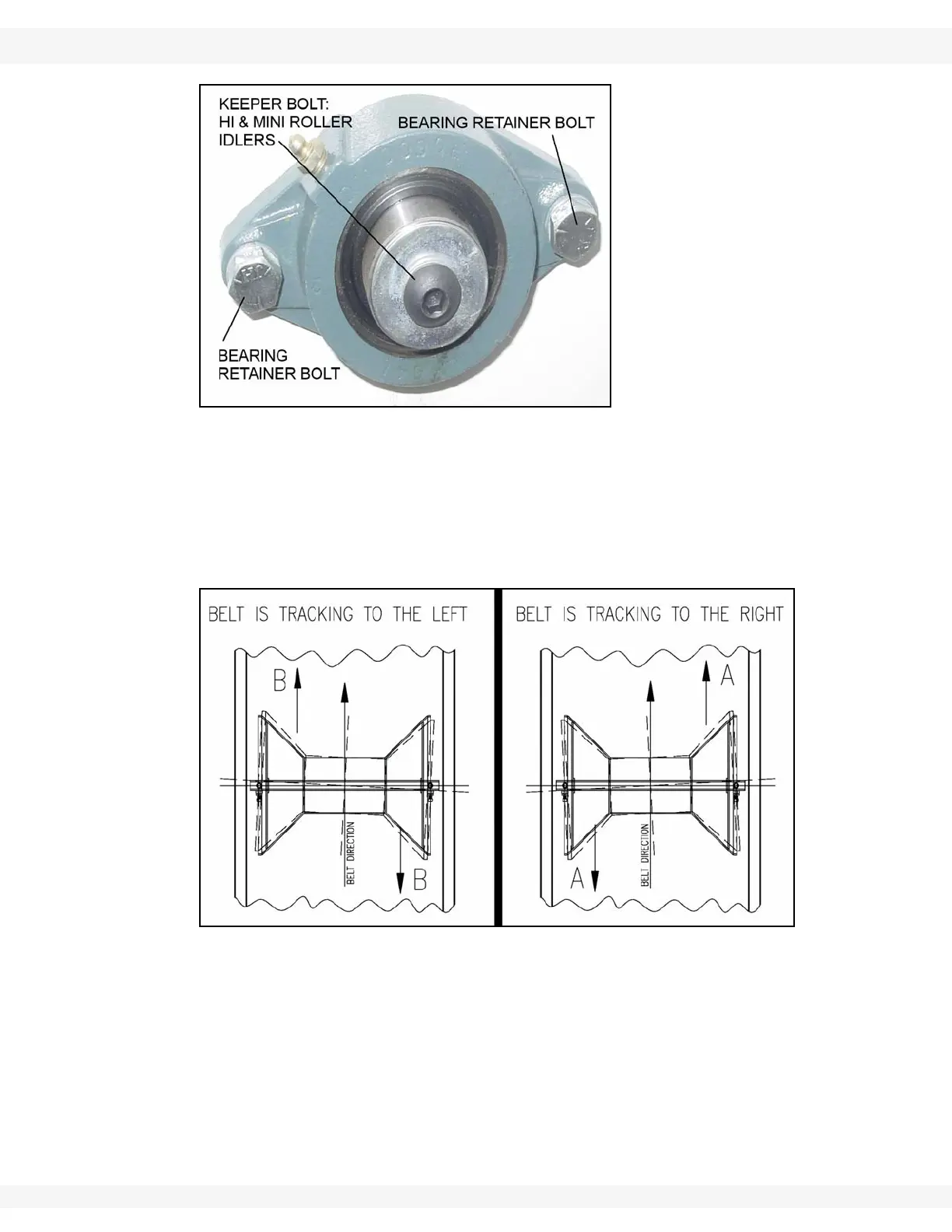

Figure 7.3
4. If the belt is tracking to the right in the conveyor, the end of the idler should be
shifted in "A" position. If the belt is tracking to the left, shift the end of the idler
in the "B" position. See Figure 7.4. Remember, the belt will move toward the
end of the idler that the belt first contacts.
Note: "Right" or "Left" is determined by standing at the tail section and looking toward
the head section of the conveyor.
Figure 7.4
5. Test-run the conveyor both empty and properly loaded. Continue the training
process until the desired training is achieved.
6. If adjusting the bearings on one side of the conveyor does not achieve proper
training, repeat the procedure on the opposite side of the conveyor.
