1260 Infinity Micro Degasser Service Manual
67
Repairs
8
Overview of Internal Parts

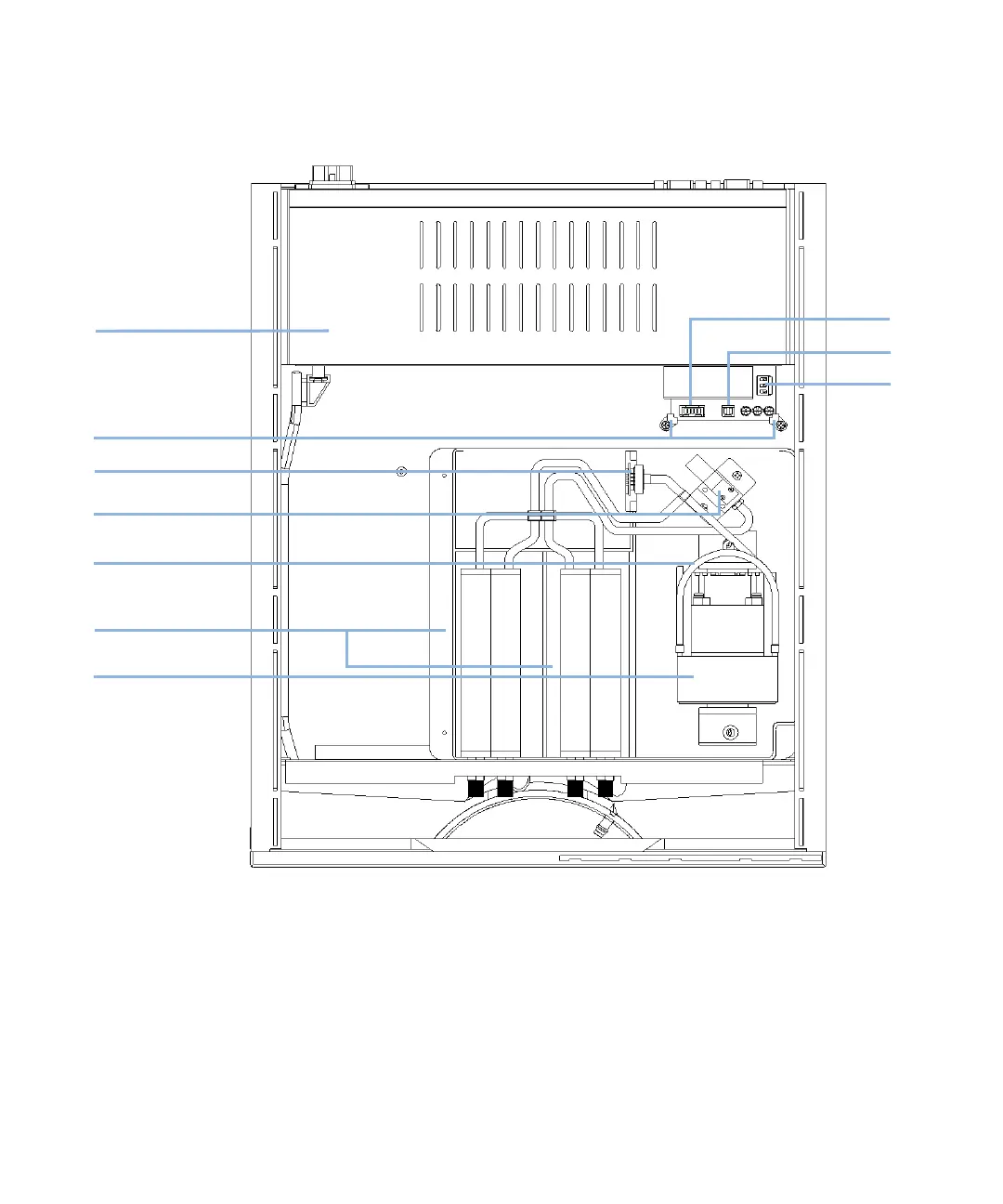

Figure
14
T
op V
iew of the Micro V
acuum Degasser
K
VXjjbX]VbWZg
HZchdgVhhZbWan
8dcigdaVhhZbWan
8C+
8C(
8C'
7dVgYXa^e
K
VXjjbijWZ
K
VXjjbejbe
kVakZ
Egdedgi^dcVa
66
68
Table of Contents
Table of Contents
3
1 Introduction
5
Introduction to the Micro Vacuum Degasser
6
2 Site Requirements and Specifications
7
Site Requirements
8
Physical Specifications
11
Performance Specifications
12
3 Installing the Micro Vacuum Degasser
13
Unpacking the Micro Vacuum Degasser
14
Accessory Kit Contents
14
Optimizing the Stack Configuration
16
Installing the Micro Vacuum Degasser
19
Flow Connections to the Micro Vacuum Degasser
21
Operational Hints for the Micro Vacuum Degasser
24
General Priming Instructions
24
Priming the Degasser
24
Priming with a Syringe (Only Recommended if Priming with the Pump Fails)
25
Transporting the Micro Vacuum Degasser
27
4 Using the Micro Vacuum Degasser
29
When to Use a Micro Vacuum Degasser
30
Prevent Blocking of Solvent Filters
32
Solvent Information
34
Material Information
34
5 Optimizing Performance Increasing the Degasser Performance and Degassing Level
42
6 Troubleshooting and Diagnostics
43
Overview of the Degasser's Indicators
44
Status Indicators
45
Instrument Status Indicator
45
Hardware Symptoms
47
All Lamps Are off
47
If the Status Indicator Is Red
48
If the Status Indicator Is Yellow and the Vacuum Pump Is Not Running
48
Status Indicator Becomes Red and Vacuum Pump was Running
49
7 Maintenance
51
Introduction to Maintenance and Repair
52
Simple Repairs
52
Warnings and Cautions
53
Cleaning the Instrument
54
Removing and Refitting the Top Cover
55
Assembling the Main Cover
58
Exchanging the Fuses of the Power Inline Filter
60
Exchanging the Status Light Pipe
62
8 Repairs
63
Exchanging Internal Parts
64
Overview of Repair Procedures
65
Overview of Internal Parts
66
Exchanging a Vacuum Chamber
68
Exchanging the Vacuum Pump
70
Exchanging the Proportional Valve
72
Exchanging the Vacuum Tubings
74
Exchanging the Degasser Control Assembly and the Sensor Assembly
76
9 Parts and Materials for Maintenance
79
Default Chapter
80
Cover Parts
80
Sheet Metal Kit
81
Power and Status Light Pipes
82
Accessory Kit
83
10 Parts for Repair
85
Micro Vacuum Degasser Parts
86
11 Cable Overview
89
Overview
90
Remote Cable
92
12 Hardware Information
95
Operating Principle
96
13 Appendix
97
General Safety Information
98
The Waste Electrical and Electronic Equipment "WEEE) Directive (2002/96/EC)
101
Radio Interference
102
Sound Emission
103
Agilent Technologies on Internet
104
