1260 Infinity Micro Degasser Service Manual 77
Repairs
8
Overview of Internal Parts
8 Loosen the clip of the sensor board and remove it from its slot in the
vacuum chamber.
9 Slide the new senor board into the slots of the vacuum chamber and
the fix the clip.
10 Place a new degasser control assembly into the unit and fix with the
four holding screws to the side panels.
11 Clip the power switch light pipe to the degasser control assembly power
switch.
12 Replace the two holding clips and fix the holding screws.
13 Connect all the cables to the control board (sensor assembly cable to
CN3, proportional valve cable to CN8, pump cable to CN1).
14 Refit the cover, see “Removing and Refitting the Top Cover” on page 55.

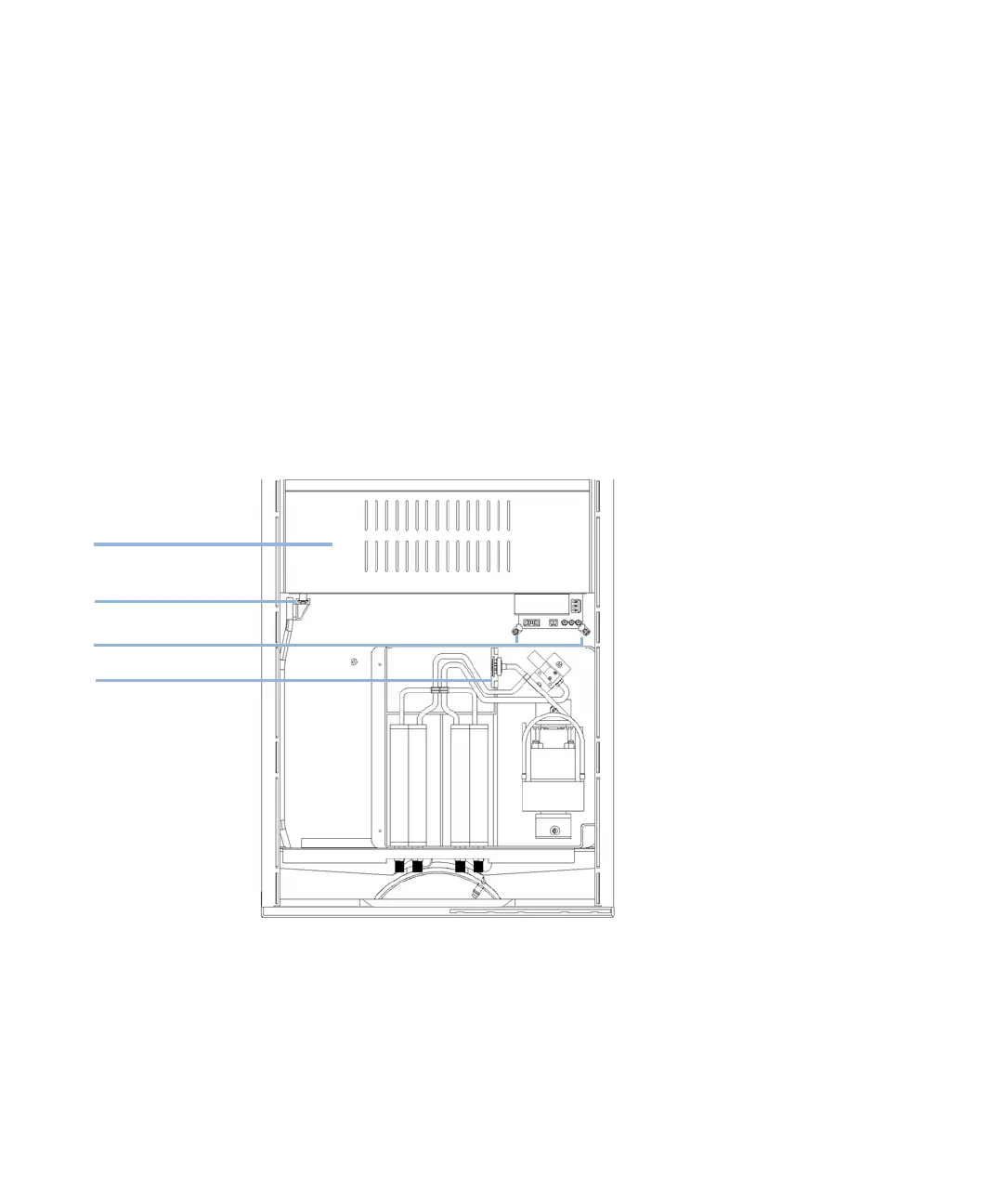

Figure 19 Exchanging the Degasser Control Assembly
