Agilent Technologies 34410A - To Measure DC Current; To Measure AC Current

24 34410A/11A User’s Guide
1 Quick Start

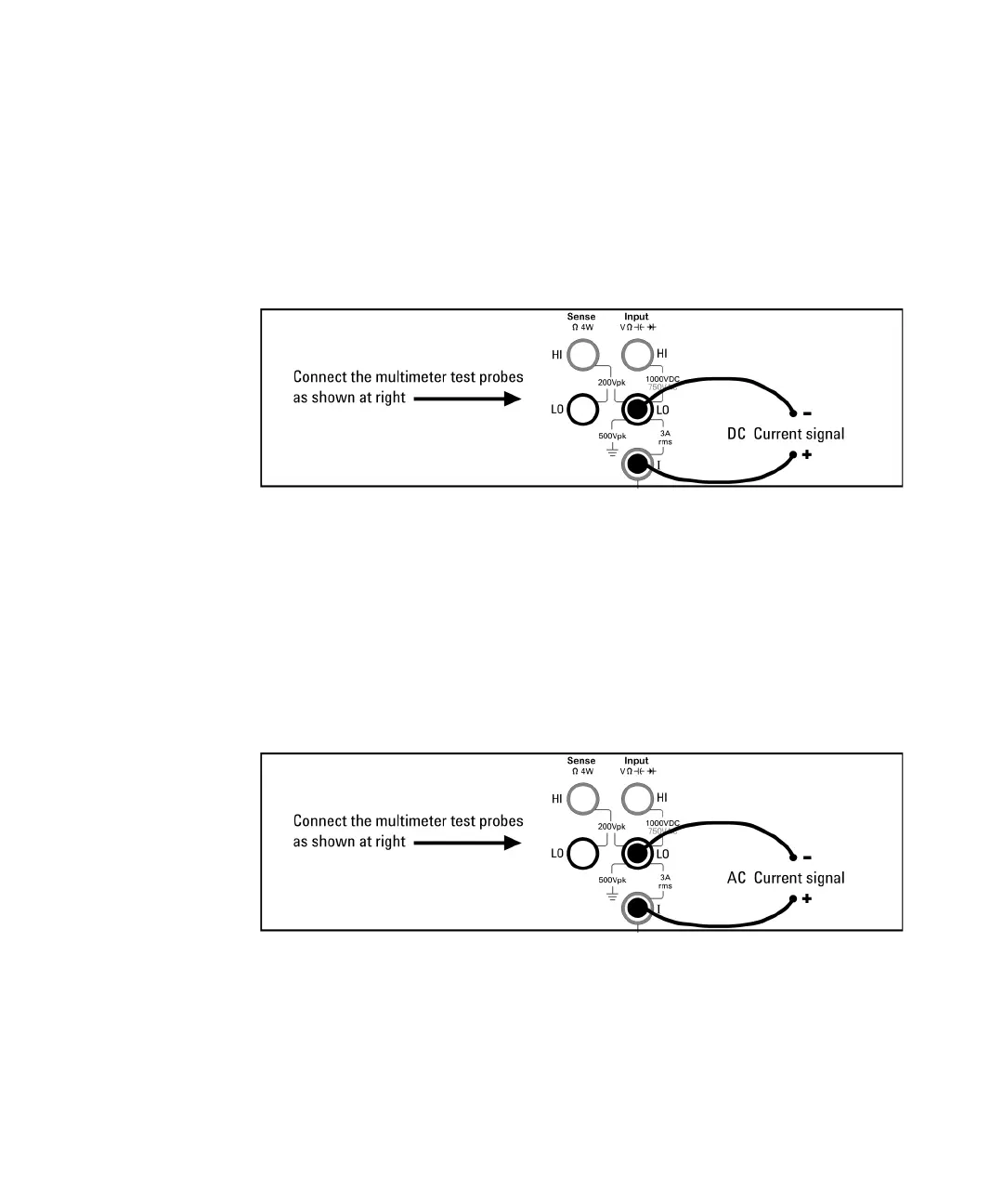

To Measure DC Current
• Ranges: 100 mA, 1 mA, 10 mA, 100 mA, 1A, 3A
• Maximum resolution: 10 nA (on 100 mA range)
• Configurable parameters: INTEGRATION, RANGE, AUTO ZERO, NULL, and NULL
VALUE
To Measure AC Current
• Ranges: 100 mA, 1 mA, 10 mA, 100 mA, 1A, 3A
• Maximum resolution: 100 nV (on 100 mV range)
• Resolution: Fixed at 6 1/2 digits
• AC Technique: true–RMS, ac–coupled
• Configurable parameters: AC FILTER, RANGE, NULL and NULL VALUE
