8 34410A/11A User’s Guide

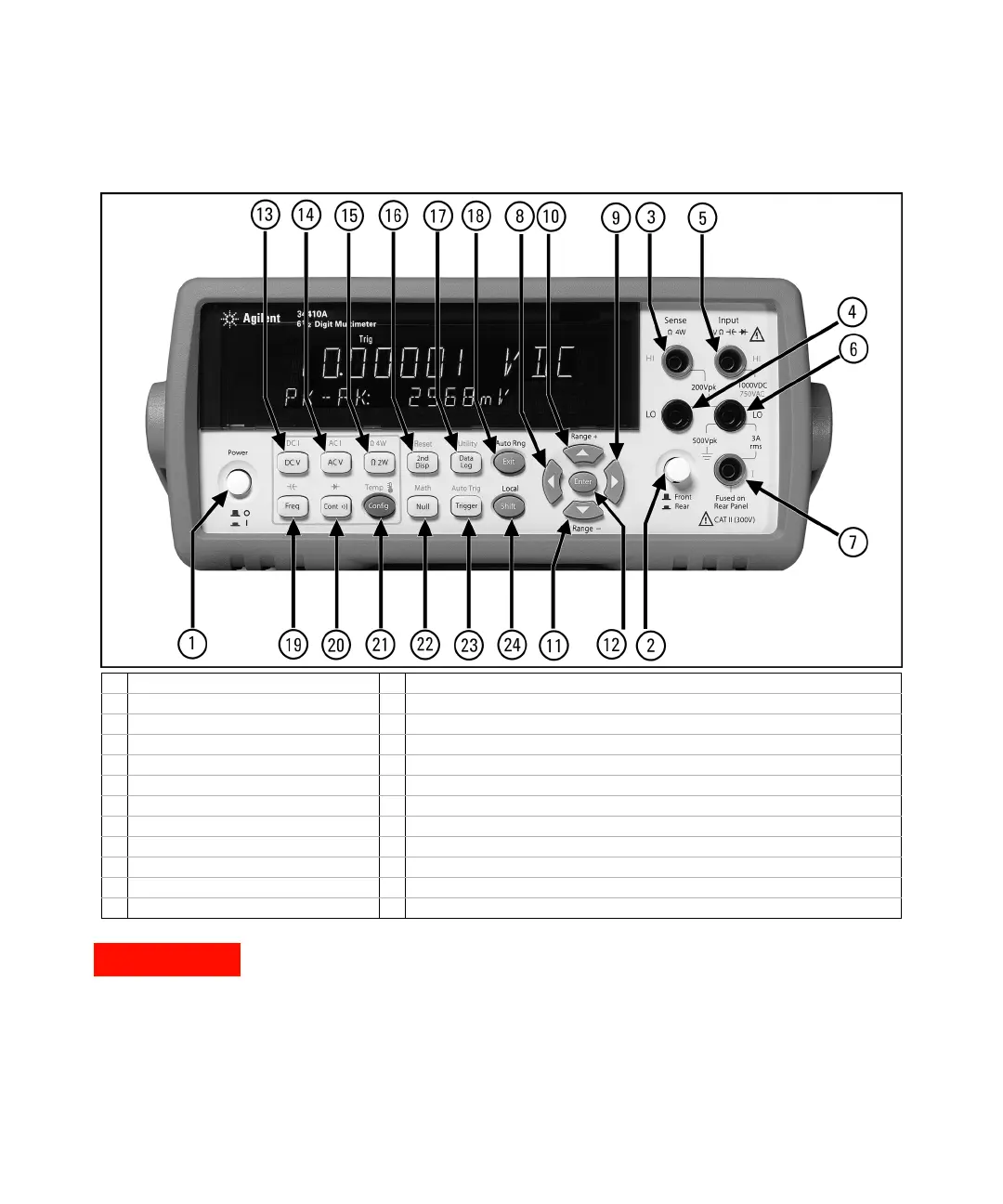

The Front Panel at a Glance
WARNING
Front/Rear Switch: Do not change the position of the Front/Rear switch on the front panel while signals are
present on either the front or rear set of terminals. This switch is not intended as an active multiplexer.
Switching while high voltages or currents are present may cause instrument damage and lead to the risk of
electric shock.
1 Multimeter On/Off Switch 13 DC Voltage measurement function key (shifted function: DC Current)
2 Front/Rear Terminal Selection Switch 14 AC Voltage measurement function key (shifted function: AC Current)
3 HI Sense Terminal (also 4-wire
Ω) 15 2-wire Ohms measurement function key (shifted function: 4-wire Ohms)
4 LO Sense Terminal (also 4-wire
Ω) 16 Second Display key (shifted function: Multimeter Reset)
5 HI Input terminal 17 Data Logger Function Key (shifted function: Utility Menu)
6 LO Input terminal 18 Exit key (when not in a menu, also toggles Auto Range function on/off)
7 Current Input terminal 19
Frequency/Period measurement function key (shifted function: Capacitance)
8 Left navigation key (< integration ) 20 Continuity measurement function key (shifted function: Diode Check)
9 Right navigation key (> integration) 21 Configuration Menu key (shifted function: Temperature)
10 Up navigation key (> range) 22 Null function key (shifted function: Math Menu)
11 Down navigation key (< range) 23 Trigger key (shifted function: Auto Trigger Menu)
12 Enter key 24 Shift key (also returns multimeter from remote to Local operation)
