Agilent Technologies 34410A - To Measure Capacitance

34410A/11A User’s Guide 27
Quick Start 1

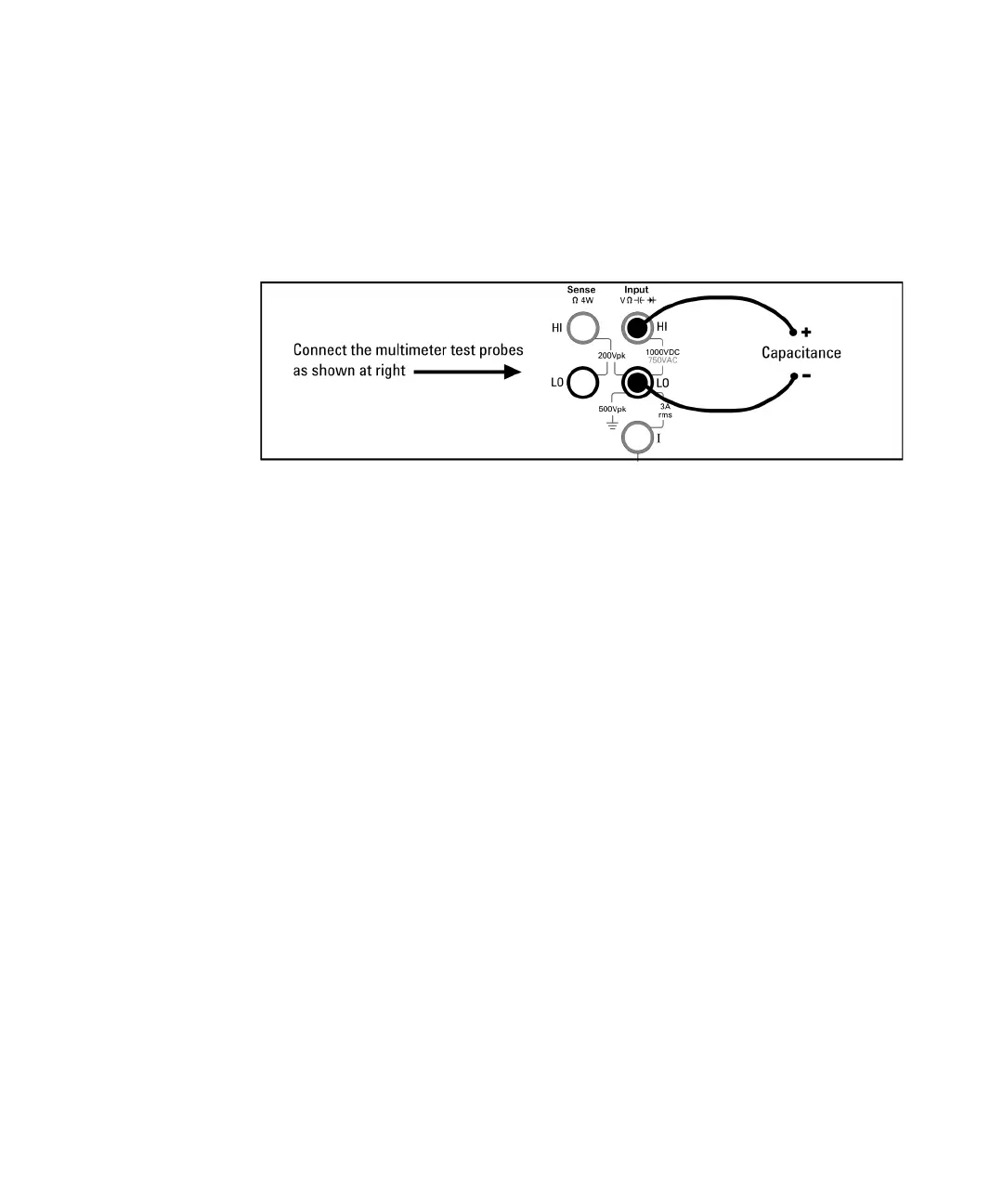

To Measure Capacitance
• Ranges: 1 nF, 10 nF, 100 nF, 1 mF, 10 mF
• Maximum resolution: 100 pF (on 1 nF range)
• Configurable parameters: RANGE, NULL, and NULL VALUE
To null–out the test lead capacitance:
1 Disconnect the + lead’s probe end from the test circuit, and leave open.
2 Press null.
3 Reconnect the + lead’s probe end to the test circuit, and measure the
corrected capacitance value.
