26 34410A/11A User’s Guide
1 Quick Start

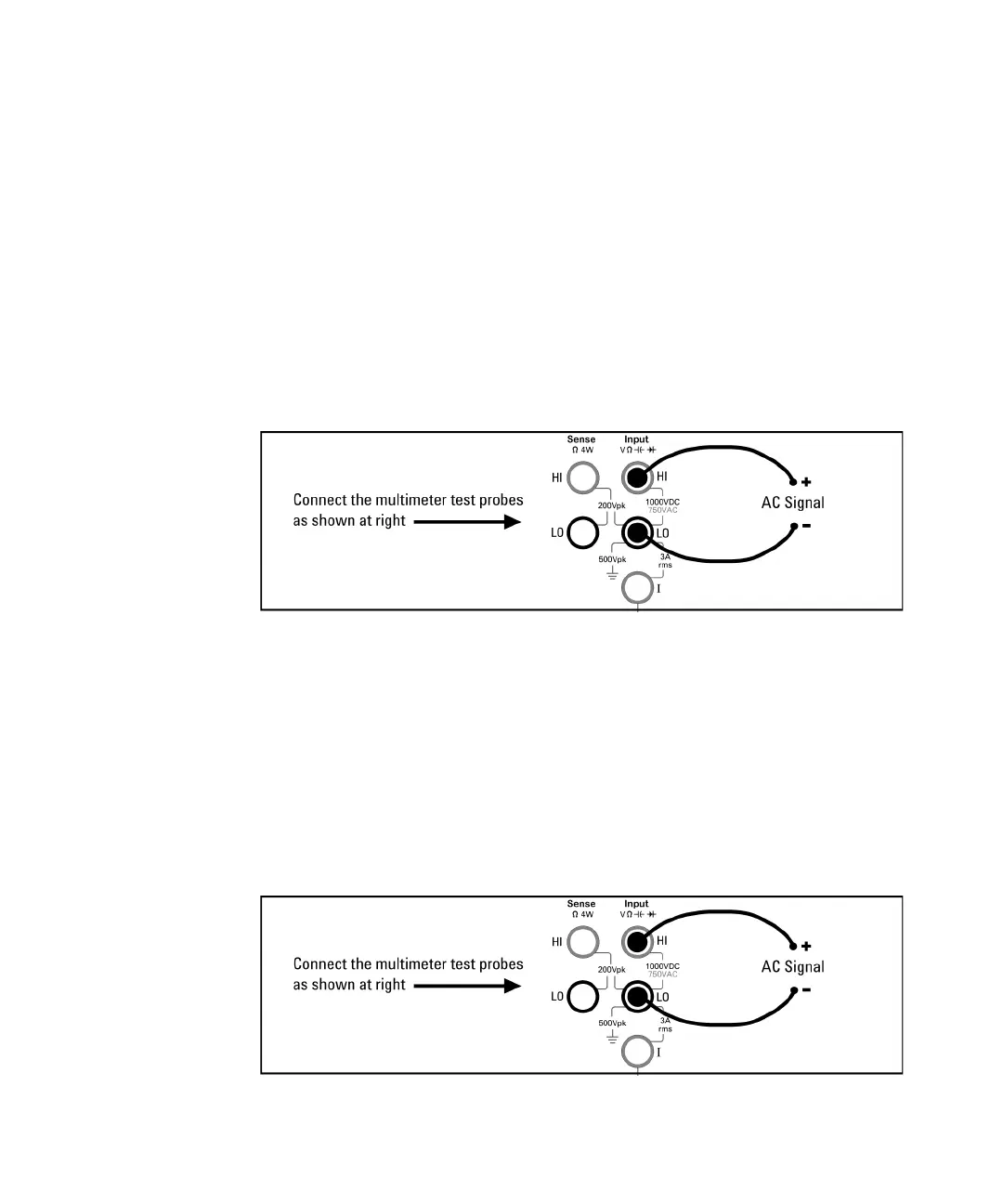

To Measure Frequency
• Measurement band: 3Hz to 300 kHz (0.33 sec to 3.3 msec)
• Input signal range: 100 mVAC to 750 VAC
• Maximum resolution:
• 0.1 ppm for 1 sec gate time
• 1 ppm for 100 ms gate time
• 10 ppm for 10 ms gate time
• 100 ppm for 1 ms gate time
• Technique: reciprocal counting
• Configurable parameters: GATE TIME, RANGE, AC FILTER, NULL and NULL VALUE
To Measure Period
• Measurement band: (0.33 sec to 3.3 msec)
• Input signal range: 100 mVAC to 750 VAC
• Maximum resolution:
• 0.1 ppm for 1 sec gate time
• 1 ppm for 100 ms gate time
• 10 ppm for 10 ms gate time
• 100 ppm for 1 ms gate time
• Technique: reciprocal counting
• Configurable parameters: GATE TIME, RANGE, AC FILTER, NULL and NULL VALUE
