Agilent Technologies 4349B User Manual

4349B
High Throughput
Measurement
This
section
shows
the
high throughput
measurement example
of the
capacitors insulation
resistance
test
using
the
4349B,
an external
voltage source
,and
a handler
.
1.
Set up
the measurement
systems
.
Figure
6-3
shows
the
typical
system.
Refer
to
\
Installation
"
in
Chapter
2
for
information
on
setting
up
the
system.

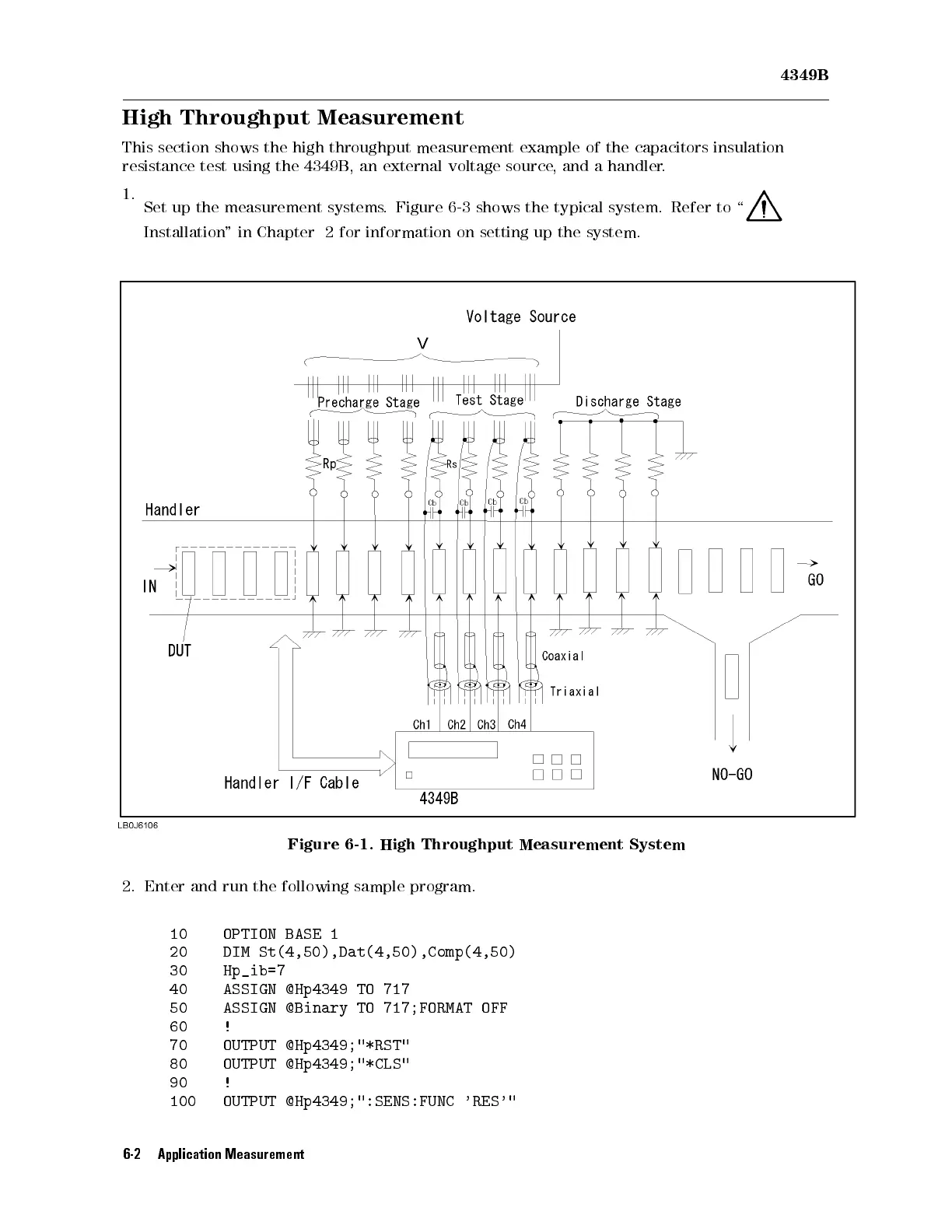

Figure 6-1. High Throughput
Measurement System
2. Enter and run the following sample program.
10 OPTION BASE 1
20 DIM St(4,50),Dat(4,50),Comp(4,50)
30
Hp_ib=7
40 ASSIGN
@Hp4349 TO 717
50 ASSIGN @Binary TO 717;FORMAT OFF
60 !
70 OUTPUT @Hp4349;"*RST"
80 OUTPUT @Hp4349;"*CLS"
90 !
100 OUTPUT @Hp4349;":SENS:FUNC 'RES'"
6-2 Application Measurement
