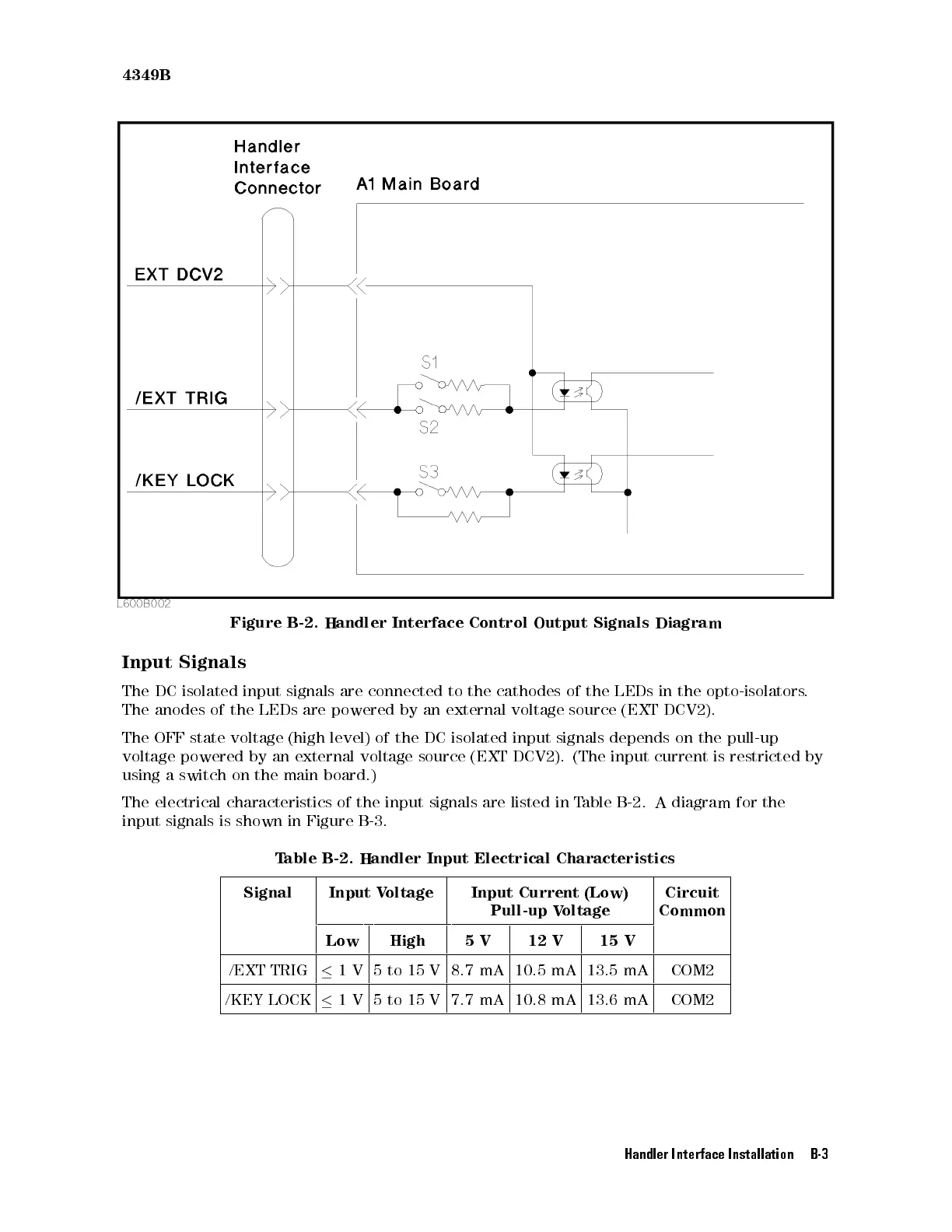

Figure
B-2.
Handler Interface
Control
Output
Signals
Diagram
Input
Signals
The
DC
isolated
input
signals
are
connected
to
the
cathodes of
the LEDs
in
the
opto-isolators
.
The
anodes
of
the
LEDs
are
powered
by
an
external voltage
source (EXT
DCV2).
The
OFF
state
voltage
(high
level)
of
the
DC
isolated input
signals depends
on the
pull-up
voltage
powered
by
an
external
voltage
source
(EXT
DCV2).
(The input
current is
restricted by
using
a
switch
on
the
main
board.)
The
electrical characteristics
of the
input signals
are listed
in
T
able
B-2
.
A
diagram
for
the
input
signals is
shown in
Figure B-3
.
Table B-2. Handler Input Electrical Characteristics
Signal Input V
oltage
Input Current (Low)
Pull-up V
oltage
Circuit
Common
Low High 5V 12 V 15 V
/EXT TRIG  1V 5to15V 8.7mA 10.5mA 13.5mA COM2
/KEY LOCK  1V 5to15V 7.7mA 10.8mA 13.6mA COM2
Handler Interface Installation B-3
