4349B
Front P
anel

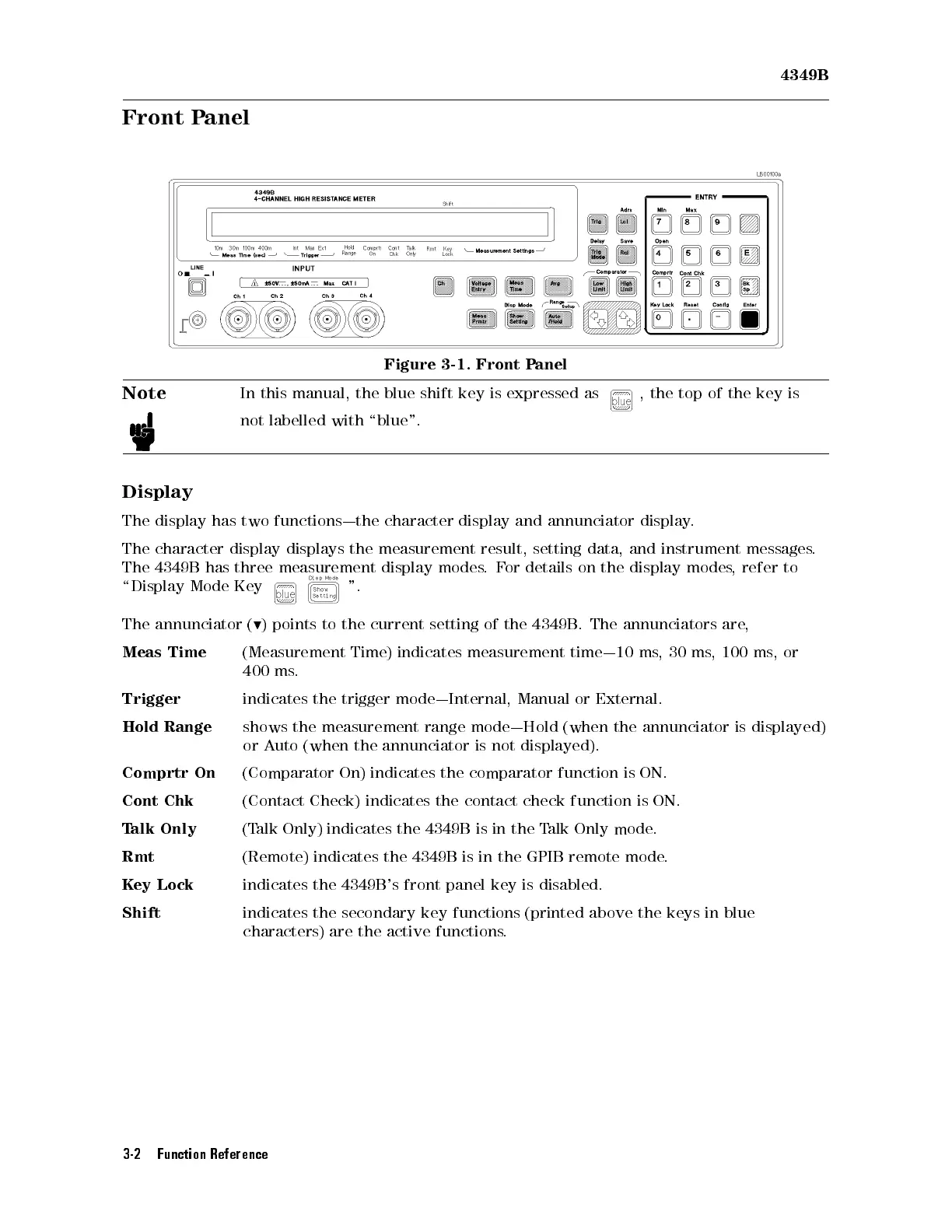

Figure
3-1.
Front
P
anel
Note
In
this
manual,
the
blue
shift
key
is
expressed
as
,
the
top
of
the
key
is
not
labelled
with
\blue".
Display
The
display
has
two
functions|the
character
display
and
annunciator
display
.
The
character
display
displays
the
measurement
result,
setting data,
and instrument
messages
.
The
4349B
has
three
measurement
display
modes
.
F
or details
on
the
display
modes
,
refer
to
\Display
Mode
Key
".
The
annunciator
(
9
)
points
to
the
current
setting
of the
4349B
.
The
annunciators
are
,
Meas
Time
(Measurement Time)
indicates
measurement
time|
10
ms
,
30
ms
,
100
ms
,
or
400
ms
.
Trigger
indicates
the trigger
mode|Internal, Manual
or
External.
Hold Range
shows the
measurement range
mode|Hold (when
the
annunciator
is
displayed)
or
A
uto (when
the annunciator
is not
displayed).
Comprtr On
(Comparator
On)
indicates
the
comparator
function
is
ON.
Cont Chk
(Contact
Check)
indicates
the
contact
check
function
is
ON.
T
alk
Only
(T
alk Only)
indicates
the
4349B
is
in
the
T
alk
Only
mode
.
Rmt (Remote) indicates the 4349B is in the GPIB remote mode
.
Key Lock
indicates the 4349B's front panel key is disabled.
Shift indicates the secondary key functions (printed above the keys in blue
characters) are the active functions
.
3-2 Function Reference
