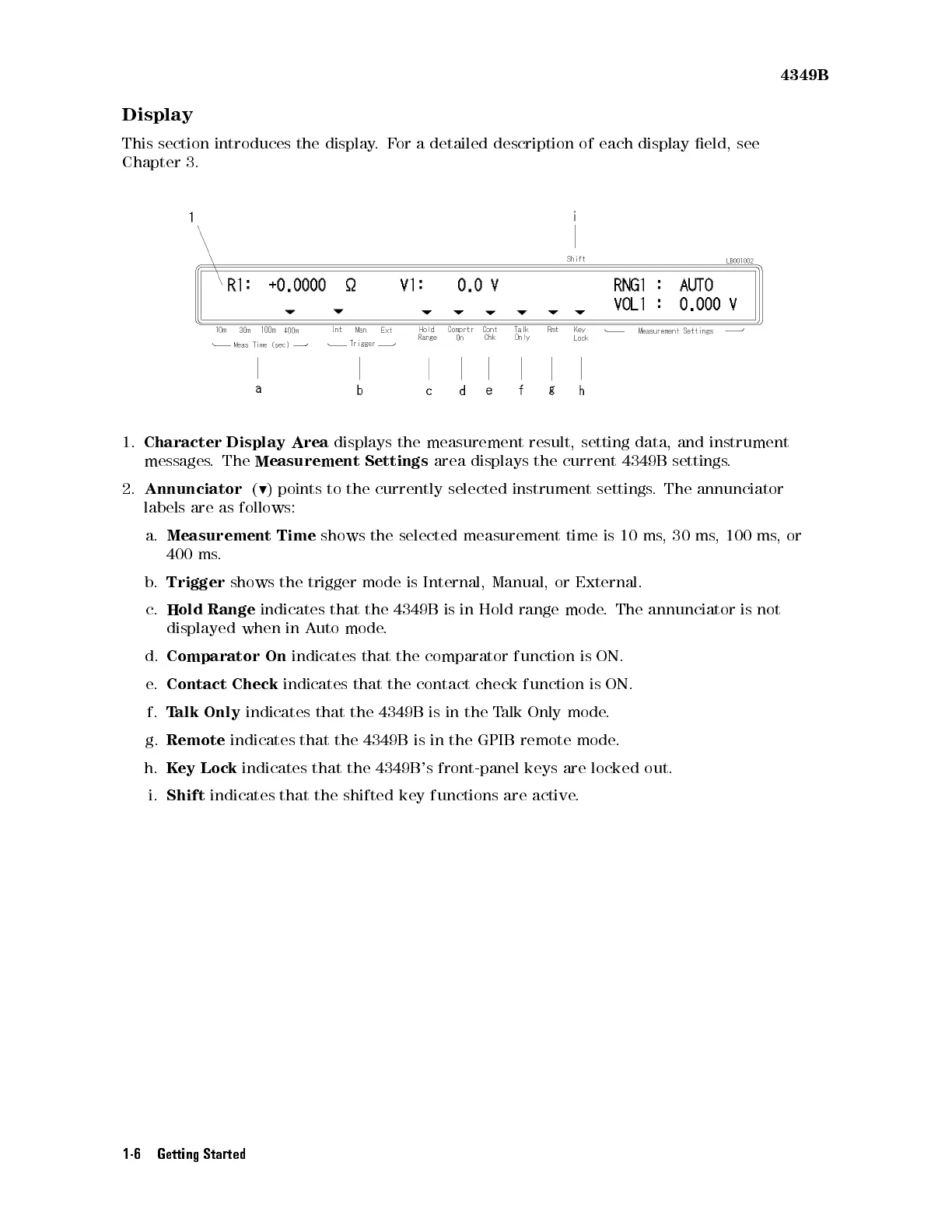

Display
This
section
introduces
the
display
.
F
or
a
detailed
description of
each display
eld, see
Chapter
3.
1.
Character
Display
Area
displays
the
measurement
result,
setting
data,
and
instrument
messages
.
The
Measurement
Settings
area
displays
the
current
4349B
settings
.
2.
Annunciator
(
9
)
points
to
the
currently
selected
instrument
settings
.
The
annunciator
labels
are
as
follows:
a.
Measurement
Time
shows
the
selected
measurement
time
is
10
ms
,
30
ms
,
100
ms
,
or
400
ms
.
b.
Trigger
shows
the
trigger
mode
is
Internal,
Manual,
or
External.
c.
Hold
Range
indicates
that
the
4349B
is
in
Hold
range
mode
.
The
annunciator is
not
displayed
when
in
A
uto
mode
.
d.
Comparator
On
indicates
that
the
comparator
function
is
ON.
e.
Contact
Check
indicates
that
the
contact
check function
is ON.
f.
T
alk
Only
indicates
that the
4349B is
in the
Talk
Only
mode
.
g.
Remote
indicates
that
the
4349B
is
in the
GPIB remote
mode.
h.
K
ey
Lock
indicates
that
the
4349B's
front-panel keys
are locked
out.
i.
Shift indicates
that the
shifted key
functions
are
active
.
1-6 Getting Started
