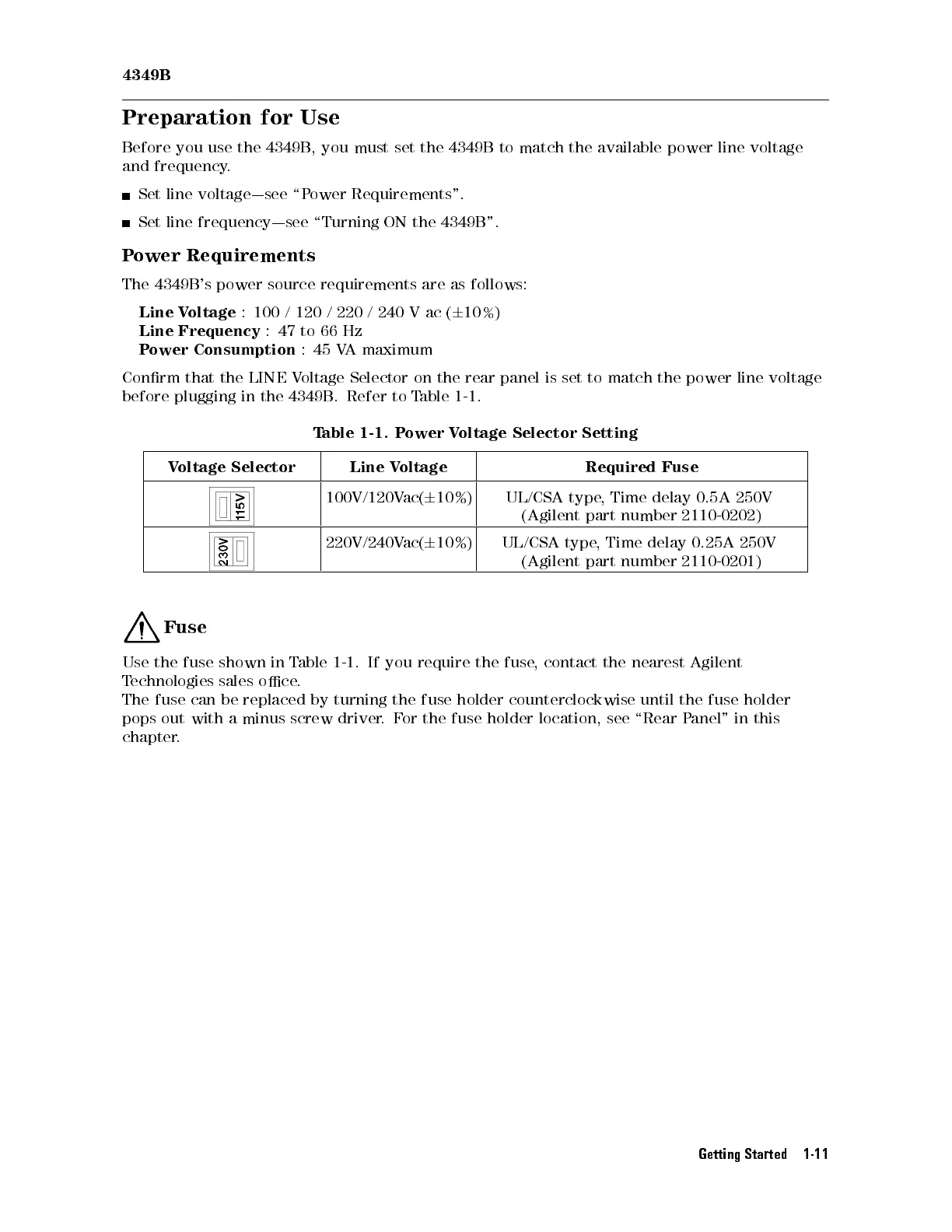

Preparation for
Use
Before
you
use
the
4349B,
you must
set the
4349B to
match the
available power
line voltage
and
frequency
.
Set
line
voltage|see
\P
ower Requirements".
Set
line
frequency|see
\Turning
ON the
4349B".
P
ower Requirements
The
4349B's
power source
requirements are
as follows:
Line
Voltage
:100
/ 120
/ 220
/
240
V
ac
(
6
10%)
Line
Frequency :
47 to
66
Hz
P
ower Consumption
:45
V
A
maximum
Conrm
that the
LINE V
oltage
Selector
on
the
rear
panel
is
set
to
match
the
power
line
voltage
before
plugging in
the 4349B
.
Refer
to
T
able
1-1
.
T
able
1-1. P
ower
V
oltage
Selector
Setting
V
oltage
Selector
Line
V
oltage
Required
Fuse
100V/120V
ac( 6
10%)
UL/CSA
type,
Time delay
0.5A 250V
(Agilent
part
number
2110-0202)
220V/240V
ac(
6
10%)
UL/CSA
type
,
Time
delay
0.25A
250V
(Agilent
part
number
2110-0201)
Fuse
Use
the fuse
shown in
T
able
1-1
.
If
you
require
the
fuse
,
contact
the
nearest
Agilent
T
echnologies sales
oce.
The
fuse can
be replaced
by
turning
the
fuse
holder
counterclockwise
until
the
fuse
holder
pops
out with
a minus
screw driver
.
F
or
the
fuse
holder
location,
see
\Rear
P
anel"
in
this
chapter
.
Getting Started 1-11
