Agilent Technologies 4349B User Manual

4349B
Contact
Check
Functional
T
est
The
4349B
's
contact
check
function
is
conrmed.
T
est
Equipment
Description
Recommended Model
SMU
Test
Adapter
PN 04145-65001
BNC(m)-BNC(m)
Adapter
PN 1250-0216
Procedure
1.
Reset
the
4349B
with
the
following procedure
.
a.
Press
to
display
the
system
reset
settings
.
b.
Select
Yes
using
or and
press
.
2.
Set
up
the
equipment
as
shown in
Figure
9-12
.
Figure

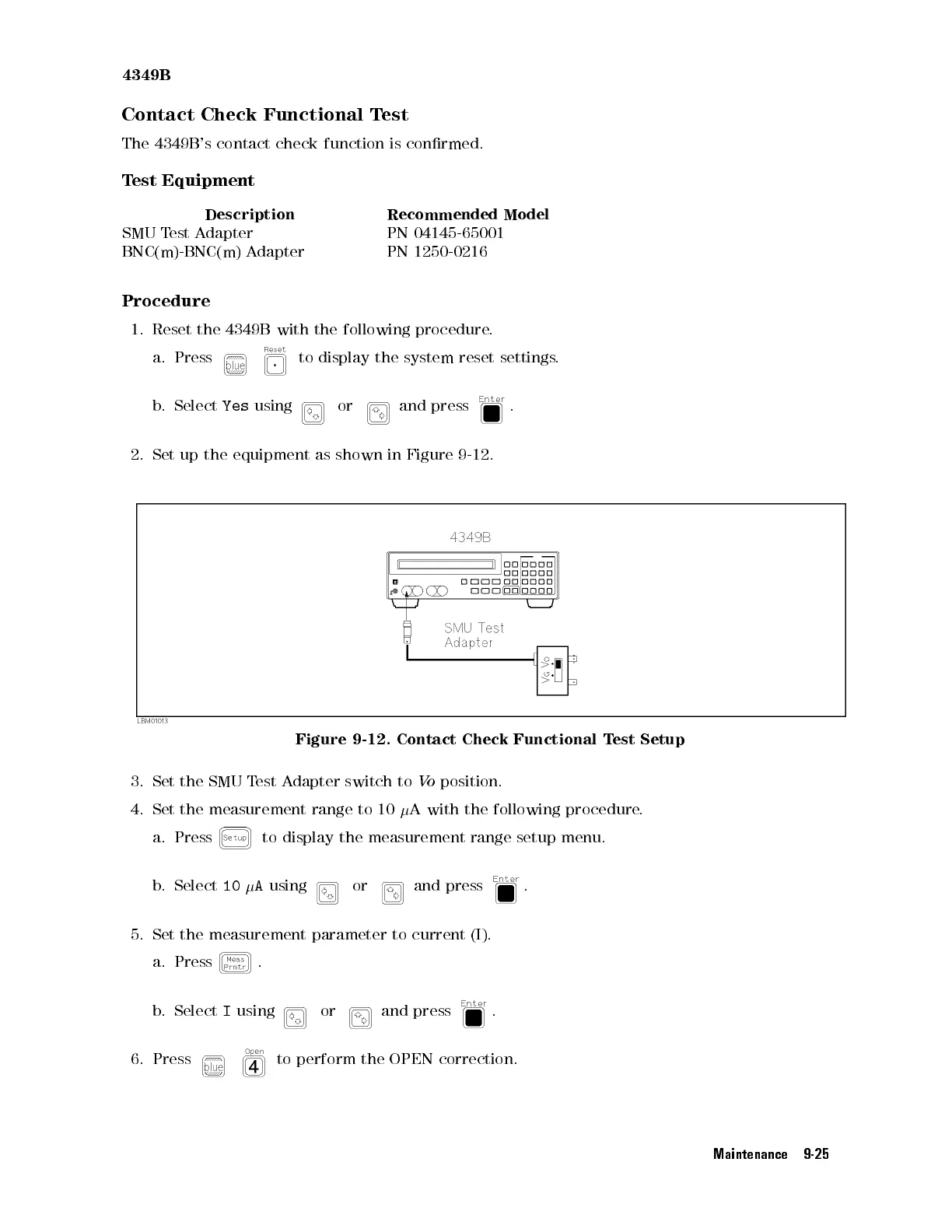

9-12. Contact
Check Functional
T
est
Setup
3.
Set
the
SMU T
est A
dapter switch
to V
o
position.
4.
Set the
measurement
range
to
10

A
with
the
following
procedure
.
a.
Press
to
display
the
measurement
range
setup menu.
b. Select
10  A using
or and press .
5. Set the measurement parameter to current (I).
a. Press .
b. Select I using
or and press .
6. Press to perform the OPEN correction.
Maintenance 9-25
