Agilent Technologies 4349B User Manual

4349B
Multi T
est V
oltages Measurement
F
or
the
reliable
test of
ceramic capacitors
, the
insulation resistance
measurement at
the
low
voltage
and
the
high voltage
is required.
This section
shows the
multi test
voltages
measurement
example
of
the
capacitors insulation
resistance using
the 4349B
(channels 1
and
2),
an
external
voltage
source,
and a
handler.
1.
Set
up
the
measurement
systems
.
Figure
6-3
shows
the
typical
system.
Refer
to
\
Installation
"
in
Chapter
2
for
information
on
setting
up
the
system.

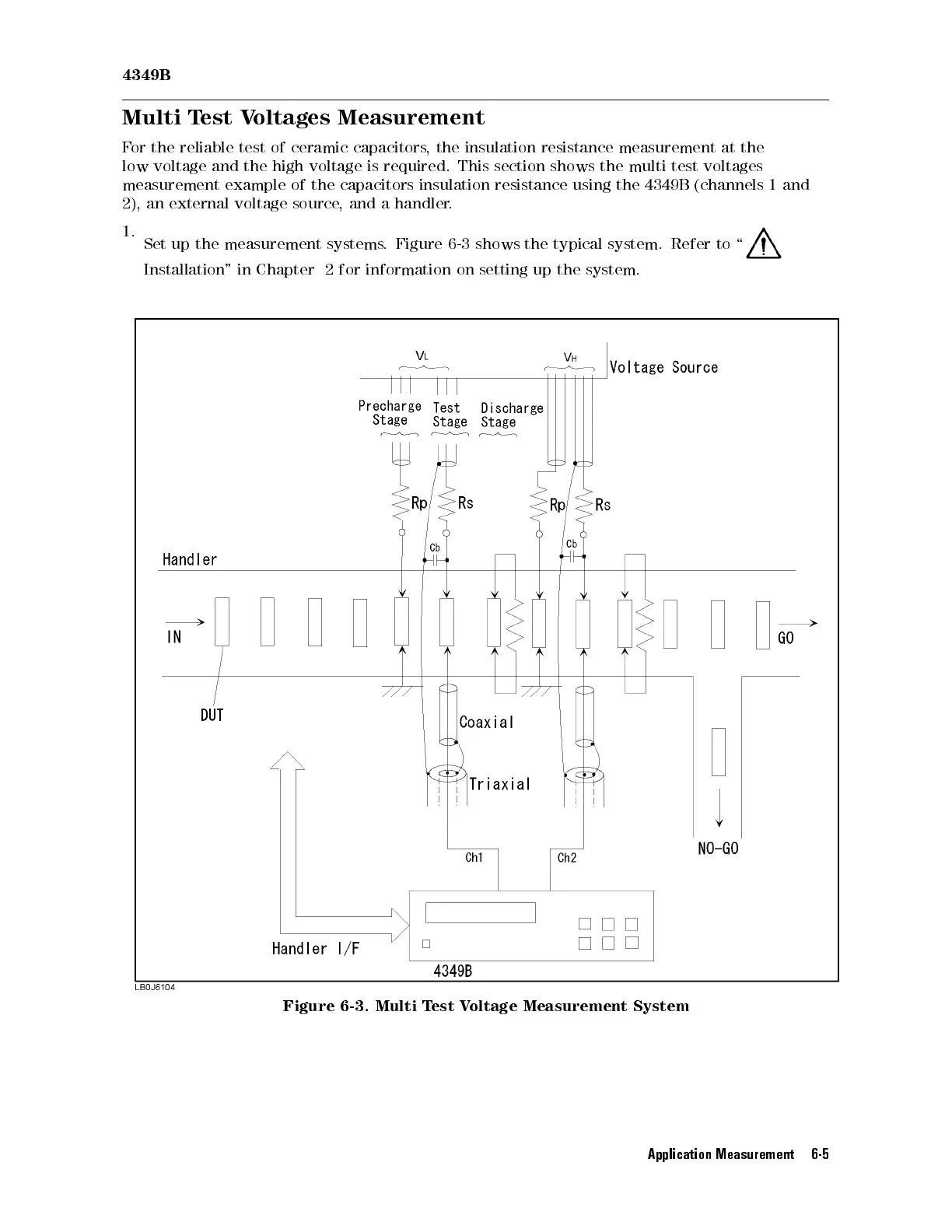

Figure 6-3. Multi Test Voltage Measurement System
Application Measurement 6-5
