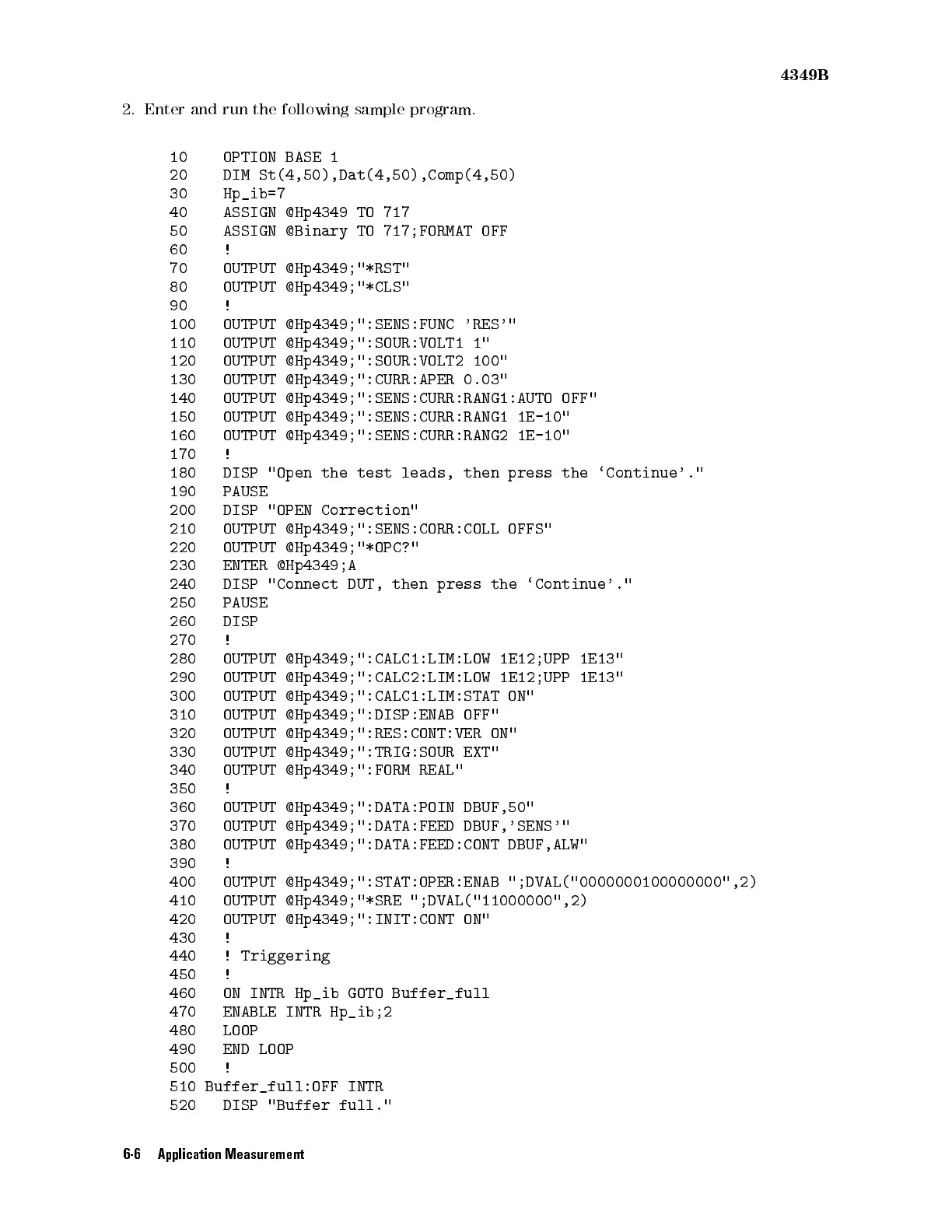

Agilent Technologies 4349B User Manual

4349B
2. Enter
and run
the following
sample program.
10 OPTION
BASE 1
20 DIM
St(4,50),Dat(4,50),Comp(4,50)
30 Hp_ib=7
40 ASSIGN
@Hp4349 TO
717
50 ASSIGN
@Binary TO
717;FORMAT OFF
60 !
70 OUTPUT
@Hp4349;"*RST"
80 OUTPUT
@Hp4349;"*CLS"
90 !
100 OUTPUT
@Hp4349;":SENS:FUNC 'RES'"
110 OUTPUT
@Hp4349;":SOUR:VOLT1 1"
120
OUTPUT
@Hp4349;":SOUR:VOLT2
100"
130
OUTPUT
@Hp4349;":CURR:APER
0.03"
140
OUTPUT
@Hp4349;":SENS:CURR:RANG1:AUTO
OFF"
150
OUTPUT
@Hp4349;":SENS:CURR:RANG1
1E-10"
160
OUTPUT @Hp4349;":SENS:CURR:RANG2
1E-10"
170
!
180 DISP
"Open the
test
leads,
then
press
the
`Continue'."
190 PAUSE
200 DISP
"OPEN Correction"
210 OUTPUT
@Hp4349;":SENS:CORR:COLL OFFS"
220 OUTPUT
@Hp4349;"*OPC?"
230
ENTER
@Hp4349;A
240
DISP
"Connect
DUT,
then
press
the
`Continue'."
250
PAUSE
260
DISP
270
!
280
OUTPUT
@Hp4349;":CALC1:LIM:LOW
1E12;UPP
1E13"
290
OUTPUT
@Hp4349;":CALC2:LIM:LOW
1E12;UPP
1E13"
300
OUTPUT
@Hp4349;":CALC1:LIM:STAT
ON"
310
OUTPUT
@Hp4349;":DISP:ENAB
OFF"
320
OUTPUT
@Hp4349;":RES:CONT:VER
ON"
330
OUTPUT
@Hp4349;":TRIG:SOUR
EXT"
340
OUTPUT
@Hp4349;":FORM
REAL"
350
!
360
OUTPUT
@Hp4349;":DATA:POIN
DBUF,50"
370
OUTPUT
@Hp4349;":DATA:FEED
DBUF,'SENS'"
380 OUTPUT @Hp4349;":DATA:FEED:CONT DBUF,ALW"
390 !
400 OUTPUT @Hp4349;":STAT:OPER:ENAB ";DVAL("0000000100000000",2)
410 OUTPUT @Hp4349;"*SRE ";DVAL("11000000",2)
420 OUTPUT @Hp4349;":INIT:CONT ON"
430 !
440 !
Triggering
450 !
460 ON INTR Hp_ib GOTO Buffer_full
470 ENABLE INTR Hp_ib;2
480 LOOP
490 END LOOP
500 !
510 Buffer_full:OFF INTR
520 DISP "Buffer full."
6-6 Application Measurement
