4349B
Current
Measurement
A
ccuracy
T
est

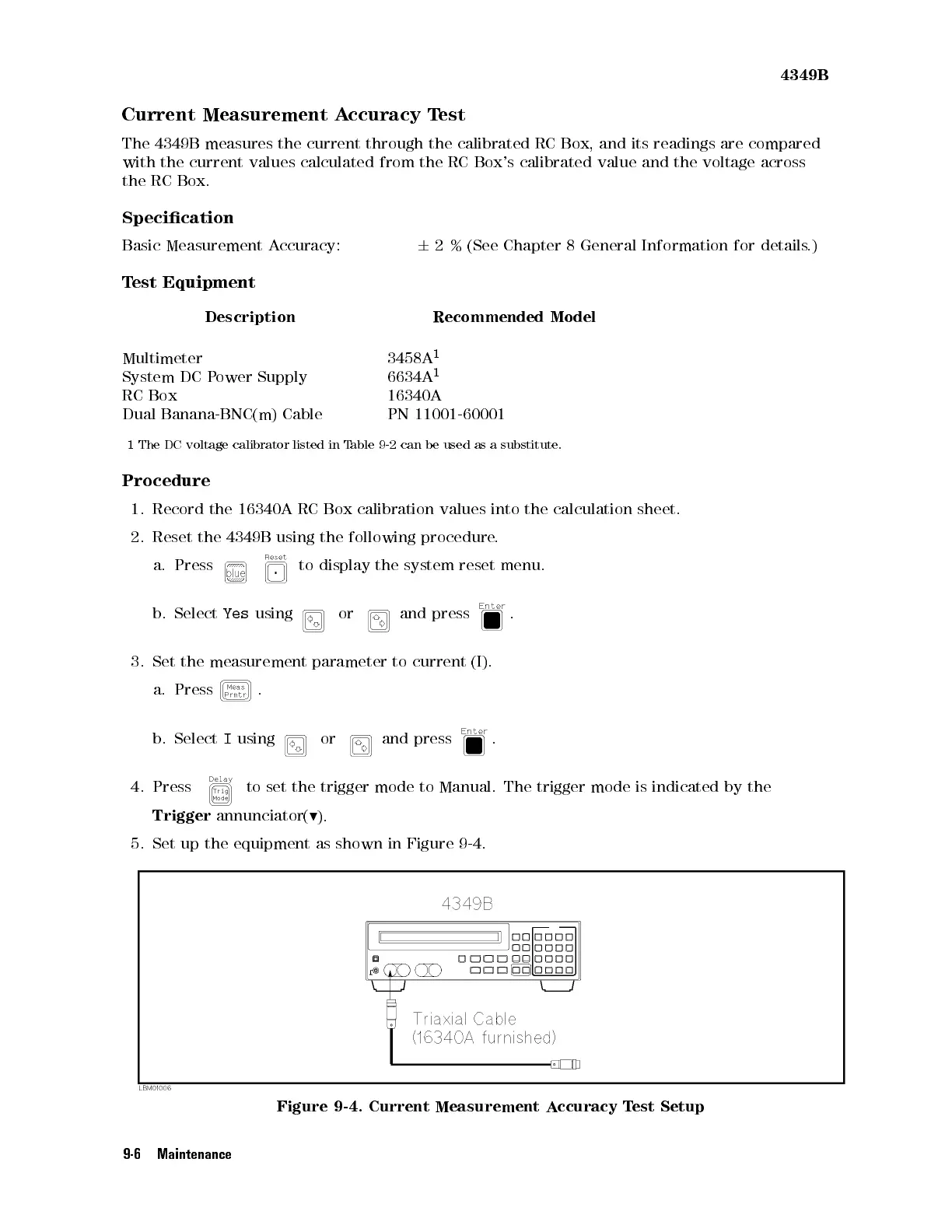

The
4349B
measures
the
current
through
the
calibrated
RC
Box,
and its
readings are
compared
with
the
current
values
calculated
from
the RC
Box's calibrated
value and
the voltage
across
the
RC
Box.
Specication
Basic
Measurement
A
ccuracy:
6
2
% (See
Chapter 8
General Information
for details
.)
T
est
Equipment
Description
Recommended Model
Multimeter
3458A
1
System
DC
P
ower
Supply
6634A
1
RC
Box
16340A
Dual
Banana-BNC(m)
Cable
PN
11001-60001
1
The
DC
voltage
calibrator
listed
in
T
able
9-2
can
be
used
as
a
substitute
.
Procedure
1.
Record
the
16340A
RC
Box
calibration
values into
the calculation
sheet.
2.
Reset
the
4349B
using
the
following
procedure
.
a.
Press
to
display
the
system
reset
menu.
b.
Select
Yes
using
or and
press
.
3.
Set
the
measurement
parameter
to
current
(I).
a.
Press .
b. Select
I using
or and press .
4.
Press to
set
the
trigger
mode
to
Manual.
The
trigger
mode
is
indicated
by
the
Trigger
annunciator(
9
).
5.
Set
up
the
equipment as
shown
in
Figure
9-4
.
Figure 9-4. Current Measurement Accuracy Test Setup
9-6 Maintenance
