Agilent Technologies 4349B User Manual

4349B
To
Control the
4349B from
an External
Computer
Most
measurements
can
be
modeled the
following simple
three step
sequence:
1.
Set
up
the
4349B.
Typically
,
you
begin
the setup
step by
sending the
reset command
to set
the instrument
to
its
default
settings
.
Next, if
you need
values dierent
from the
default
settings
,
change
the
settings
one
by
one
as required.
2.
Trigger
the
measurement.
The
trigger
may
be
generated automatically
by steps
taken in
your setup
commands
,
or
you
can
send
an
explicit
trigger command.
3.
Retrieve
the measurement
data
The
following
sections describes
how to
perform the
tasks
at
each
step
.

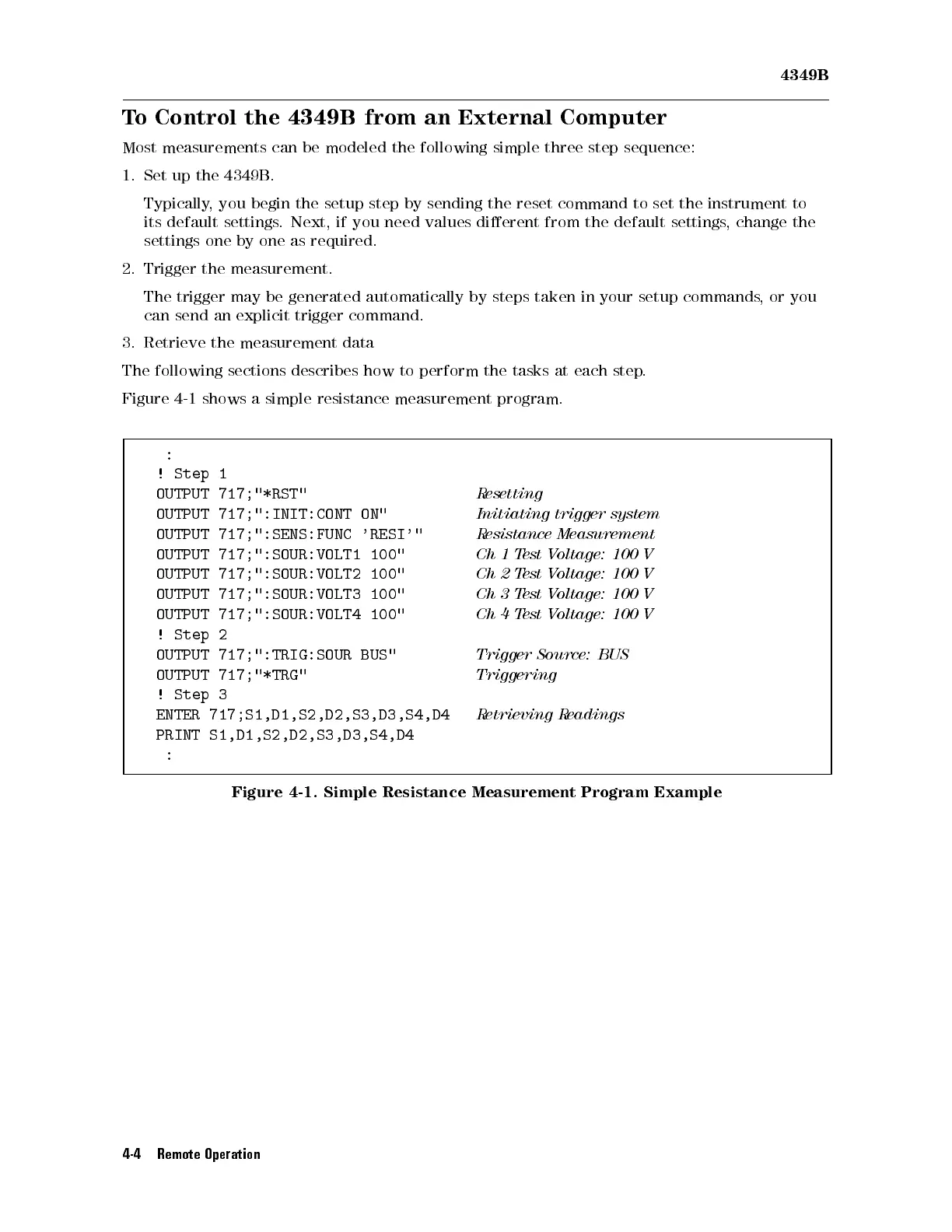

Figure
4-1
shows a
simple resistance
measurement program.
:
!
Step 1
OUTPUT
717;"*RST"
R
esetting
OUTPUT
717;":INIT:CONT
ON"
Initiating
trigger
system
OUTPUT
717;":SENS:FUNC
'RESI'"
R
esistance
Measurement
OUTPUT
717;":SOUR:VOLT1
100"
Ch
1
T
est
V
oltage:
100
V
OUTPUT
717;":SOUR:VOLT2
100"
Ch 2
T
est
V
oltage:
100
V
OUTPUT
717;":SOUR:VOLT3
100"
Ch
3
T
est
V
oltage:
100
V
OUTPUT
717;":SOUR:VOLT4
100"
Ch
4
T
est
V
oltage:
100
V
!
Step
2
OUTPUT 717;":TRIG:SOUR
BUS"
Trigger
Source:
BUS
OUTPUT
717;"*TRG"
Triggering
!
Step
3
ENTER 717;S1,D1,S2,D2,S3,D3,S4,D4
R
etrieving
R
eadings
PRINT
S1,D1,S2,D2,S3,D3,S4,D4
:
Figure
4-1.
Simple Resistance
Measurement Program
Example
4-4 Remote Operation
