Agilent Technologies 54830 Series User Manual

Setting Up the Oscilloscope
To connect a printer
1-24
6 Attach the 25-pin “D” connector to the serial input port of the printer.
Tighten the thumbscrews to secure the cable.

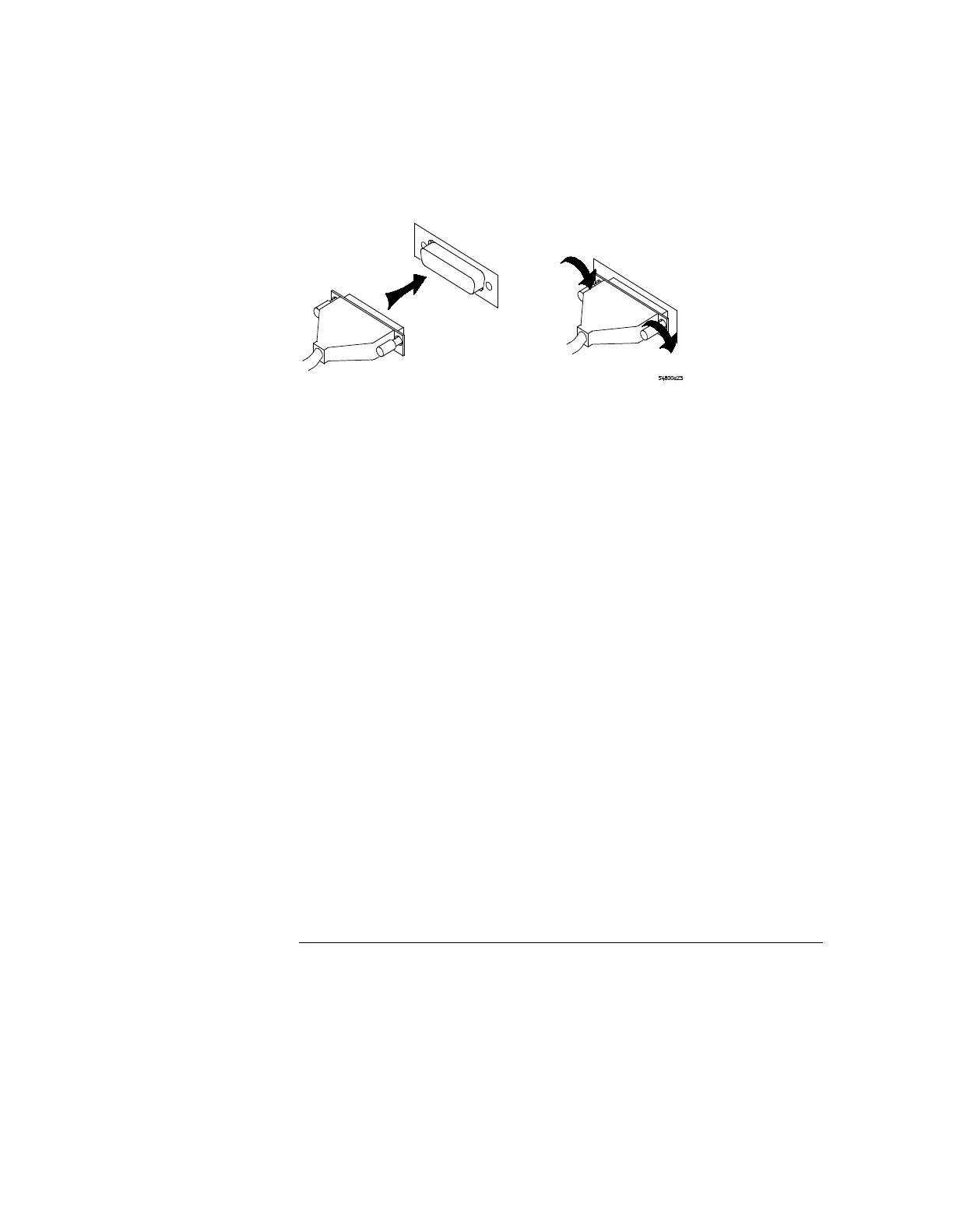

Figure 1-18
Attaching the 25-pin “D” Connector
7 Set the printer configuration to use the serial interface. See the
documentation for your printer.
8 Go to “To install the printer software” in Chapter 3.
Port on Printer
