Chapter 3: Testing Performance
Internal Channel Trigger Sensitivity Test
3–33

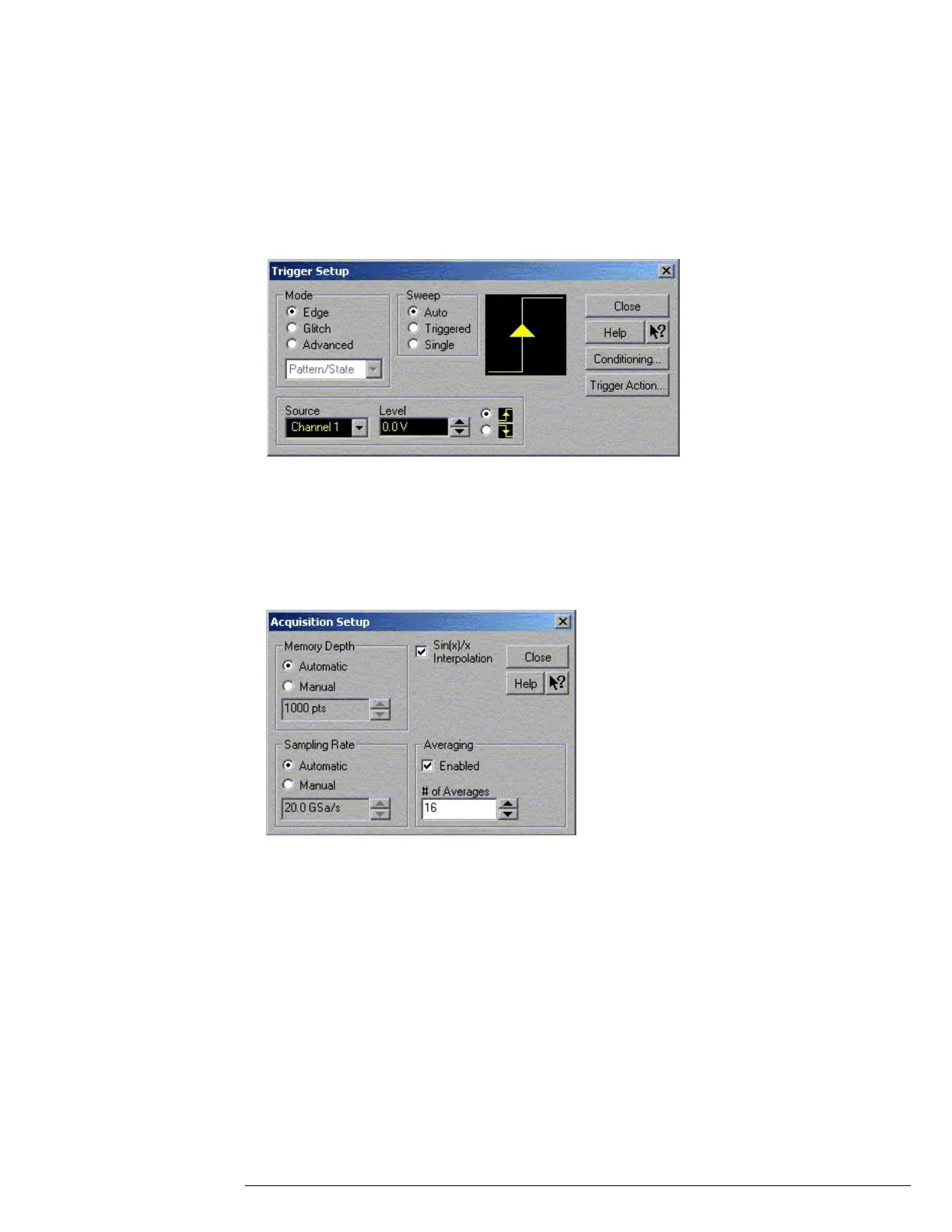

d Pull do wn the Setup menu, select trigger and then set up the trigger parameter as follows:
Mode = Edge
Source = Channel 1
Sweep = Auto
Click on Conditioning and select Low Sensitivity.
e Pull down the Setup menu, select Acquisition and then set up the acquisition parameters
as follows:
Memory Depth = Automatic
Sampling rate = Maximum 20 GSa/s
Sin(x)/x Interpolation filter enabled
Averaging enabled with # of Averages = 16
3
Set up the source generator as follows:
Frequency = 2 GHz
Amplitude = -5.0 dBm
