2 Installing GC Columns
There should be approximately 50 cm of column extending beyond the
3 o’clock positioned clip.
6 Carefully rewind the remainder of the column outlet end around the
column cage.

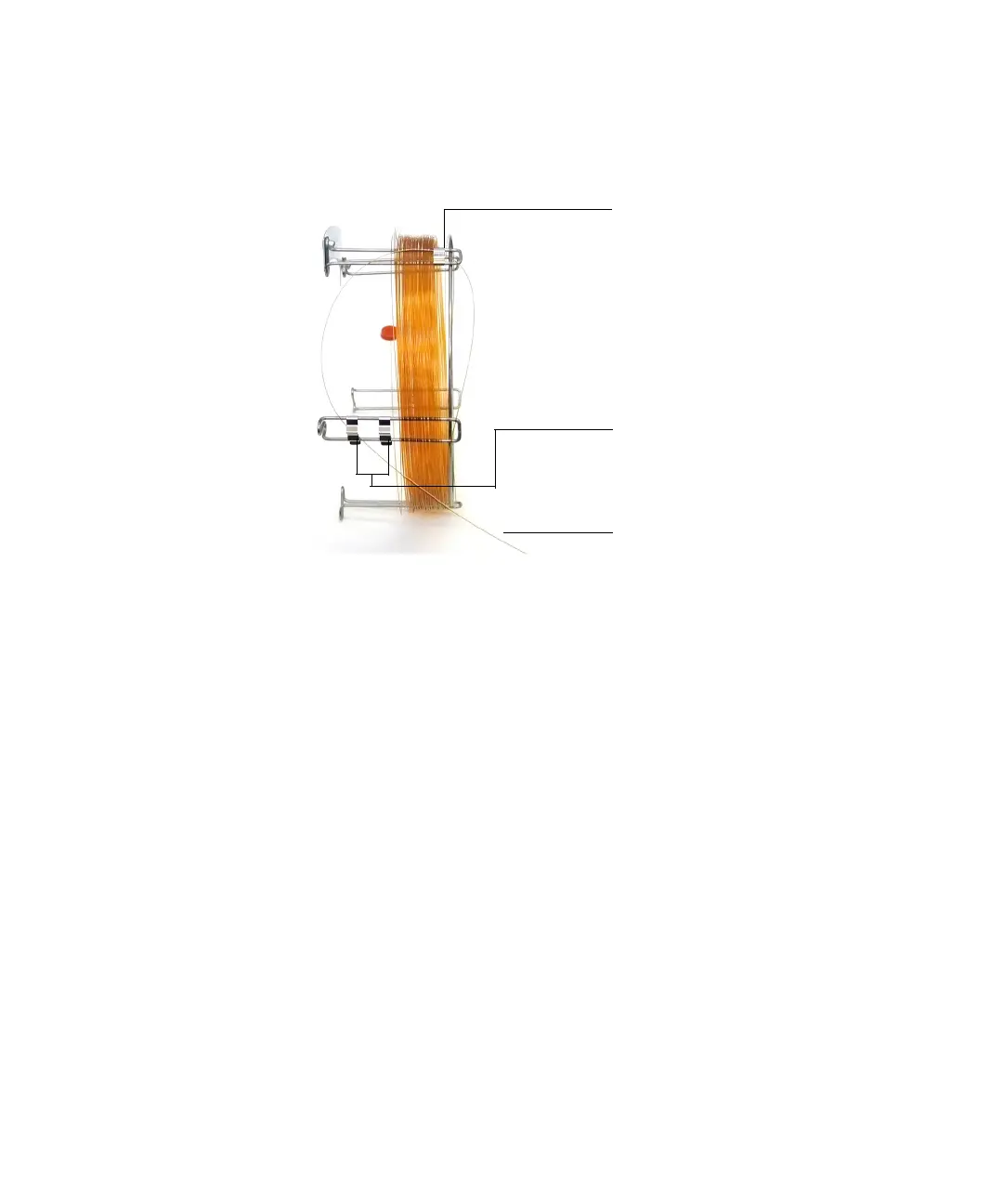

Figure 6 Column fed through 3 o’clock position
Column clip
(1 o’clock postion)
Column clips
(3 o’clock position)
To column outlet
(at least 50 cm)
