5 Next, feed the outlet side of the column through the 3 o’clock positioned
clips so that the column outlet is pointing toward the back of the column
cage. Make sure that the part of the column that is between the two clips
does NOT extend above the column label. See Figure 6.

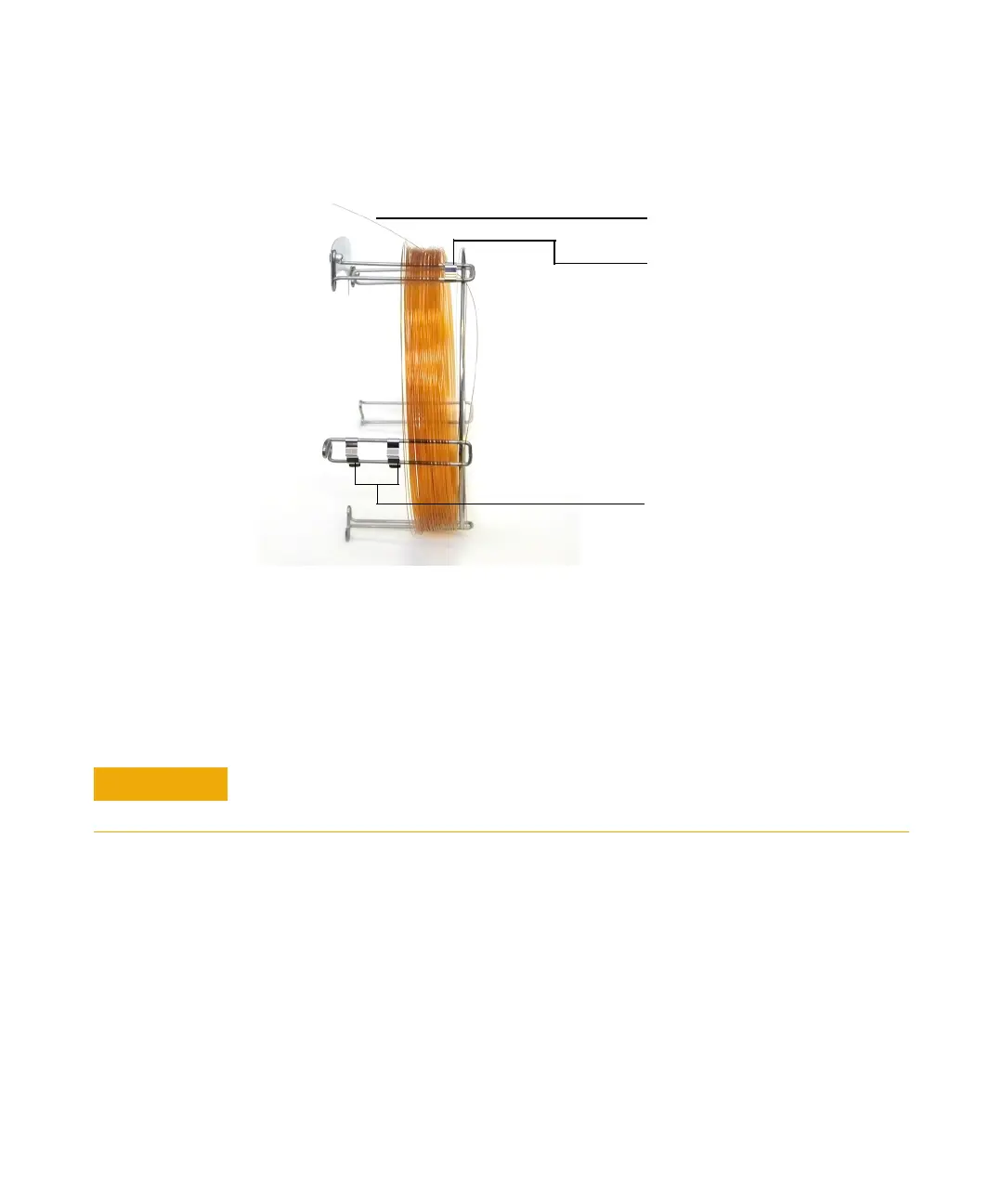

Figure 5 Column fed through 1 o’clock position
To column outlet
Column clip
(1 o’clock position)
Column clips
(3 o’clock position)
CAUTION
Be careful not to scratch the column coating.
