90 5975 Series MSD Operation Manual for MassHunter
3 Operating in Electron Impact (EI) Mode

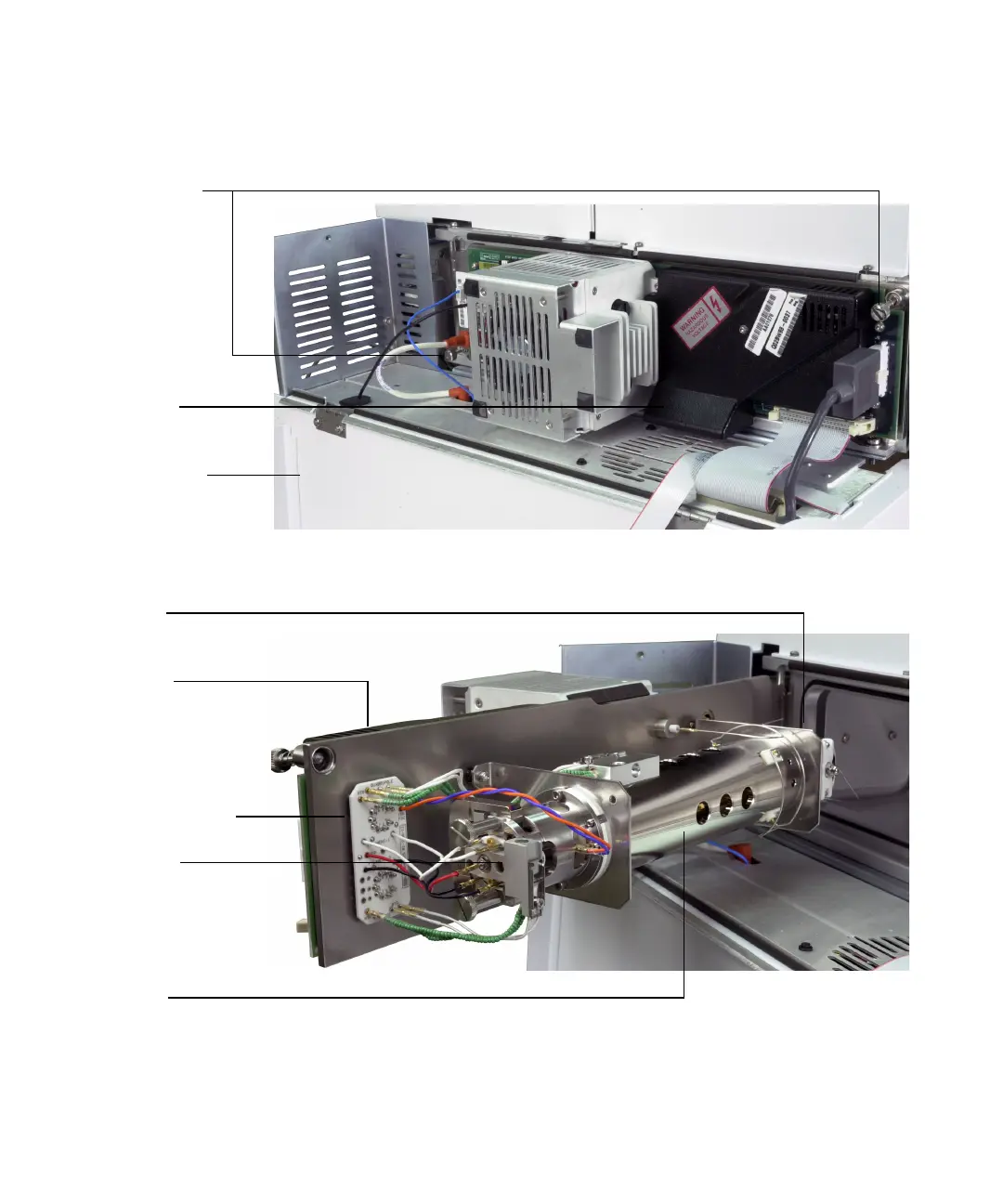

Figure 16 The analyzer chamber
Thumbscrews
Side plate
Analyzer cover
Detector
Feedthrough board
Ion source
Analyzer
Side plate
CHAMBER CLOSED
CHAMBER OPEN
