7 Attach the repeller assembly to the source body using the two gold plated
screws and spring washers.
8 Install the filaments using the two gold plated screws and spring washers.

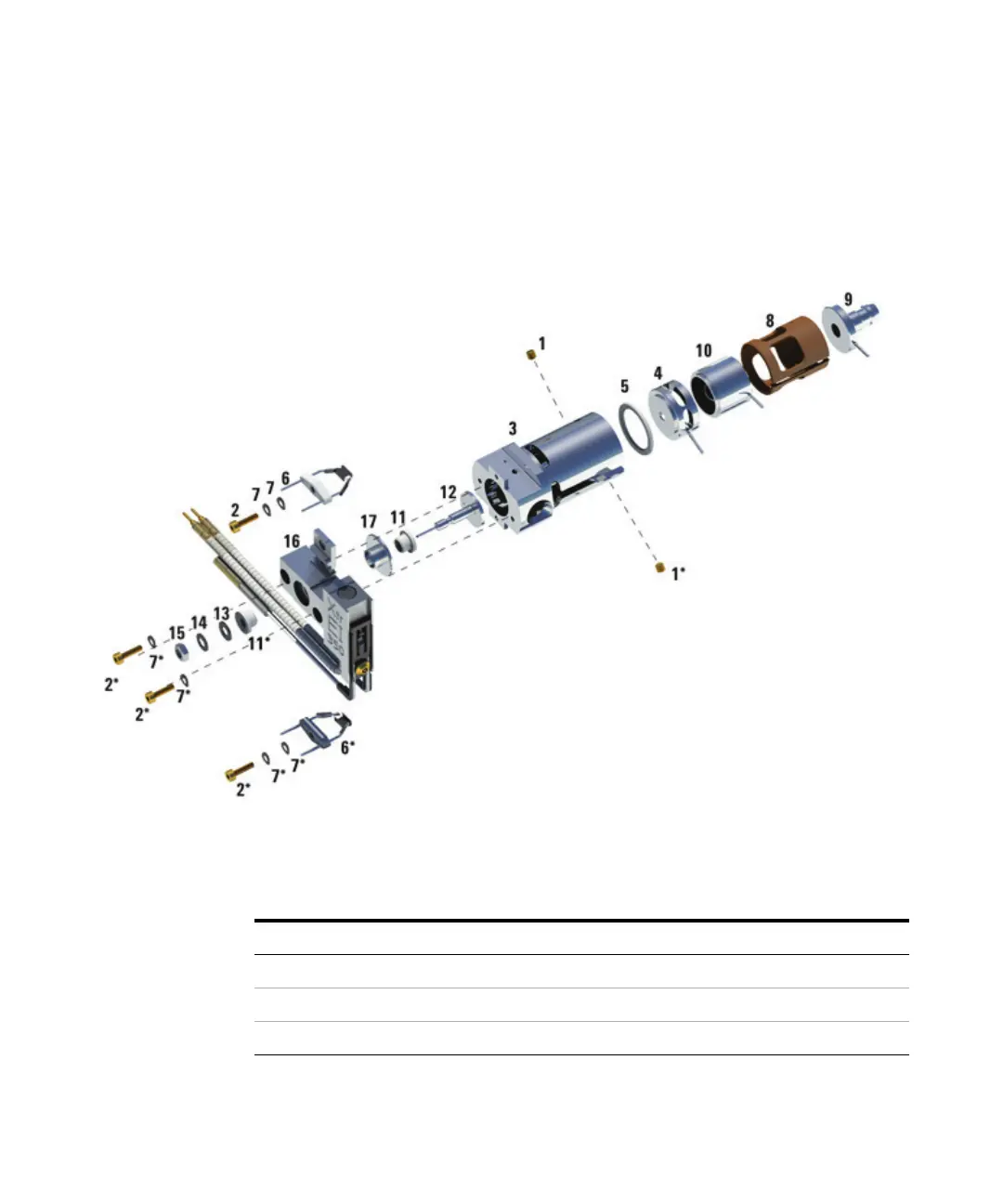

Figure 60 Assembling the EI XTR source
Table 2 2 Parts list for EI XTR source (Figure 60)
Item Description Part number
1 Setscrews G3870-20446
2 Screws G3870-20021
3 Source body G3870-20440
To Next Page
