Troubleshooting and Maintenance Manual 169

Collision Cell Board

This board has two functions:

• Generates the controlling voltages for the hexapole.

• Creates the RF signal for the collision cell.

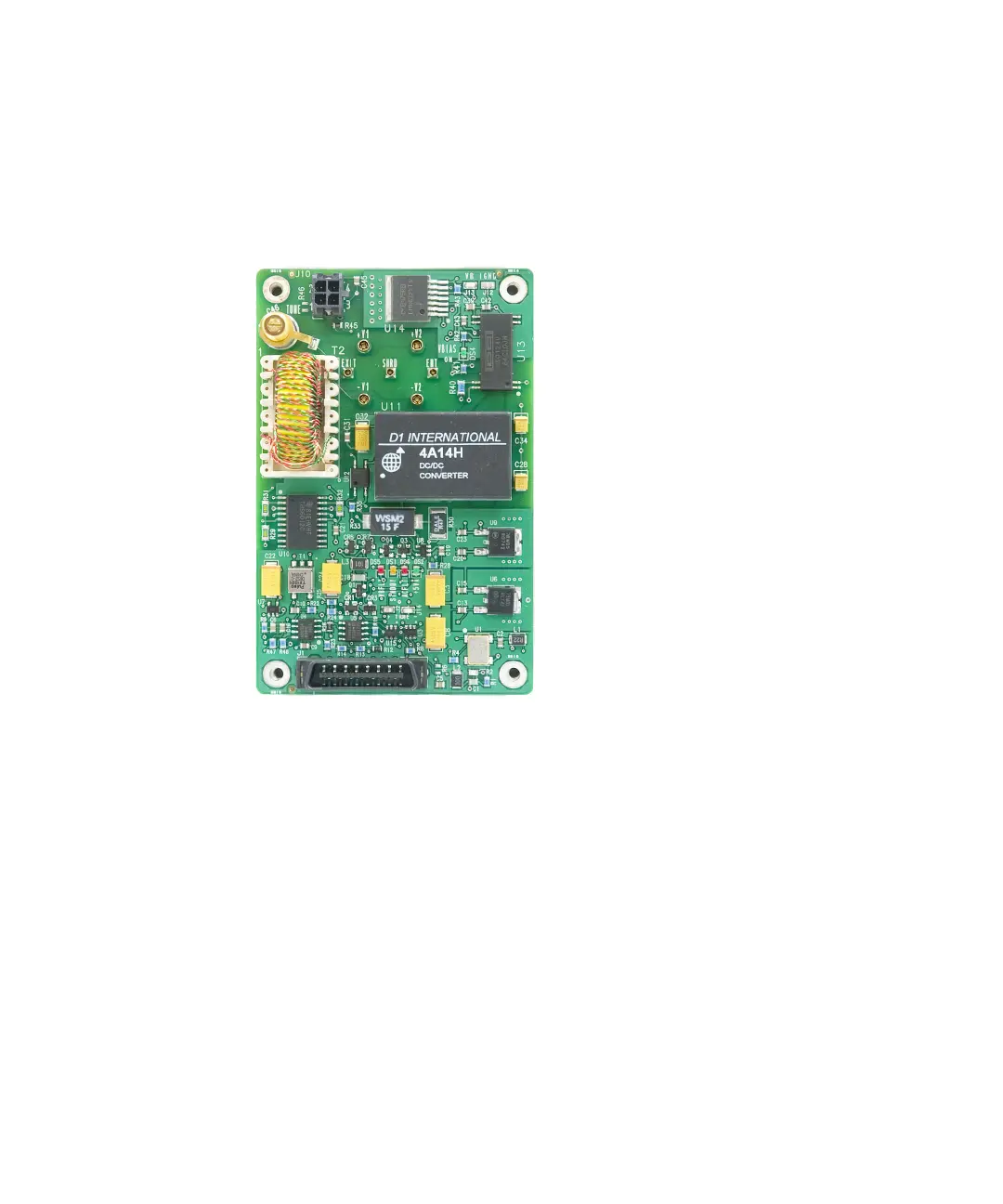

Figure 38 Collision cell board
