40 Operation
5 Sample Vials
Vial Labels
If using labels with a 111 vial model, the label needs to
conform to the dimensions below. If also using the optional
barcode reader, the barcode labels must conform to the
general dimensions for labels, plus the placement
requirements shown.

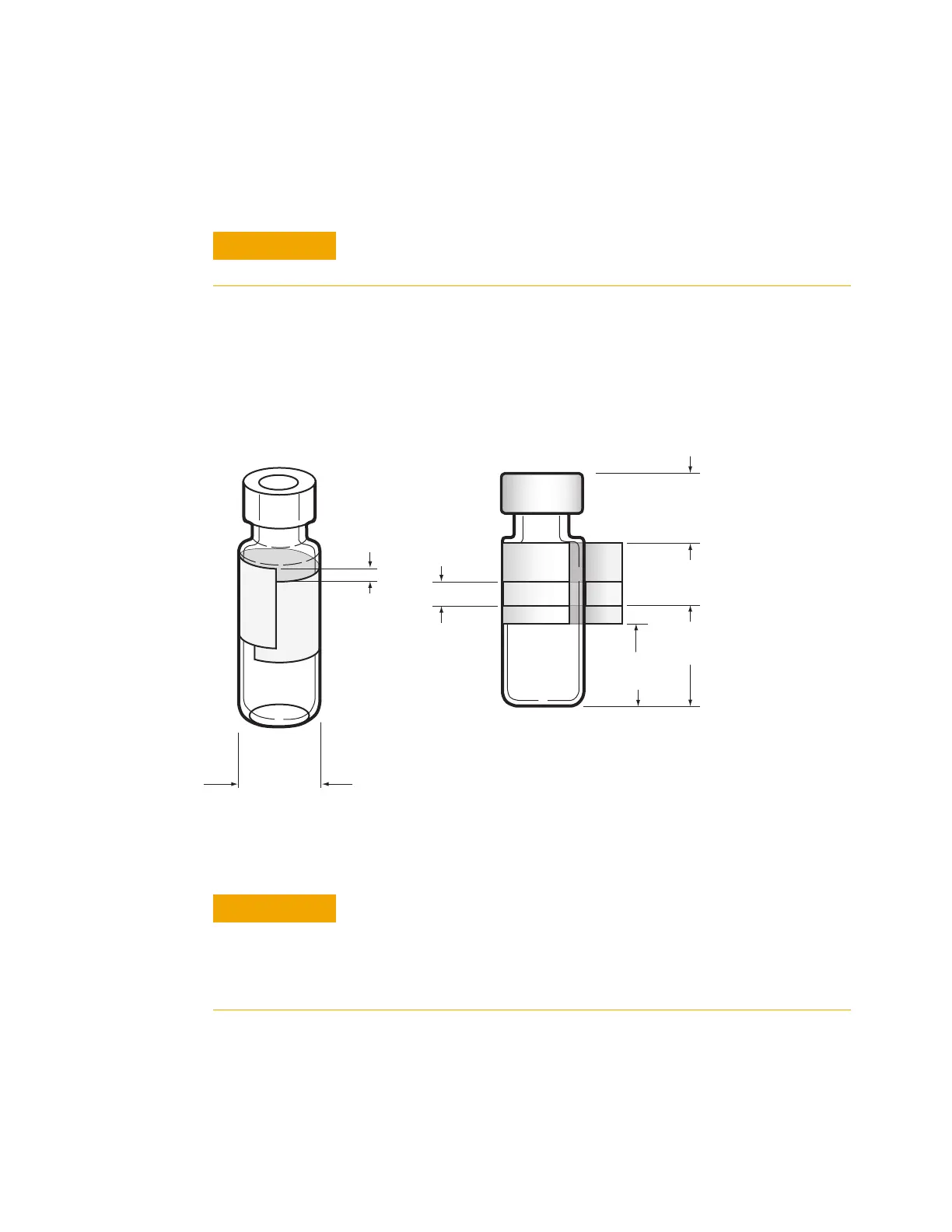

Figure 7 Vial label and barcode specifications
Make sure that any label and ink can withstand the oven heat
without degrading.
Bar code
Text
Text
1 mm skew
maximum
23.5 mm
maximum,
including label
4.0 mm high
minimum
No label
17.5 mm
minimum
17.0 mm
minimum
19 mm
maximum
Correct sample vial dimensions are critical for proper gripper
operation. Vials and labels that do not meet these specifications
may cause sampler errors. Service calls and repairs found to be due
to vials and labels that do not meet these specifications are not
covered under warranty or the service contract.
