Power Measurement How to Measure Power
102 Agilent 8163A/B, 8164A/B & 8166A/B Mainframes, Sixth Edition

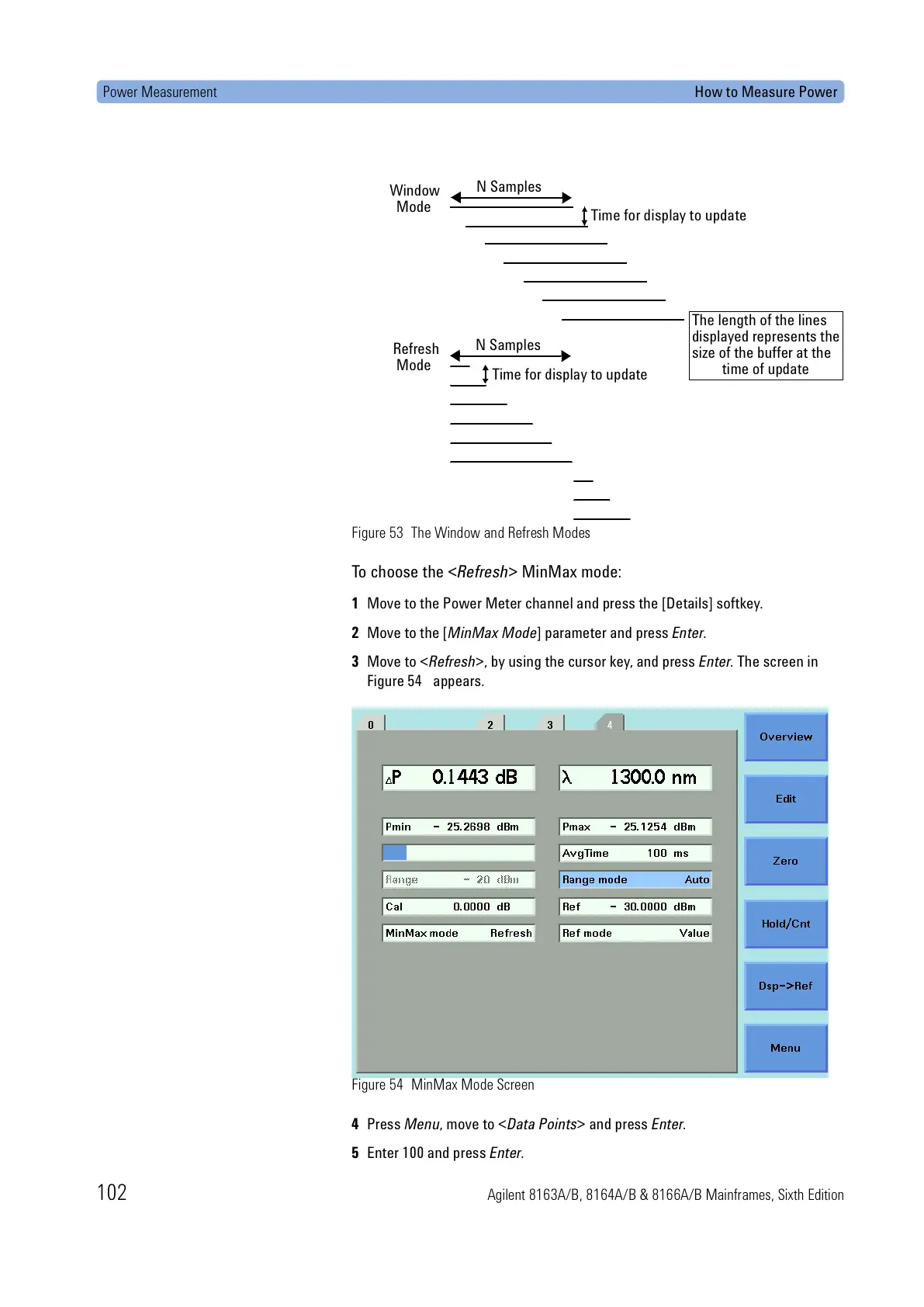

Figure 53 The Window and Refresh Modes
To choose the <Refresh> MinMax mode:
1 Move to the Power Meter channel and press the [Details] softkey.
2 Move to the [MinMax Mode] parameter and press Enter.
3 Move to <Refresh>, by using the cursor key, and press Enter. The screen in
Figure 54 appears.
Figure 54 MinMax Mode Screen
4 Press Menu, move to <Data Points> and press Enter.
5 Enter 100 and press Enter.
Window
Refresh
N Samples
N Samples
Time for display to update
Time for display to update
The length of the lines
displayed represents the
size of the buffer at the
time of update
Mode
Mode
