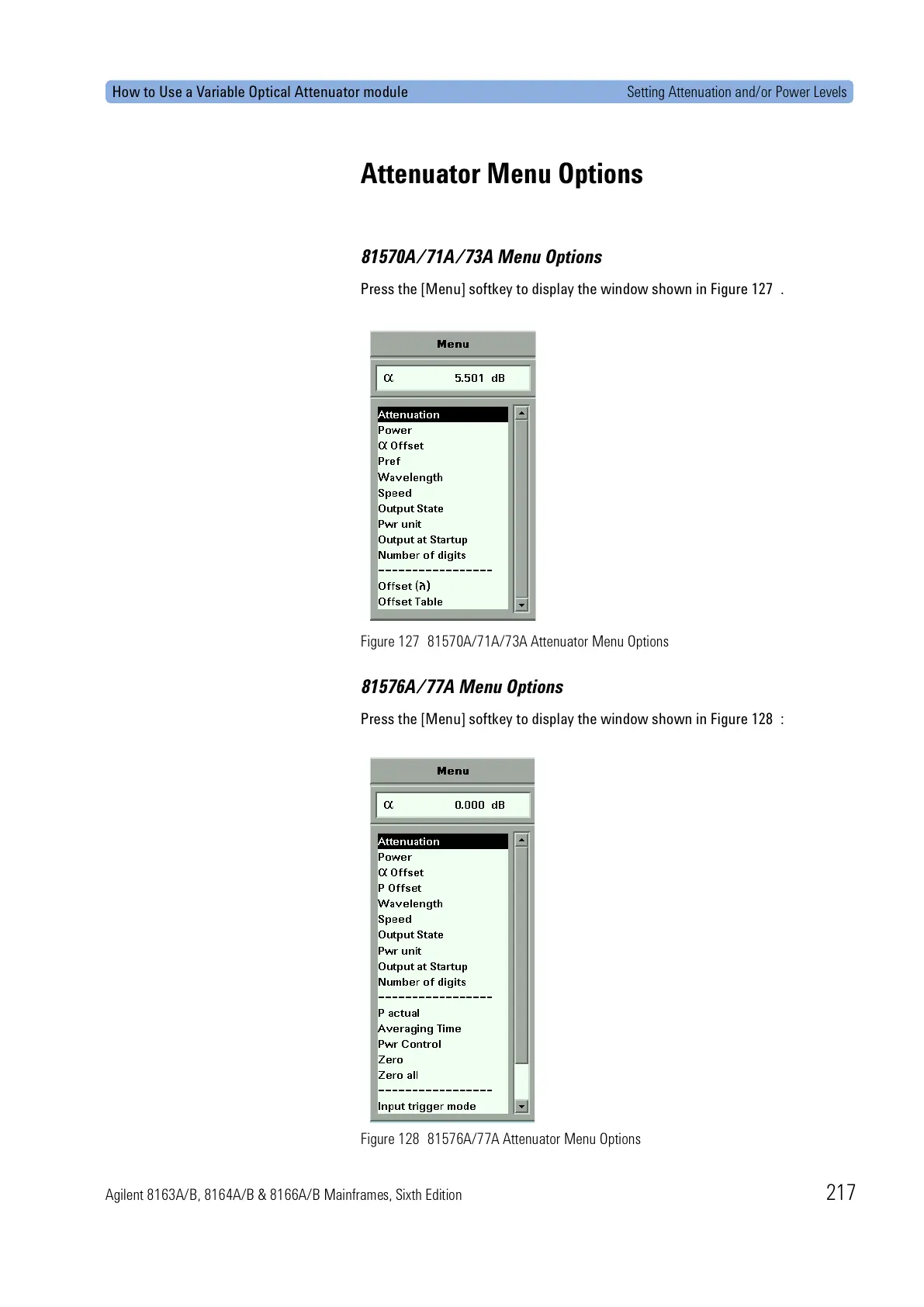

Agilent Technologies 8163A - Attenuator Menu Options; Figure 127 81570 A;71 A;73 A Attenuator Menu Options; Figure 128 81576 A;77 A Attenuator Menu Options

To Next Page

To Previous Page

How to Use a Variable Optical Attenuator module Setting Attenuation and/or Power Levels

Agilent 8163A/B, 8164A/B & 8166A/B Mainframes, Sixth Edition 217

Attenuator Menu Options

81570A/71A/73A Menu Options

Press the [Menu] softkey to display the window shown in Figure 127 .

Figure 127 81570A/71A/73A Attenuator Menu Options

81576A/77A Menu Options

Press the [Menu] softkey to display the window shown in Figure 128 :

Figure 128 81576A/77A Attenuator Menu Options
