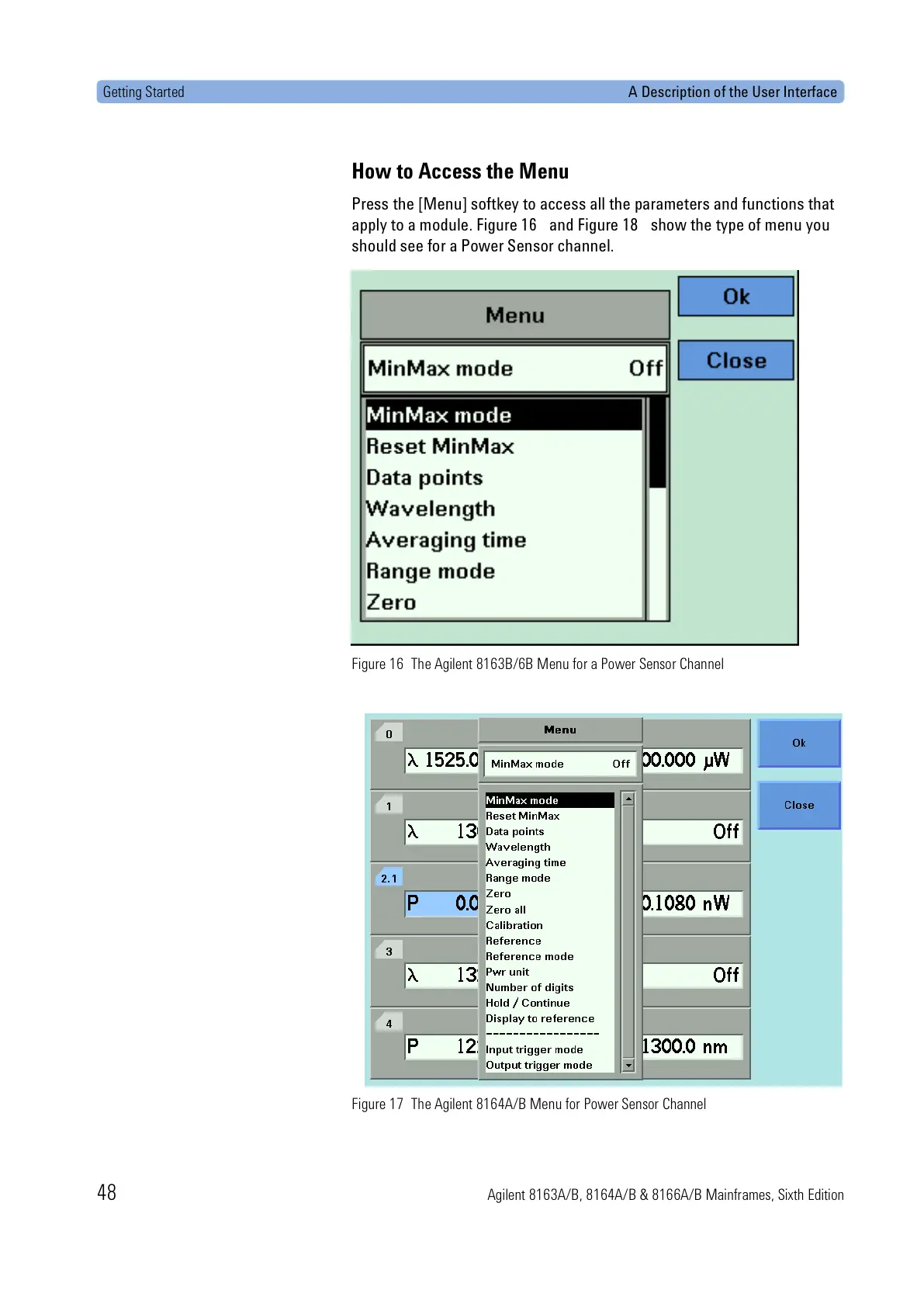

Getting Started A Description of the User Interface

48 Agilent 8163A/B, 8164A/B & 8166A/B Mainframes, Sixth Edition

How to Access the Menu

Press the [Menu] softkey to access all the parameters and functions that

apply to a module. Figure 16 and Figure 18 show the type of menu you

should see for a Power Sensor channel.

Figure 16 The Agilent 8163B/6B Menu for a Power Sensor Channel

Figure 17 The Agilent 8164A/B Menu for Power Sensor Channel
