Compact Tunable Lasers How to Use a compact Tunable Laser

162 Agilent 8163A/B, 8164A/B & 8166A/B Mainframes, Sixth Edition

•Set a value for the SBS suppression control level, SBSC lvl, appropriate to your

application.

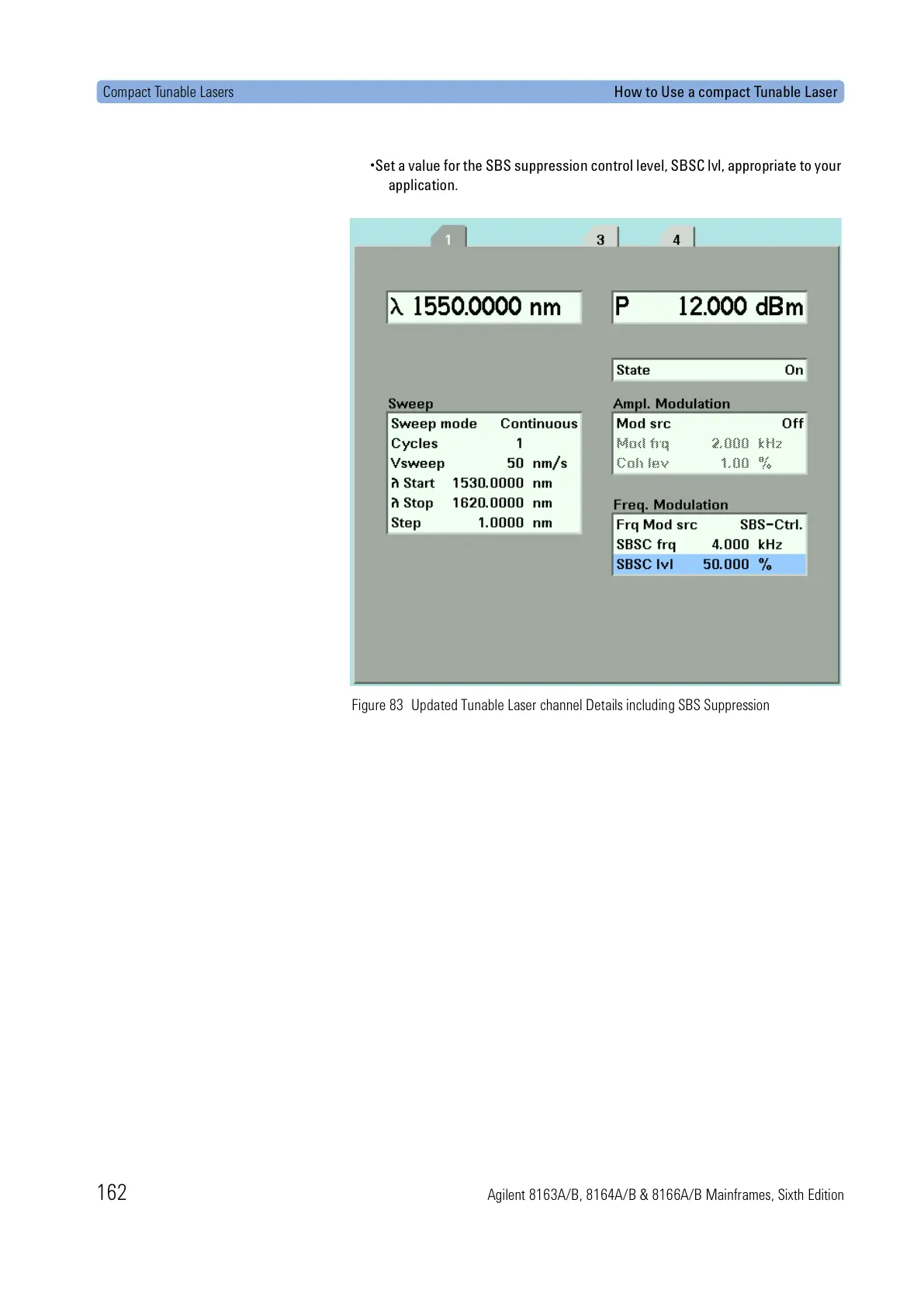

Figure 83 Updated Tunable Laser channel Details including SBS Suppression
