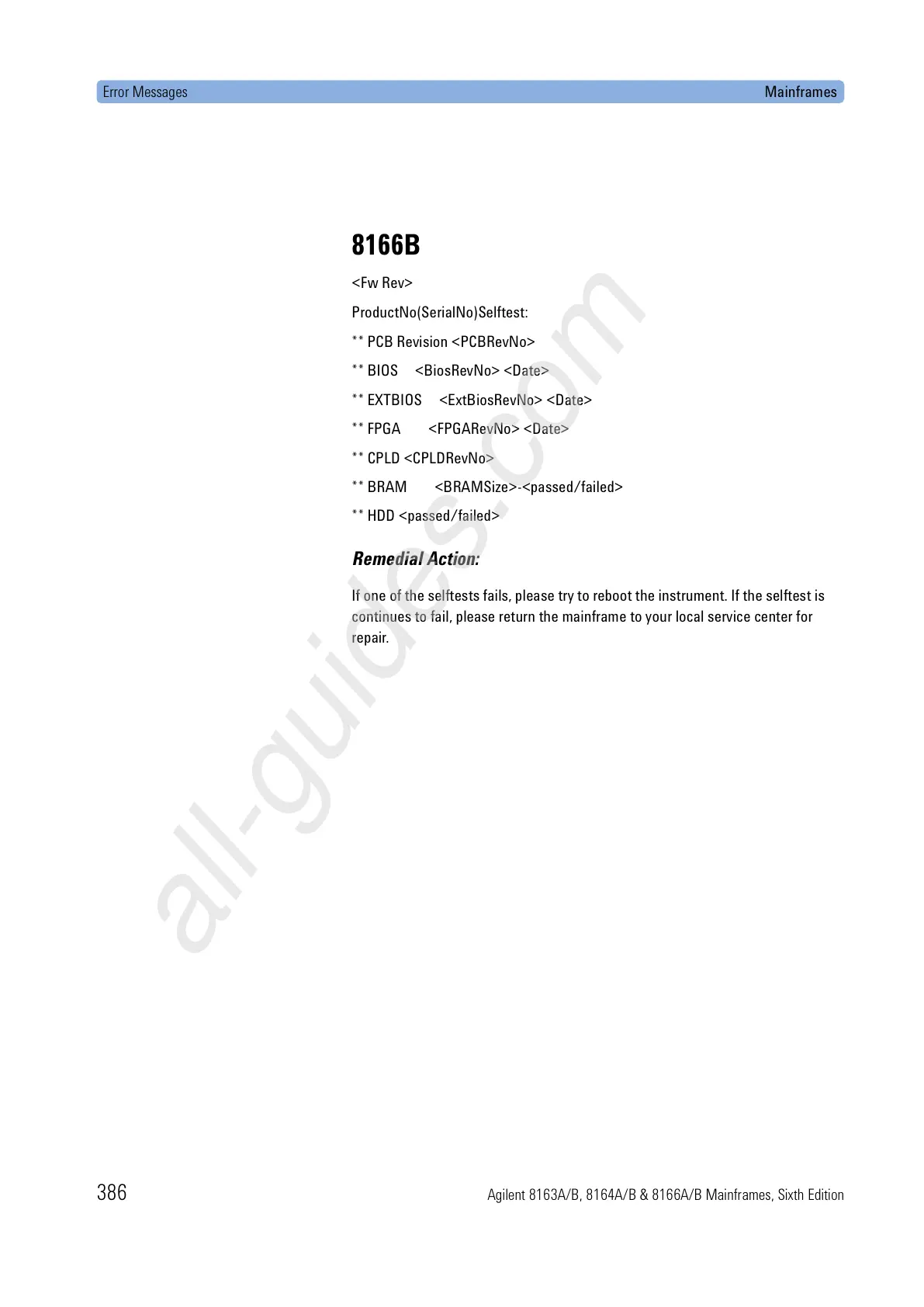

Error Messages Mainframes

386 Agilent 8163A/B, 8164A/B & 8166A/B Mainframes, Sixth Edition

8166B

ProductNo(SerialNo)Selftest:

** PCB Revision <PCBRevNo>

** BIOS <BiosRevNo> <Date>

** EXTBIOS <ExtBiosRevNo> <Date>

** FPGA <FPGARevNo> <Date>

** CPLD <CPLDRevNo>

** BRAM <BRAMSize>-<passed/failed>

** HDD <passed/failed>

Remedial Action:

If one of the selftests fails, please try to reboot the instrument. If the selftest is

continues to fail, please return the mainframe to your local service center for

repair.
