The PACT Application Applications

Agilent 8163A/B, 8164A/B & 8166A/B Mainframes, Sixth Edition 275

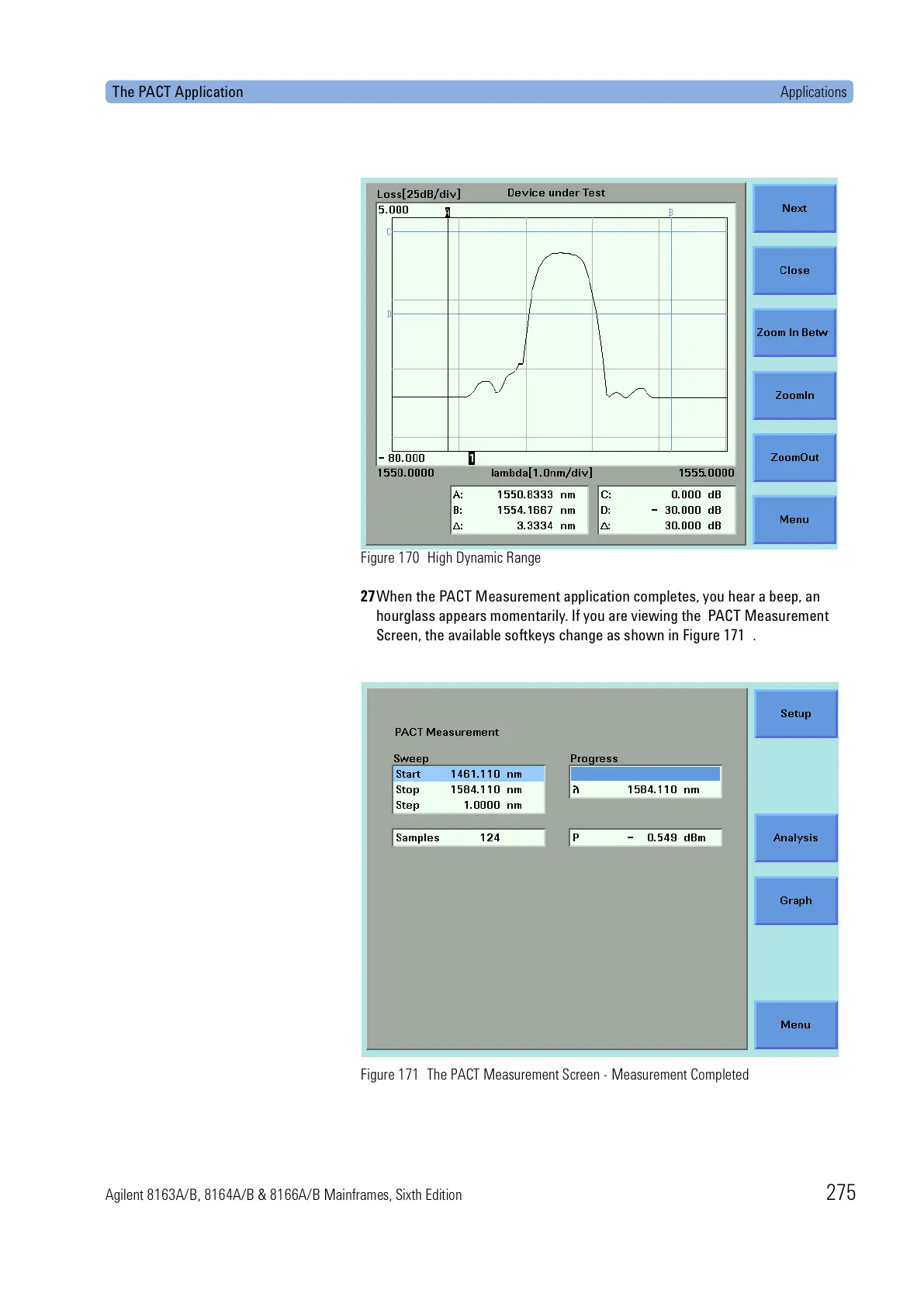

Figure 170 High Dynamic Range

27When the PACT Measurement application completes, you hear a beep, an

hourglass appears momentarily. If you are viewing the PACT Measurement

Screen, the available softkeys change as shown in Figure 171 .

Figure 171 The PACT Measurement Screen - Measurement Completed
