How to Set the Wavelength Tunable Lasers

Agilent 8163A/B, 8164A/B & 8166A/B Mainframes, Sixth Edition 131

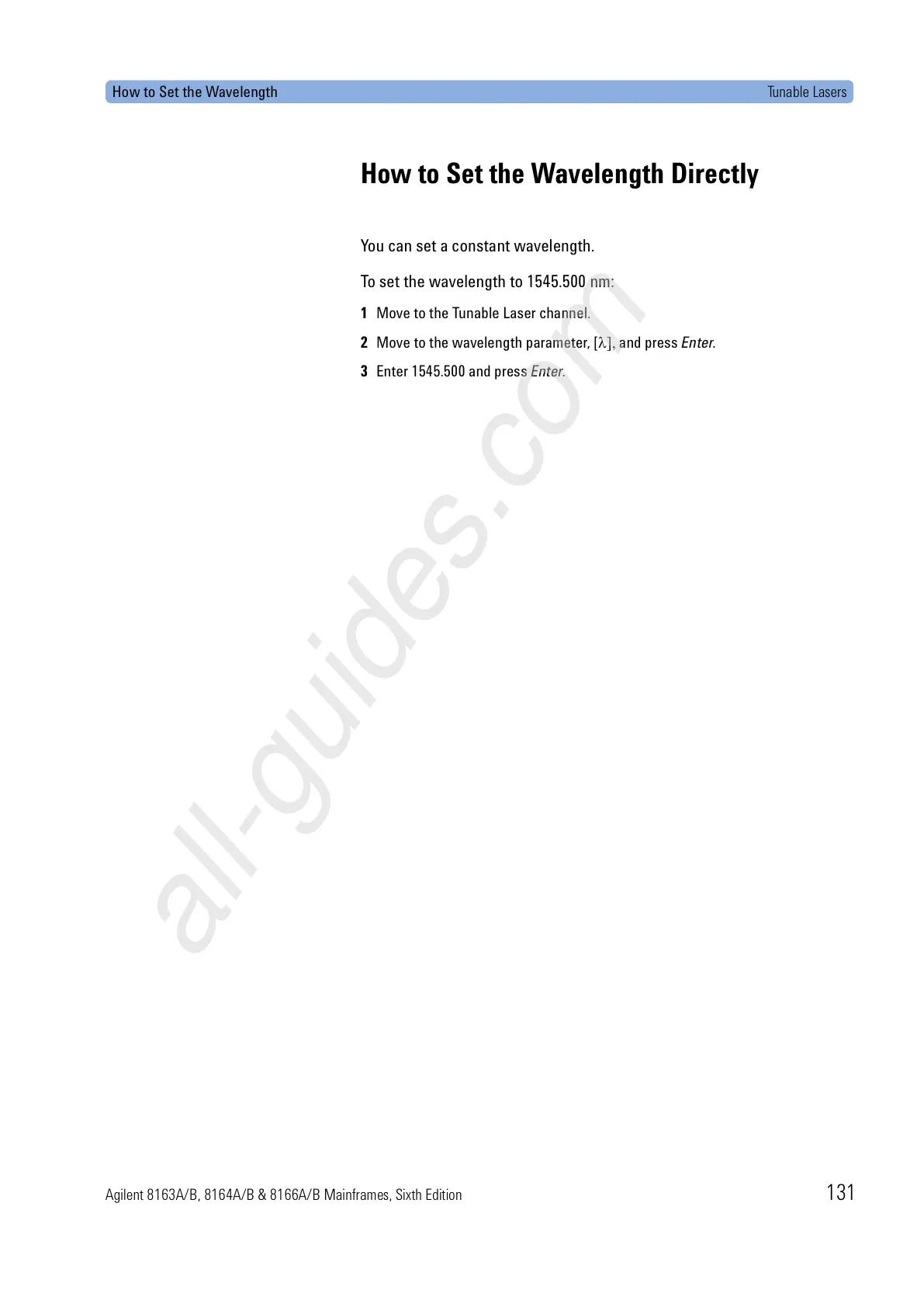

How to Set the Wavelength Directly

You can set a constant wavelength.

To set the wavelength to 1545.500 nm:

1 Move to the Tunable Laser channel.

2 Move to the wavelength parameter, [λ], and press Enter.

3 Enter 1545.500 and press Enter.
