Agilent Technologies 8163A - Figure 74 Performing a Manual Sweep

To Next Page

To Previous Page

How to Perform a Wavelength Sweep Tunable Lasers

Agilent 8163A/B, 8164A/B & 8166A/B Mainframes, Sixth Edition 141

6 Press [Run Swp] to start the sweep. The screen in Figure 74 then appears.

7 You ca n:

• press [Next] to move on to the next wavelength step,

• press [Prev] to move on to the previous wavelength step, or

• press [Stop] to end the sweep.

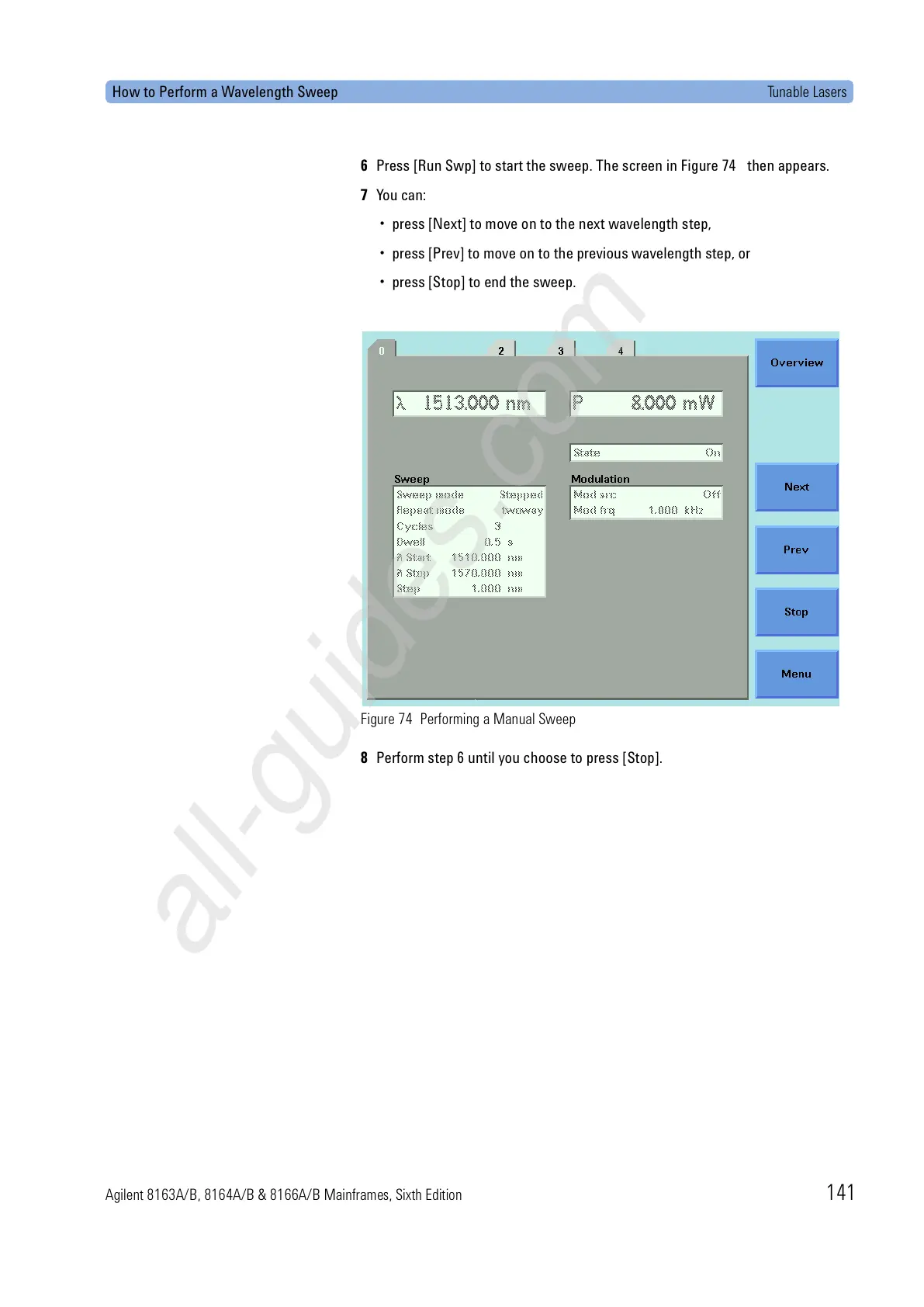

Figure 74 Performing a Manual Sweep

8 Perform step 6 until you choose to press [Stop].
