Additional Information Using the System Utilities

64 Agilent 8163A/B, 8164A/B & 8166A/B Mainframes, Sixth Edition

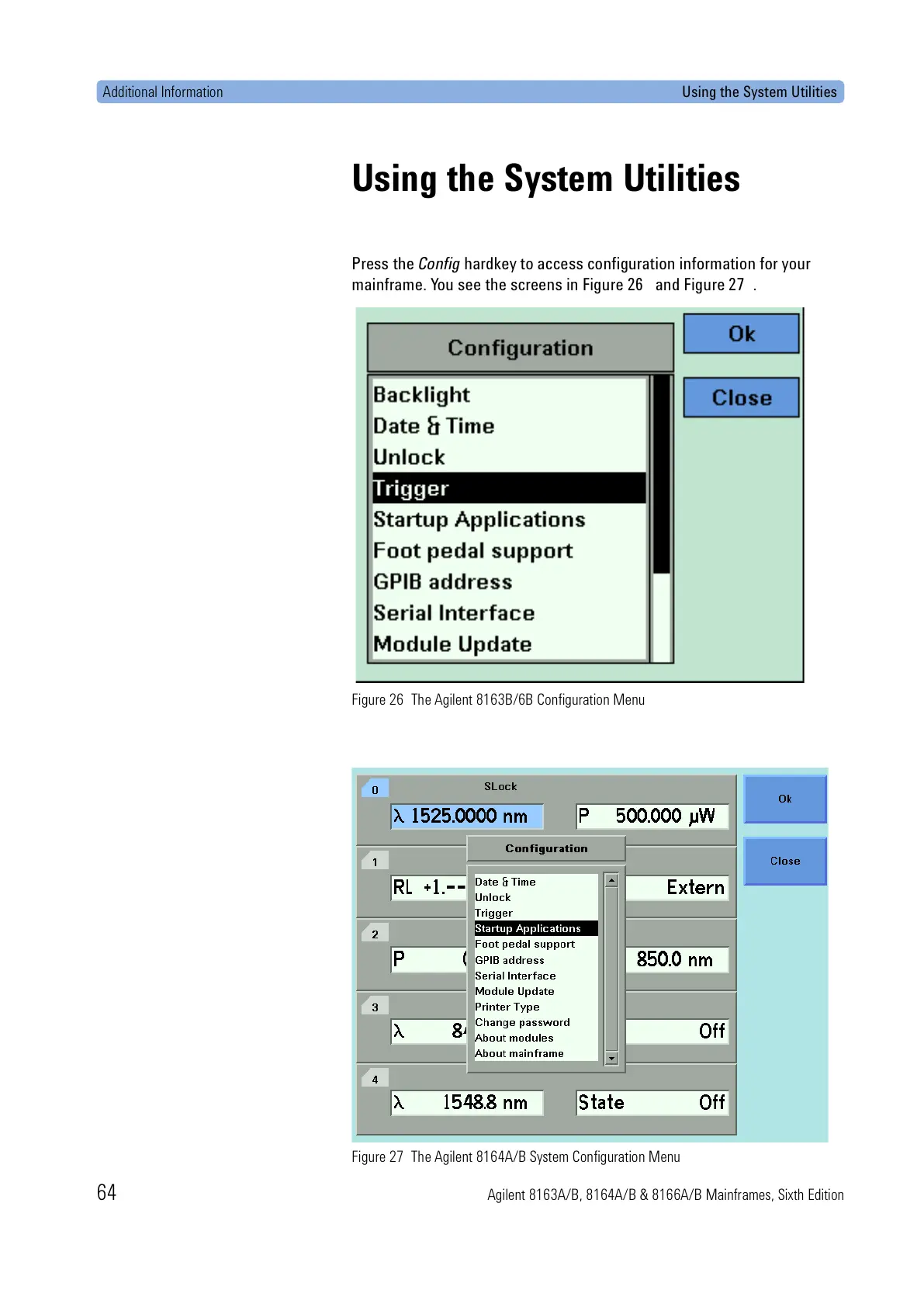

Using the System Utilities

Press the Config hardkey to access configuration information for your

mainframe. You see the screens in Figure 26 and Figure 27 .

Figure 26 The Agilent 8163B/6B Configuration Menu

Figure 27 The Agilent 8164A/B System Configuration Menu
