A Description of the User Interface Getting Started

Agilent 8163A/B, 8164A/B & 8166A/B Mainframes, Sixth Edition 43

How to Navigate/Modify the Display

Overview Screen

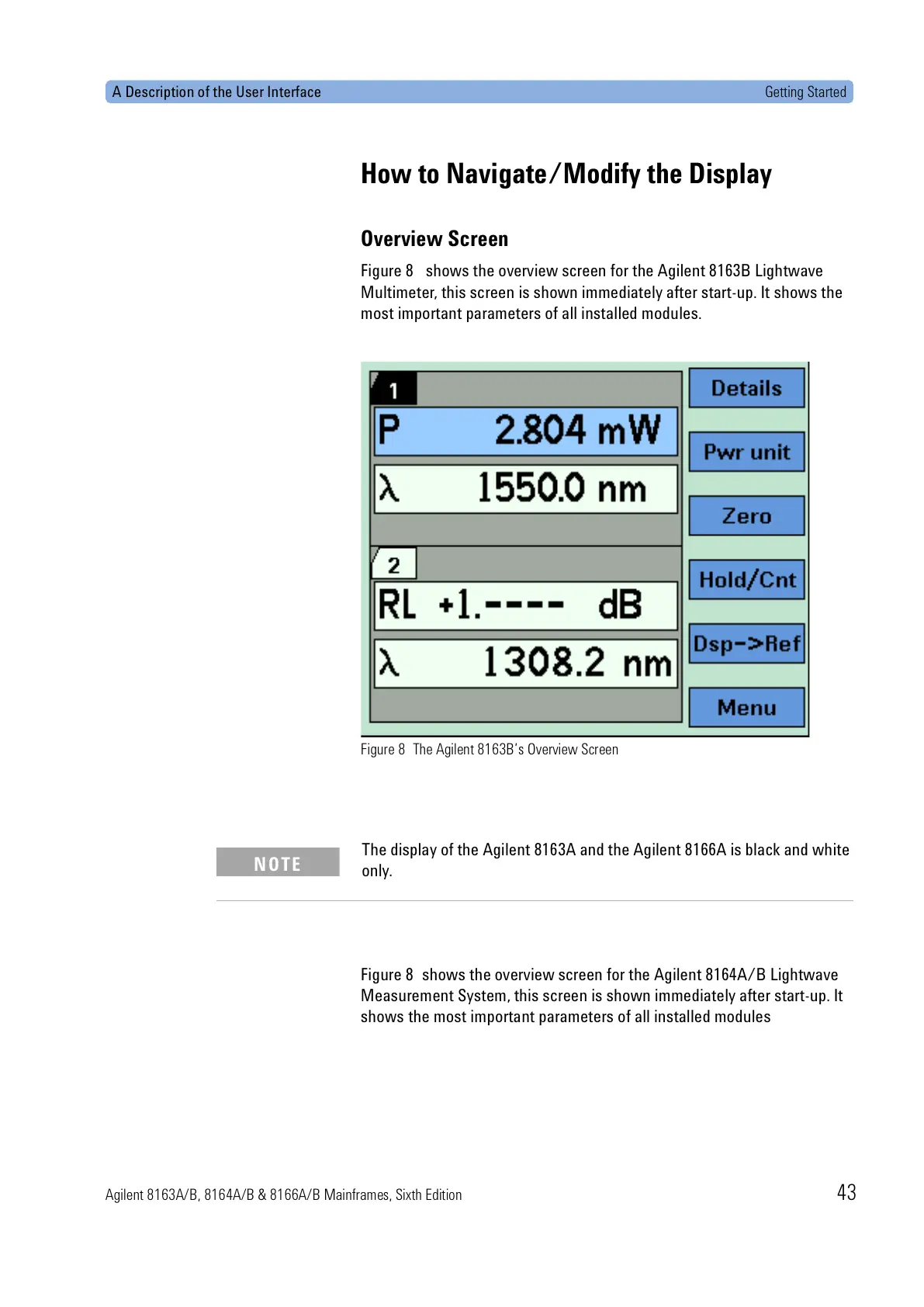

Figure 8 shows the overview screen for the Agilent 8163B Lightwave

Multimeter, this screen is shown immediately after start-up. It shows the

most important parameters of all installed modules.

Figure 8 The Agilent 8163B’s Overview Screen

Figure 8 shows the overview screen for the Agilent 8164A/B Lightwave

Measurement System, this screen is shown immediately after start-up. It

shows the most important parameters of all installed modules

The display of the Agilent 8163A and the Agilent 8166A is black and white

only.
