Laser Safety Information Getting Started

Agilent 8163A/B, 8164A/B & 8166A/B Mainframes, Sixth Edition 31

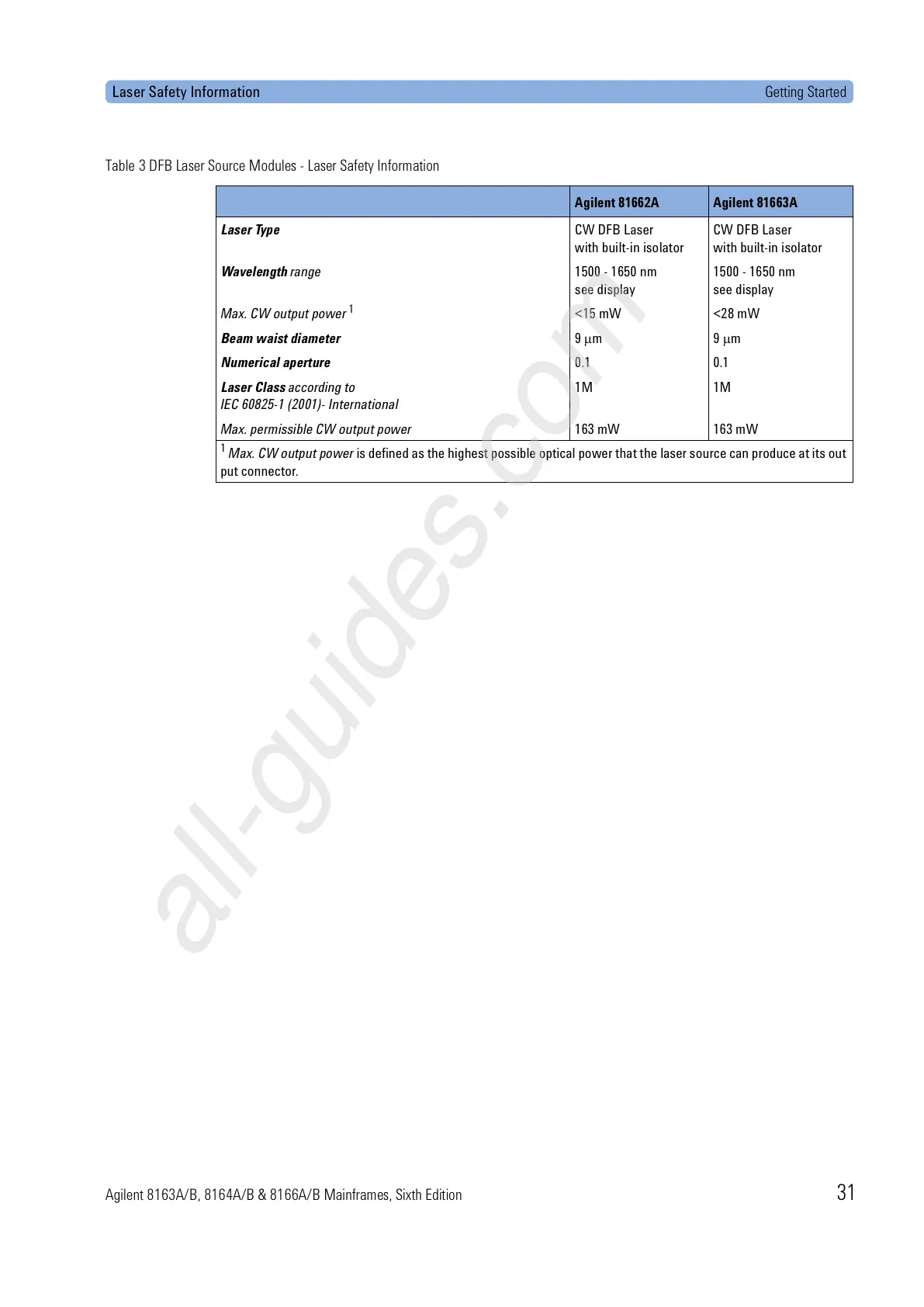

Table 3 DFB Laser Source Modules - Laser Safety Information

Agilent 81662A Agilent 81663A

Laser Type CW DFB Laser

with built-in isolator

CW DFB Laser

with built-in isolator

Wavelength range 1500 - 1650 nm

see display

1500 - 1650 nm

see display

Max. CW output power

<15 mW <28 mW

Beam waist diameter 9 µm 9 µm

Numerical aperture 0.1 0.1

Laser Class according to

IEC 60825-1 (2001)- International

1M 1M

Max. permissible CW output power 163 mW 163 mW

Max. CW output power is defined as the highest possible optical power that the laser source can produce at its out

put connector.
