The Logging Application Applications
Agilent 8163A/B, 8164A/B & 8166A/B Mainframes, Sixth Edition 245
4 To deselect a Power Meter channel, move to the Power Meter as denoted by
slot and channel numbers, see “Slot and Channel Numbers” on page 41, press
[Unset].
5 To select a Power Meter channel, press [Edit], move to the Power Meter as
denoted by slot and channel numbers, see “Slot and Channel Numbers” on
page 41, press [Set].
6 Perform steps until you have selected the required Power Meters for your
application and press Enter.
Setting Power Meter Parameters

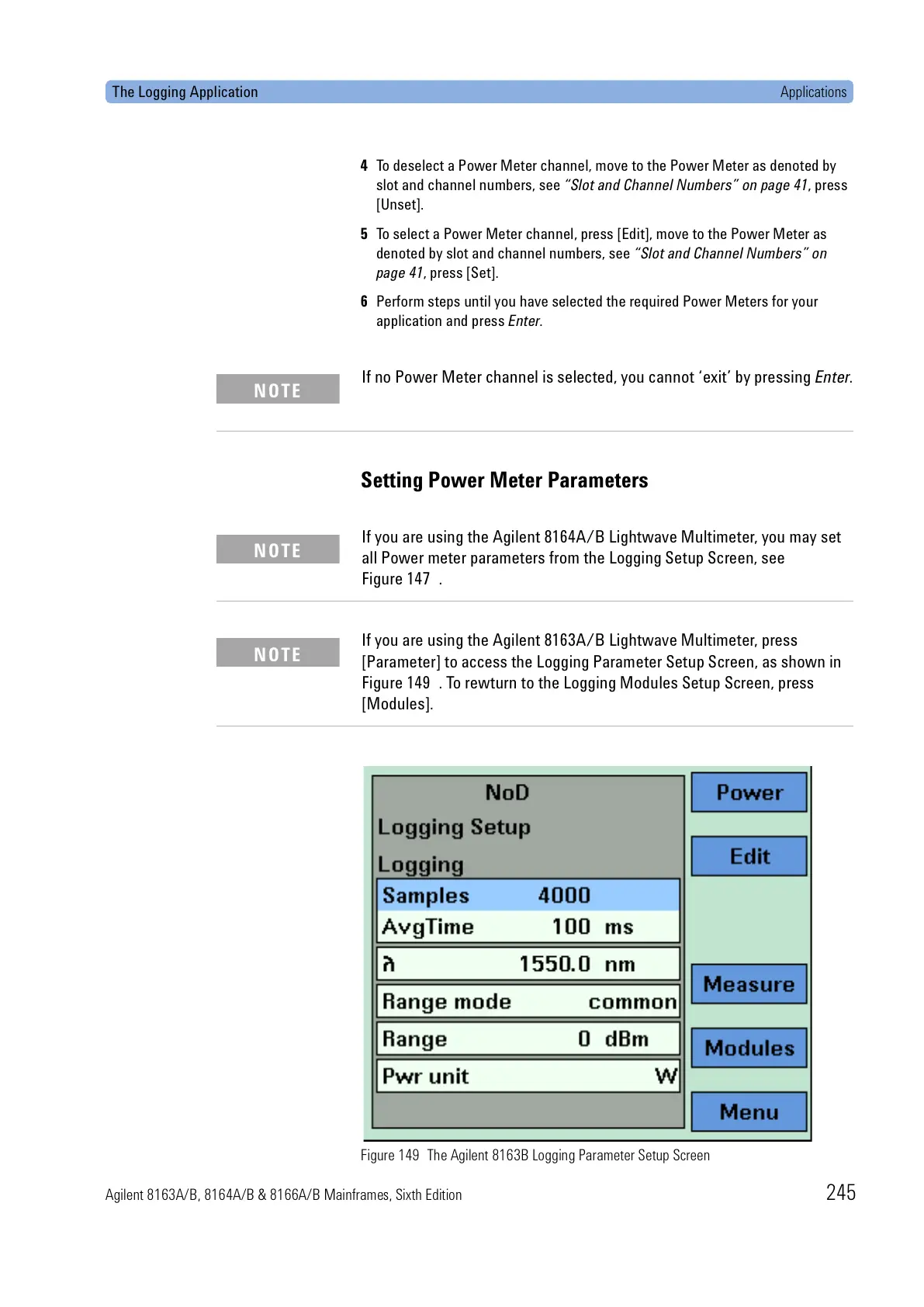

Figure 149 The Agilent 8163B Logging Parameter Setup Screen
If no Power Meter channel is selected, you cannot ‘exit’ by pressing Enter.
NOTE
If you are using the Agilent 8164A/B Lightwave Multimeter, you may set
all Power meter parameters from the Logging Setup Screen, see
Figure 147 .
If you are using the Agilent 8163A/B Lightwave Multimeter, press
[Parameter] to access the Logging Parameter Setup Screen, as shown in
Figure 149 . To rewturn to the Logging Modules Setup Screen, press
[Modules].
NOTE
NOTE
