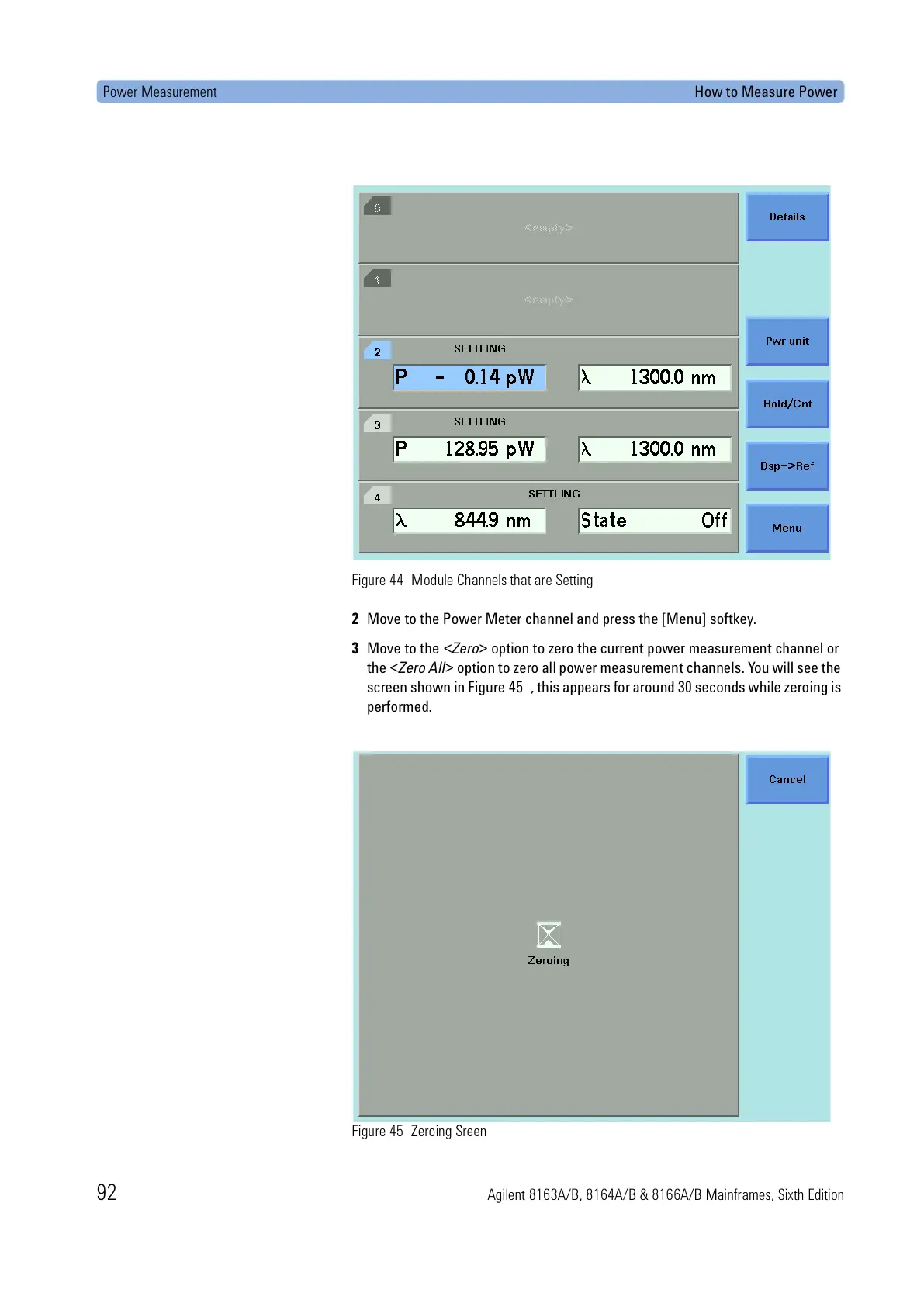

Power Measurement How to Measure Power

92 Agilent 8163A/B, 8164A/B & 8166A/B Mainframes, Sixth Edition

Figure 44 Module Channels that are Setting

2 Move to the Power Meter channel and press the [Menu] softkey.

3 Move to the <Zero> option to zero the current power measurement channel or

the <Zero All> option to zero all power measurement channels. You will see the

screen shown in Figure 45 , this appears for around 30 seconds while zeroing is

performed.

Figure 45 Zeroing Sreen
