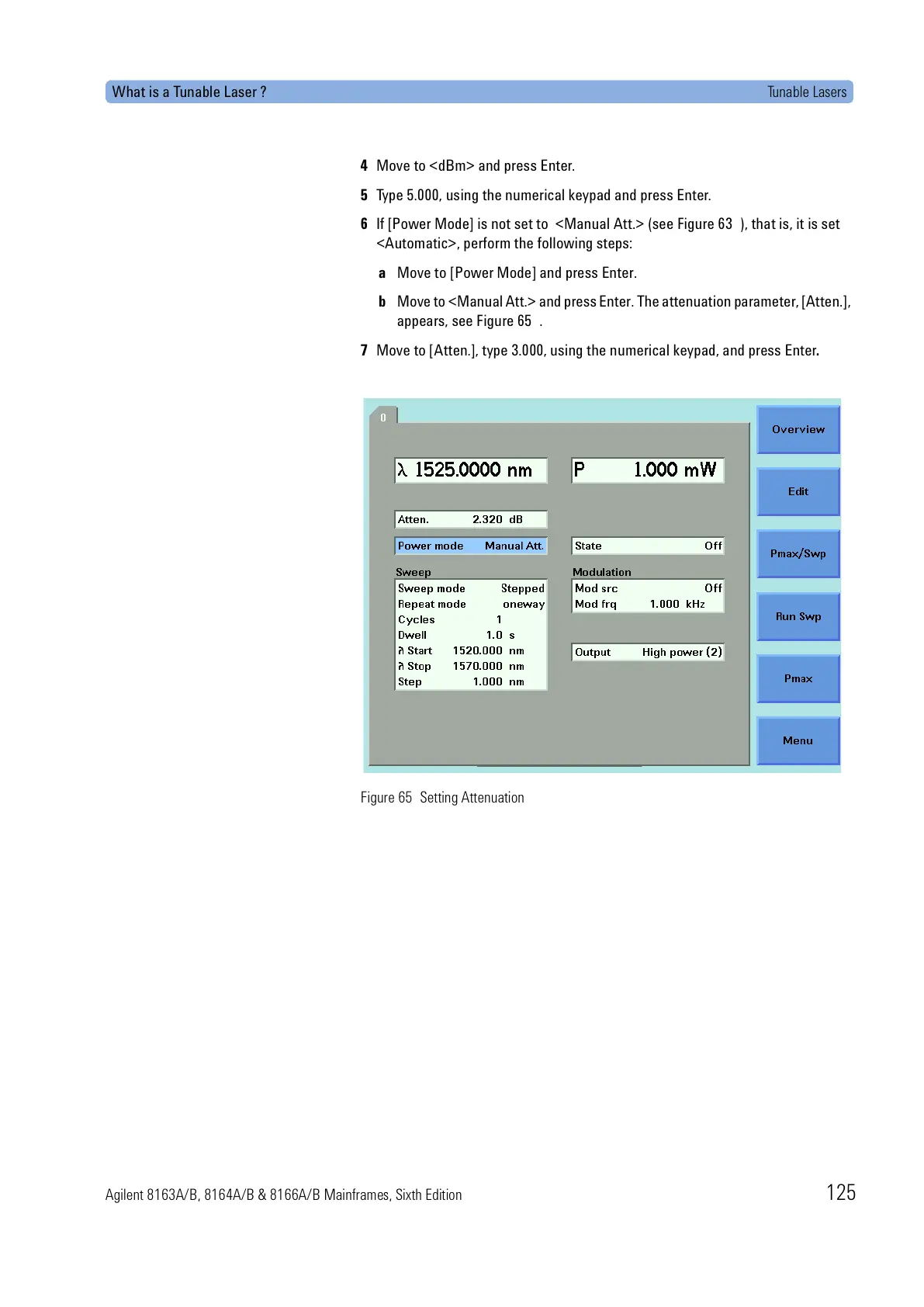

Agilent 8163A/B, 8164A/B & 8166A/B Mainframes, Sixth Edition 125

4 Move to <dBm> and press Enter.

5 Type 5.000, using the numerical keypad and press Enter.

6 If [Power Mode] is not set to <Manual Att.> (see Figure 63 ), that is, it is set

<Automatic>, perform the following steps:

a Move to [Power Mode] and press Enter.

b Move to <Manual Att.> and press Enter. The attenuation parameter, [Atten.],

appears, see Figure 65 .

7 Move to [Atten.], type 3.000, using the numerical keypad, and press Enter.

Figure 65 Setting Attenuation
