Applications Working with Application Graphs

238 Agilent 8163A/B, 8164A/B & 8166A/B Mainframes, Sixth Edition

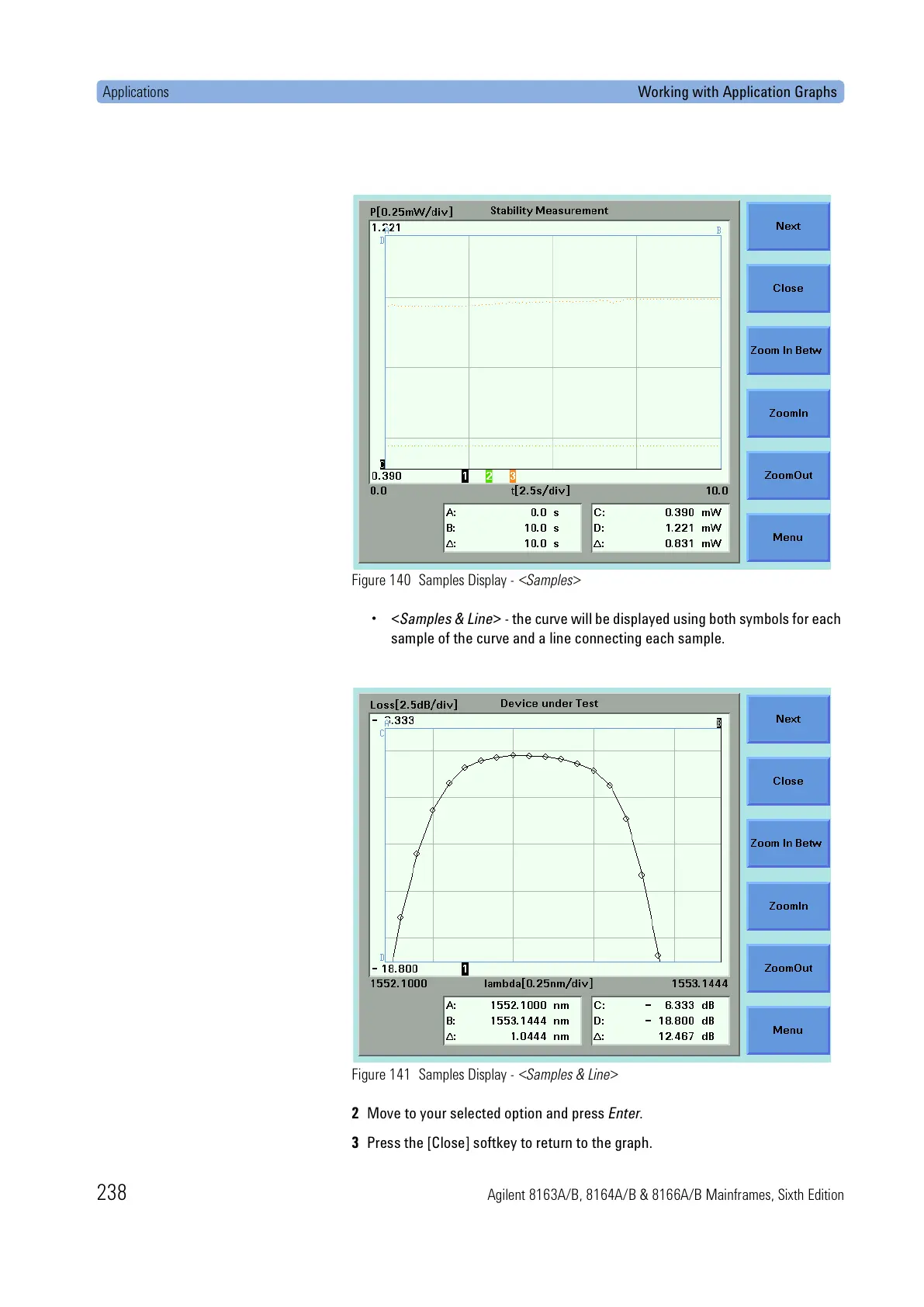

Figure 140 Samples Display - <Samples>

•<Samples & Line> - the curve will be displayed using both symbols for each

sample of the curve and a line connecting each sample.

Figure 141 Samples Display - <Samples & Line>

2 Move to your selected option and press Enter.

3 Press the [Close] softkey to return to the graph.
