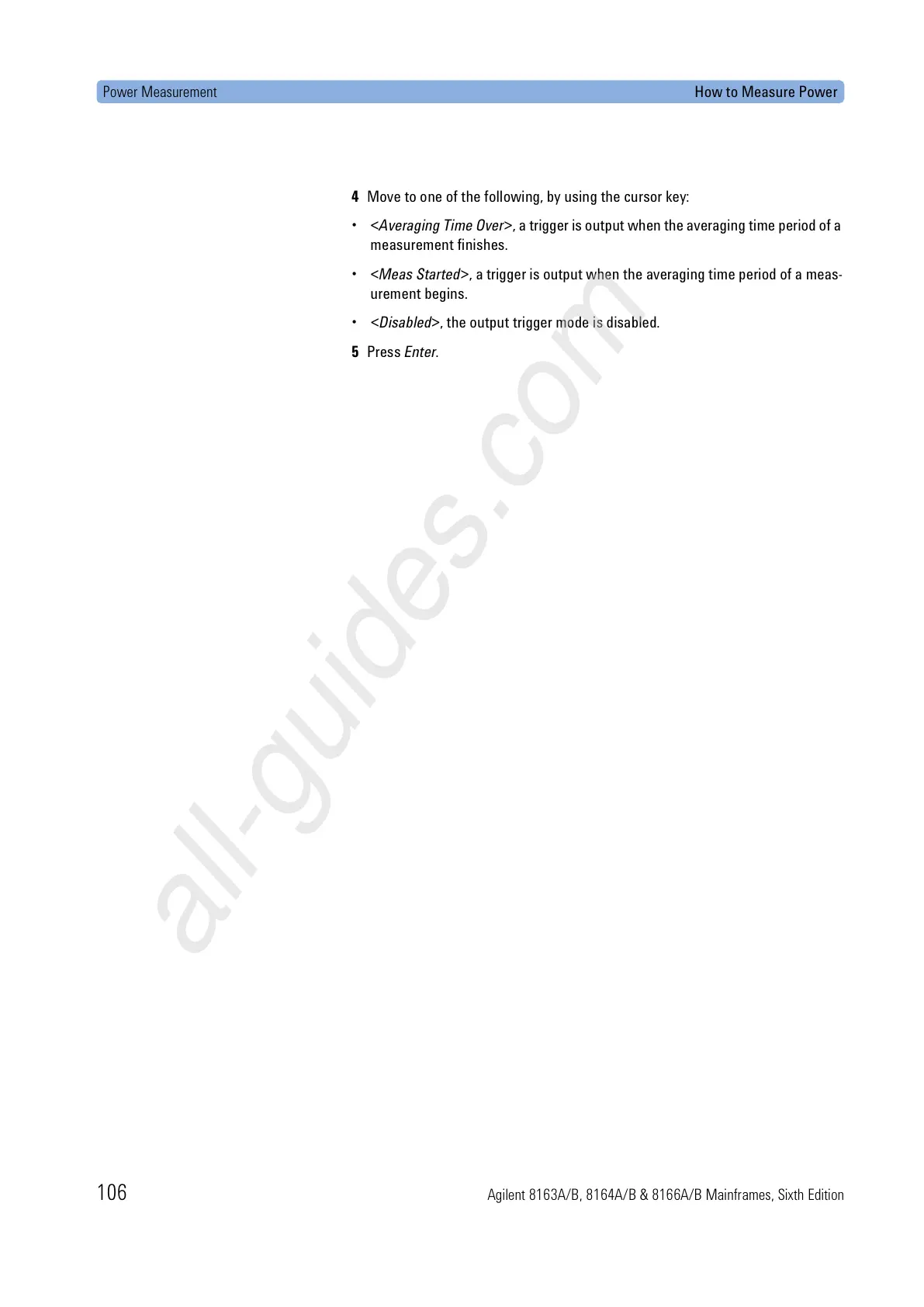

Power Measurement How to Measure Power

106 Agilent 8163A/B, 8164A/B & 8166A/B Mainframes, Sixth Edition

4 Move to one of the following, by using the cursor key:

•<Averaging Time Over>, a trigger is output when the averaging time period of a

measurement finishes.

•<Meas Started>, a trigger is output when the averaging time period of a meas-

urement begins.

• <Disabled>, the output trigger mode is disabled.

5 Press Enter.
