Getting Started A Description of the User Interface

52 Agilent 8163A/B, 8164A/B & 8166A/B Mainframes, Sixth Edition

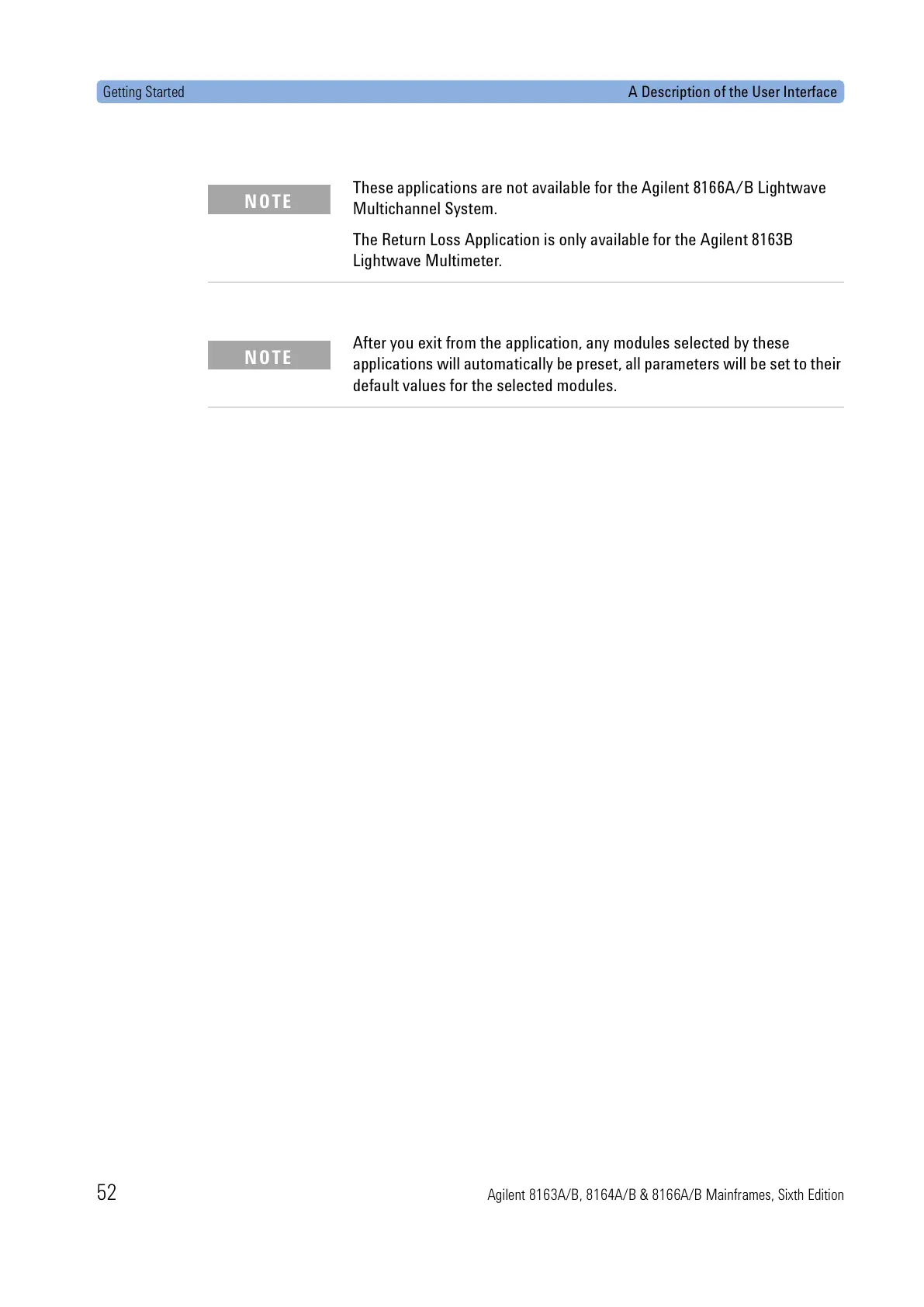

These applications are not available for the Agilent 8166A/B Lightwave

Multichannel System.

The Return Loss Application is only available for the Agilent 8163B

Lightwave Multimeter.

NOTE

After you exit from the application, any modules selected by these

applications will automatically be preset, all parameters will be set to their

default values for the selected modules.

NOTE
