Agilent Technologies 8720ES Service Guide

Chapter 2 2-123
System Verification and Performance Tests
Agilent 8753ET System Verification and Performance Tests

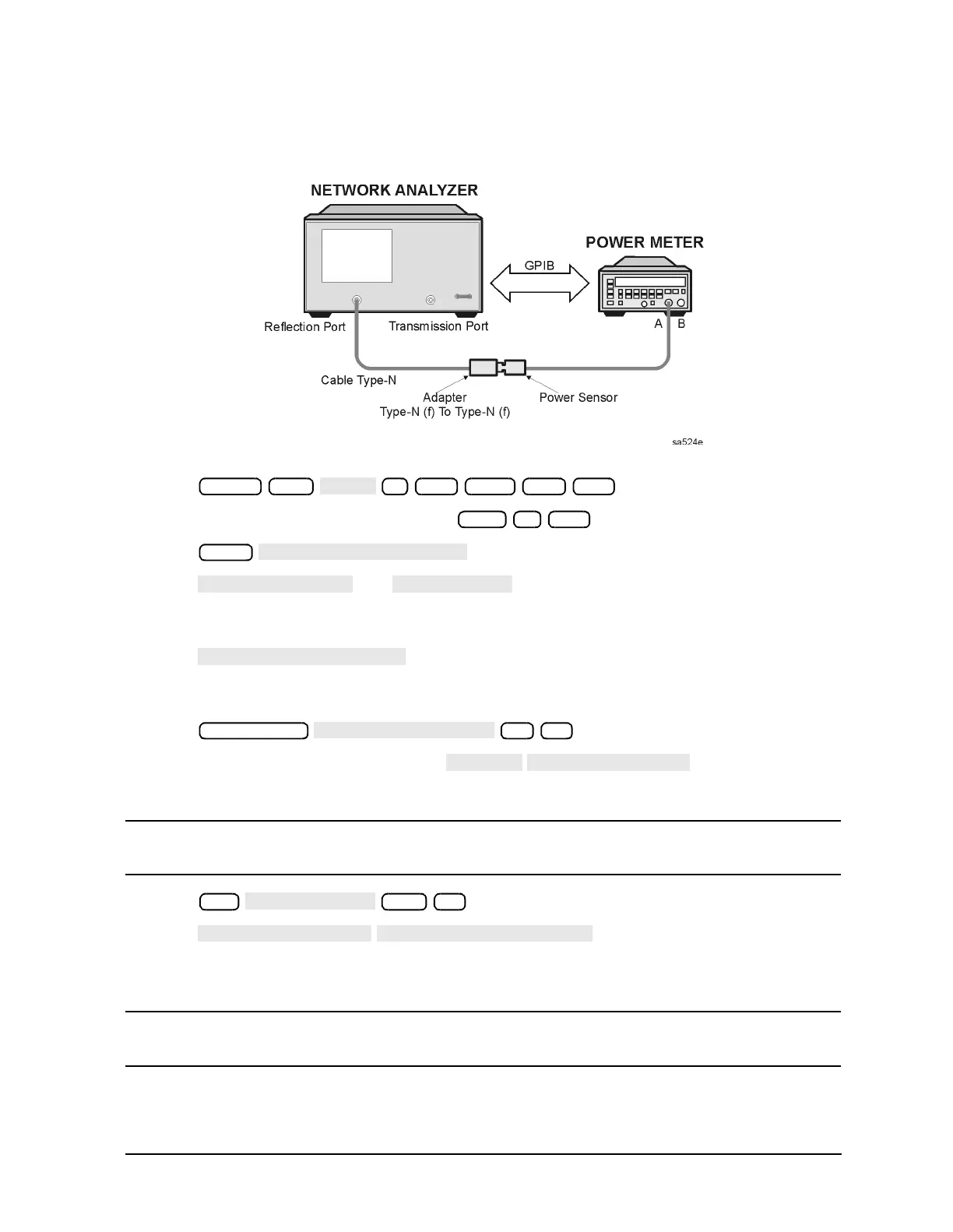

Figure 2-69 Power Meter Calibration Setup
3. Press .
4. If your analyzer has Option 006, press .
5. Press .
6. Press and until the analyzer shows the correct
power meter model. (Use the 438A/437 selection if the power meter is an E4419B or
E4418B.)
7. Press . The default power meter GPIB address is 13. Make
sure it is the same as your power meter GPIB address. Otherwise, use the analyzer
front panel keypad to enter the correct GPIB address for your power meter.
8. Press .
9. For analyzers with Option 004, press to turn the auto
power range off.
NOTE The analyzer displays the PRm annotation, indicating that the analyzer power
range is set to MANUAL.
10.Press .
11.Press . Refer to the back of the power
sensor to locate the different calibration factor values along with their corresponding
frequencies.
NOTE The analyzer’s calibration factor sensor table can hold a maximum of 55
calibration factor data points.
Preset Avg
IF BW
3
k/m
Start 300 k/m
Stop 3 G/n
Local
SYSTEM CONTROLLER
SET ADDRESSES
POWER MTR
ADDRESS: P MTR/GPIB
Sweep Setup
NUMBER of POINTS
51 x1
POWER
PWR RANGE MAN
Cal
PWRMTR CAL
−10
x1
LOSS/SENSR LISTS
CAL FACTOR SENSOR A
