13-48 Chapter 13

Replaceable Parts

Replaceable Part Listings

8753ET: Hardware, Bottom

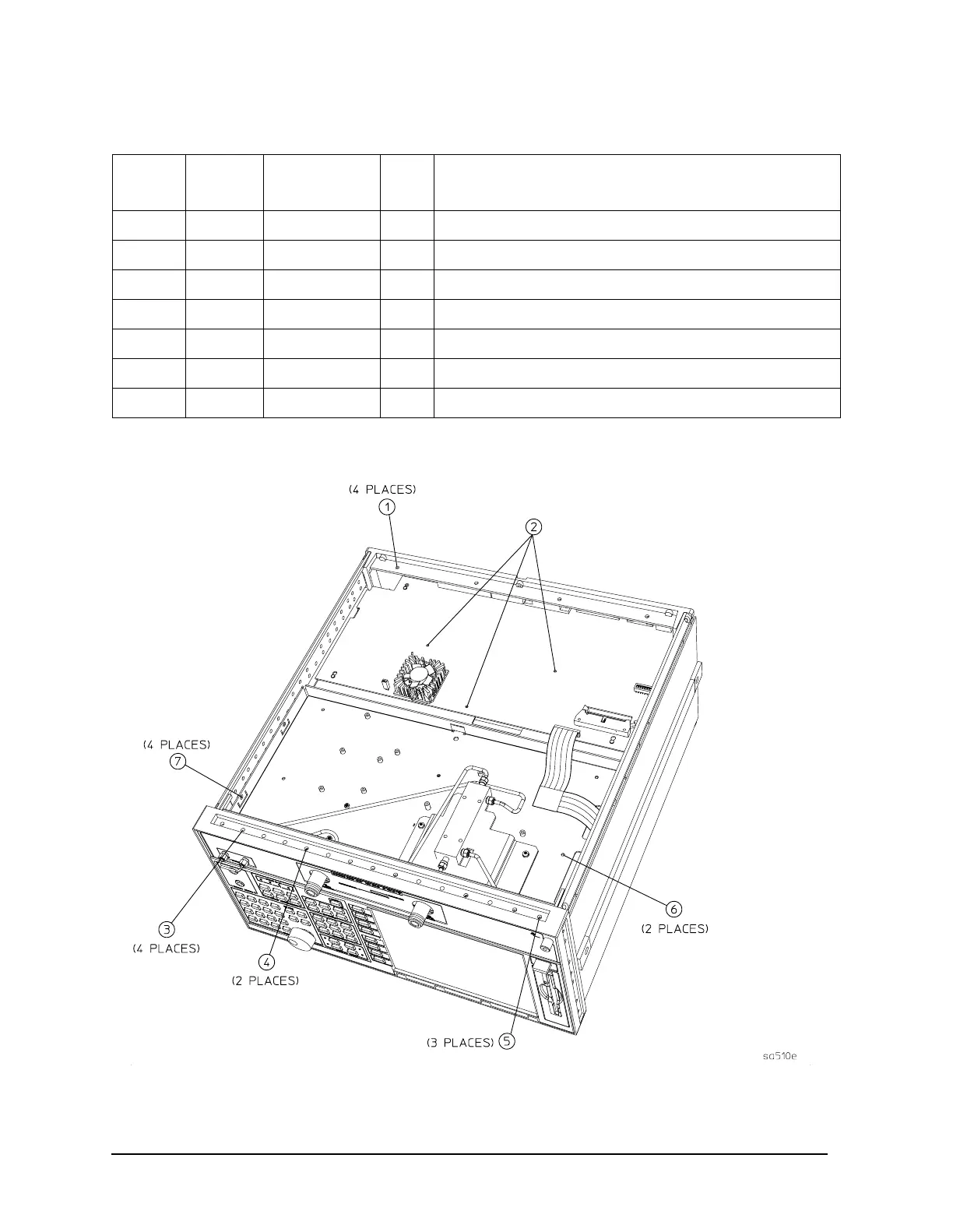

Figure 13-23 8753ET: Hardware, Bottom

Ref.

Desig.

Option HP/Agilent

Part Number

Qty Description

1 0515-0458 4 SCREW-MACHINE M3.5×8 CW-PN-TX

2 0515-0430 3 SCREW-MACHINE M3.0×6 CW-PN-TX

3 0515-2086 4 SCREW-MACHINE M4.0×7 PC-FL-TX

4 0515-2038 2 SCREW-MACHINE M3.5×10 PC-FL-TX

5 0515-1400 3 SCREW-MACHINE M3.5×8 PC-FL-TX

6 0515-0375 2 SCREW-MACHINE M3.0×16 CW-PN-TX

7 0515-0458 4 SCREW-MACHINE M3.0×16 CW-PN-TX
