13-52 Chapter 13

Replaceable Parts

Replaceable Part Listings

8753ES: Hardware, Test Set Deck

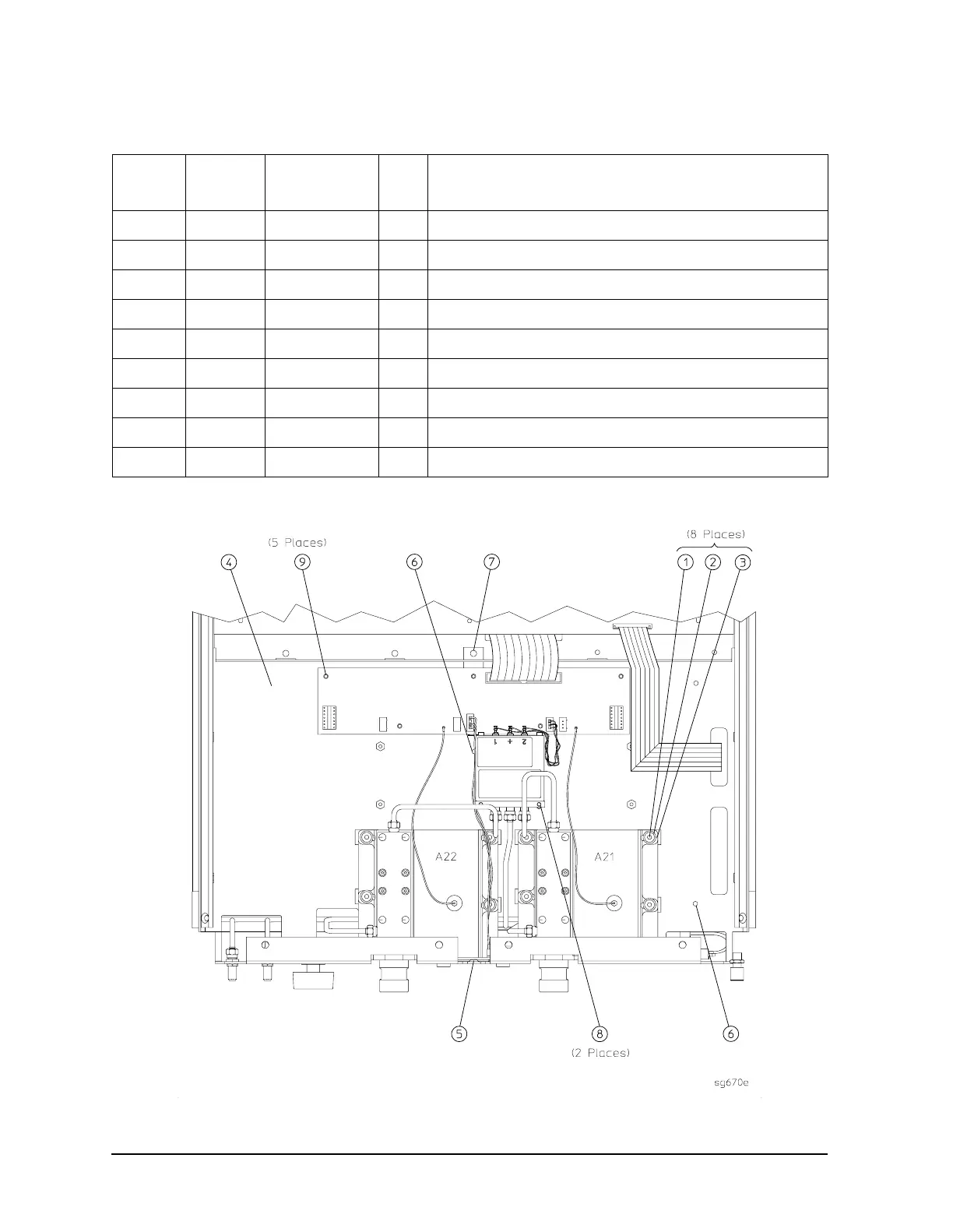

Figure 13-27 8753ES: Hardware, Test Set Deck

Ref.

Desig.

Option HP/Agilent

Part Number

Qty Description

1 08753-20296 8 SHOULDER SCREW

2 08753-40013 8 GUIDE WASHER

3 08753-20293 8 PRESSURE SPRING

4 08753-00127 1 CHASSIS-TEST SET

5 0515-1946 1 SCREW-MACHINE M3.0×6 PC-FL-TX

6 0515-0375 2 SCREW-MACHINE M3.0×16 CW-PN-TX

7 0515-0430 1 SCREW-MACHINE M3.0×6 CW-PN-TX

8 0515-0667 2 SCREW-MACHINE M3.0×25 CW-PN-TX

9 0515-0430 5 SCREW-MACHINE M3.0×6 CW-PN-TX

Warranty Information2
