13-14 Chapter 13

Replaceable Parts

Replaceable Part Listings

8753ET: Major Assemblies, Bottom

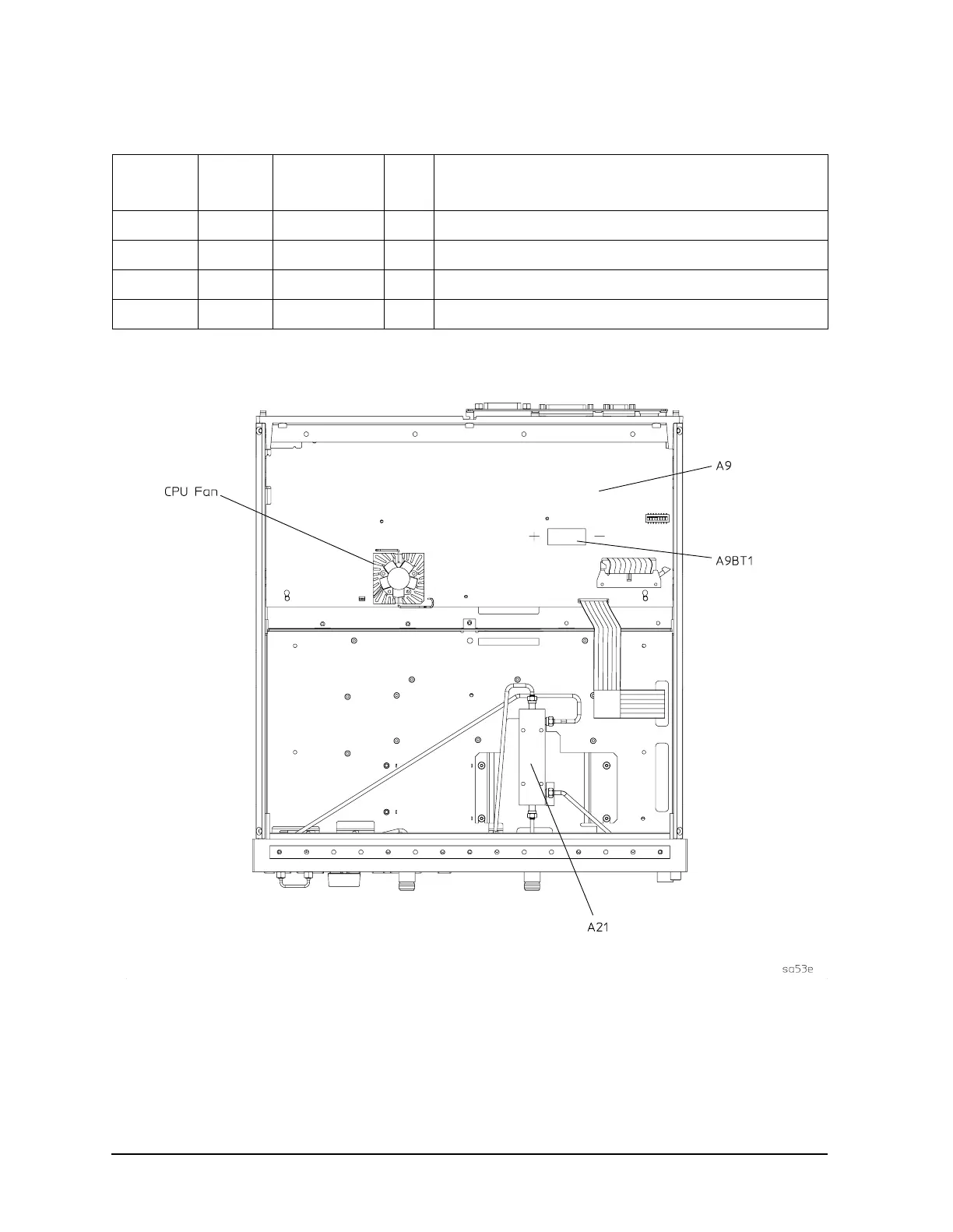

Figure 13-4 8753ET: Major Assemblies, Bottom

Ref.

Desig.

Option HP/Agilent

Part Number

Qty Description

A9 08753-60315 1 CPU REPAIR KIT (EXCHANGE: 08753-69315)

CPU FAN 5060-8776 1 A9 CPU FAN

A9BT1 1420-0338 1 BATTERY-LITHIUM 3V 1.2AH

A21 5087-7069 1 ASSY-DUAL COUPLER (EXCHANGE: 5087-6069)
