Agilent Technologies 8720ES Service Guide

13-58 Chapter 13
Replaceable Parts
Replaceable Part Listings
8753ET/ES: Chassis Parts, Inside

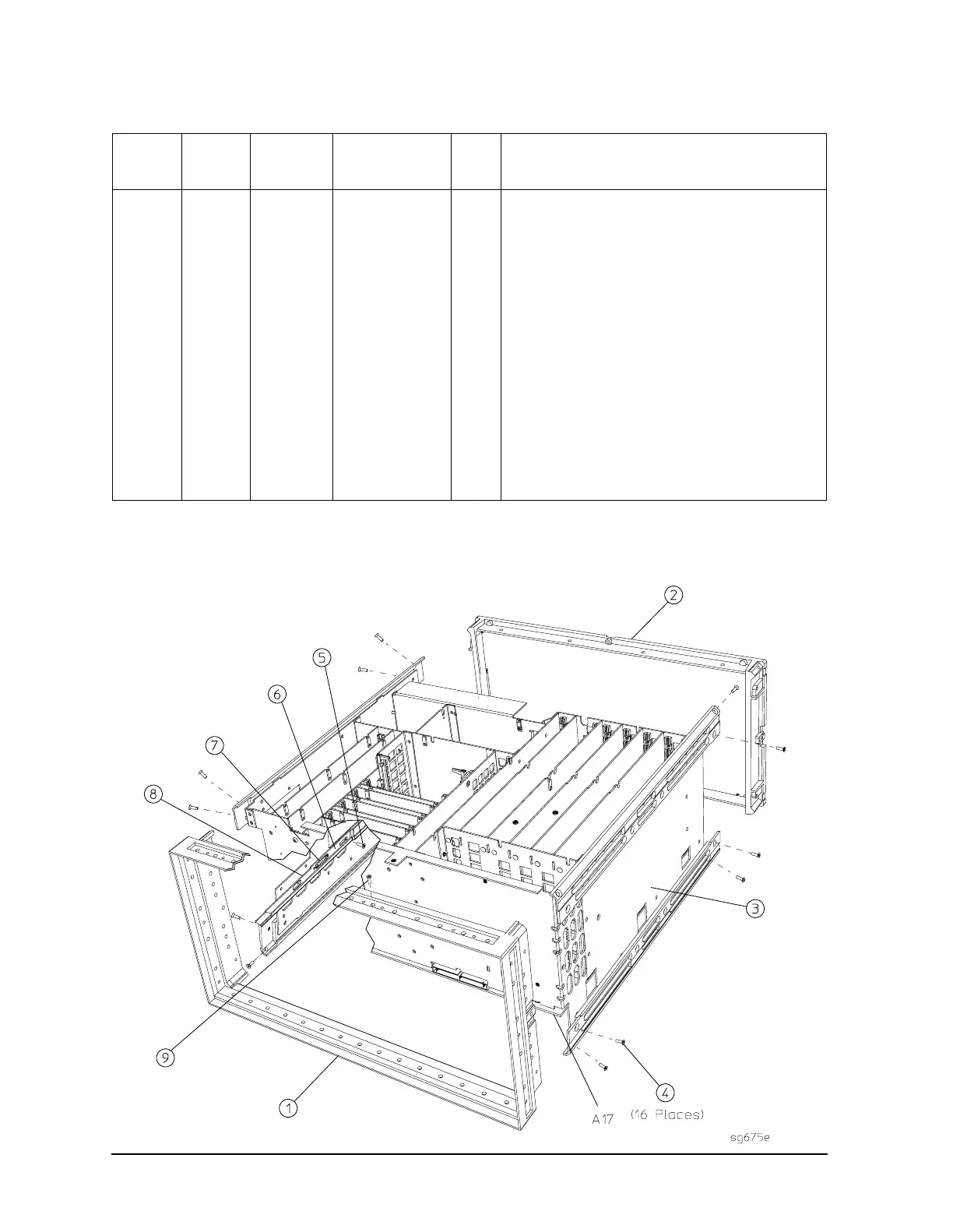

Figure 13-32 8753ET/ES: Chassis Parts, Inside
Ref.
Desig.
ET/ES Option HP/Agilent
Part Number
Qty Description
1 ET/ES 5022-1190 1 FRONT PANEL FRAME
2 ET/ES 5021-5808 1 REAR FRAME
3 ET/ES 08753-60936 1 ASSY-CARDCAGE/MOTHER
4 ET/ES 0515-2086 16 SCREW SMM4.0×7 PCFLTX
5 ET/ES 0515-0430 1
SCREW M3.0×6 CWPNTX
a
a. Part of CARDCAGE/MOTHER assembly (item 3).
6 ET/ES 08720-00083 1
INSULATOR SWITCH
a
7 ET/ES 1460-1573 1 SPRING EXTENSION 0.138 OD
8 ET/ES 08720-00077 1
SWITCH ROD
a
9 ET/ES 0515-1400 1 SMM 3.5×8 PCFLTX
A17 ET/ES 08753-60360 1 BD ASSY-MOTHERBOARD
