13-50 Chapter 13

Replaceable Parts

Replaceable Part Listings

8753ET/ES: Hardware, Front

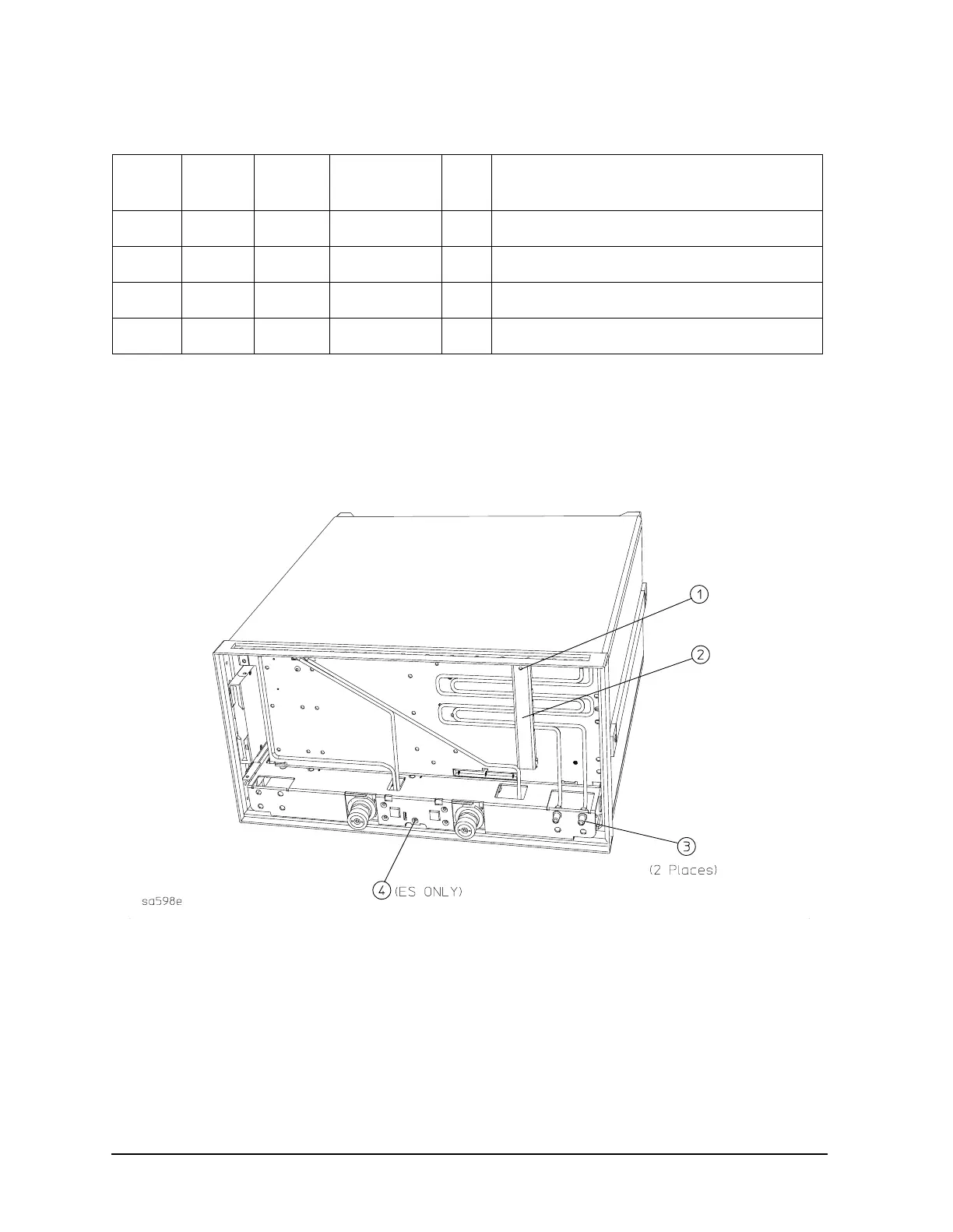

Figure 13-25 8753ET/ES: Hardware, Front

Ref.

Desig.

ET/ES Option HP/Agilent

Part Number

Qty Description

1 ET/ES 0515-0665

SMM 3.0×14 CWPNTX

2 ET/ES 08753-00137

BRACKET - CABLE SUPPORT

3 ET/ES 1250-1251

ADAPTER FEMALE SMA/FEMALE SMA

4 ES 0515-1946

SCREW-MACHINE M3.0×6 PC-FL-TX
