Chapter 3 3-41

Adjustments and Correction Constants

Fractional-N Frequency Range Adjustment

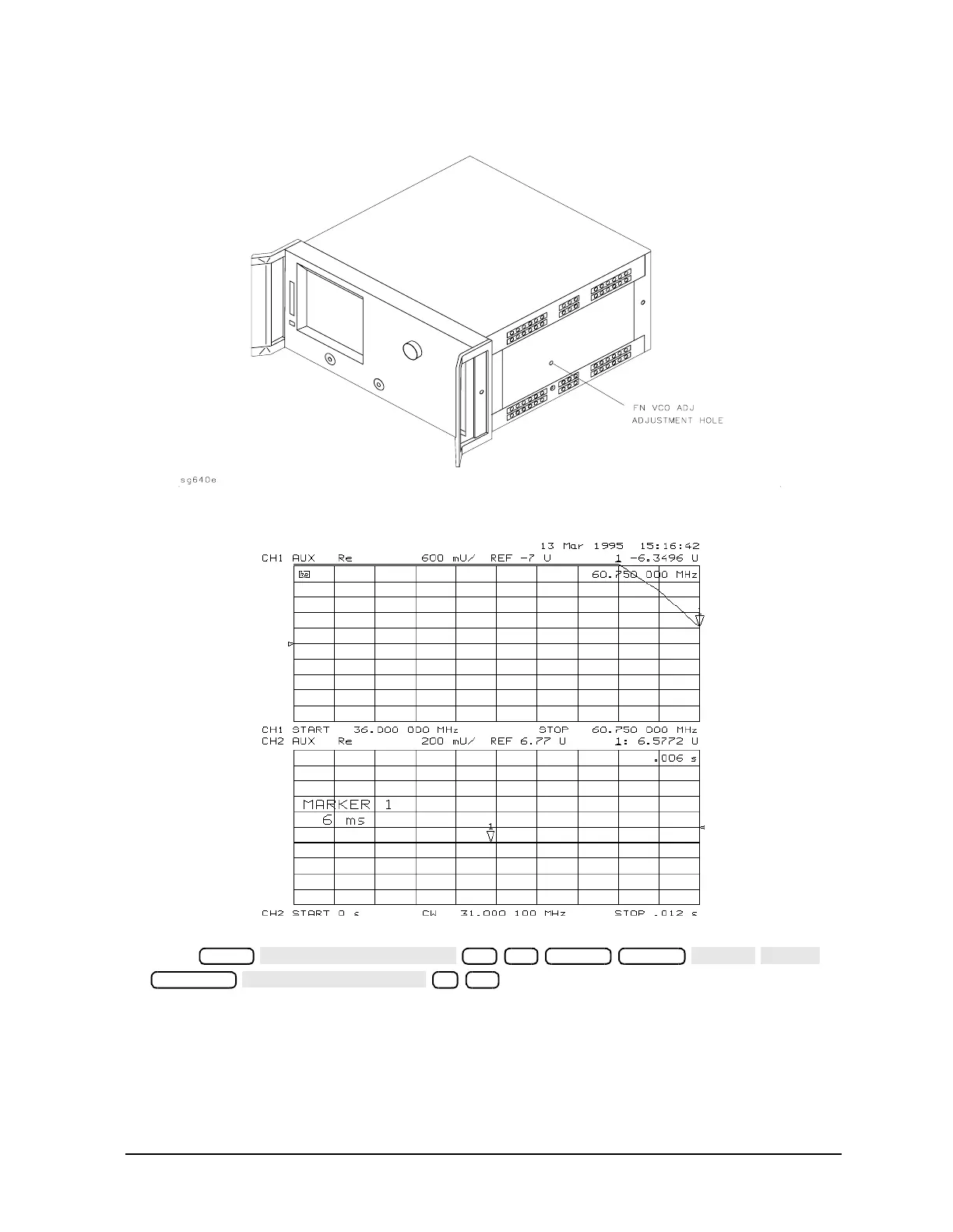

Figure 3-15 Location of the FN VCO TUNE Adjustment

Figure 3-16 Fractional-N Frequency Range Adjustment Display

9. Press

Meas

ANALOG IN Aux Input

29 x1 Marker Format

REAL

Scale Ref

REFERENCE VALUE
