2-20 Chapter 2
System Verification and Performance Tests
Agilent 8753ES System Verification and Performance Tests

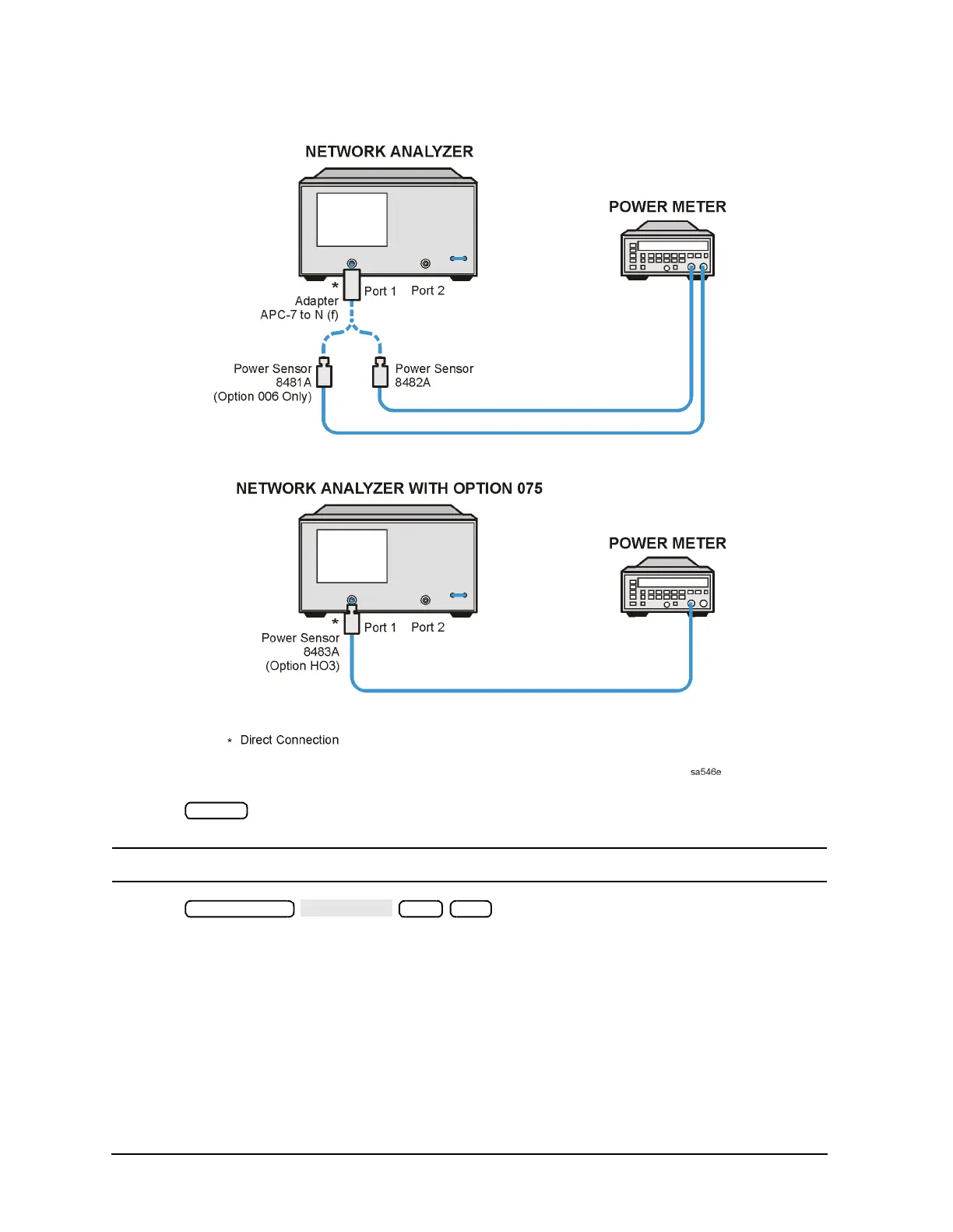

Figure 2-10 Test Port Output Power Level Accuracy Test Setup
3. Press .
NOTE The factory preset test port power is 0 dBm.
4. Press . Set the calibration factor on the power
meter for this CW frequency.
5. Write the power meter reading on the performance test record.
6. Repeat steps 4 and 5 for each CW frequency listed in the performance test record. For
analyzers with Option 006, use the HP/Agilent 8481A power sensor for all frequencies
above 3 GHz.
Preset
k/m
